Seger – adjustable long galvanised hinge M16 L-160 mm for gates and wicket gates
Leave feedback on the product

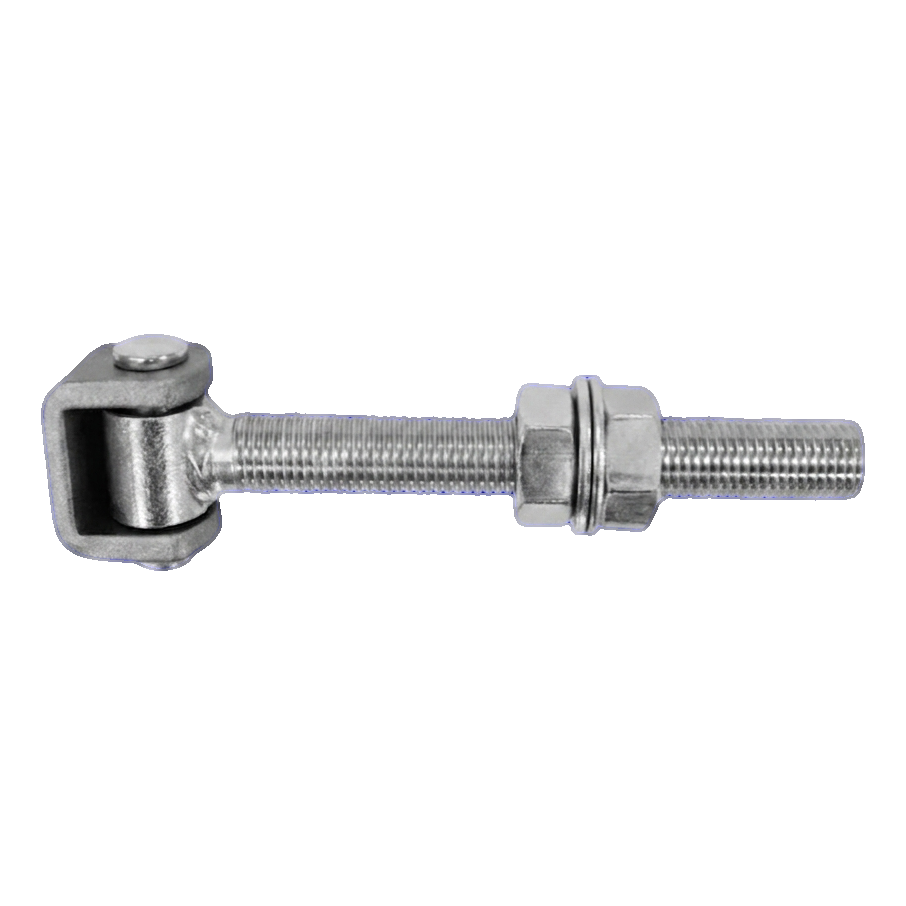

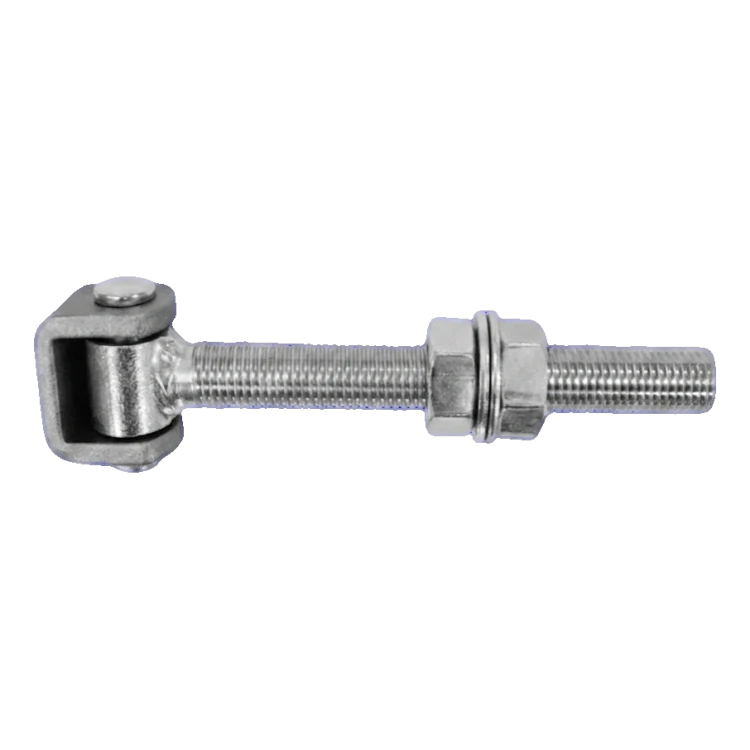

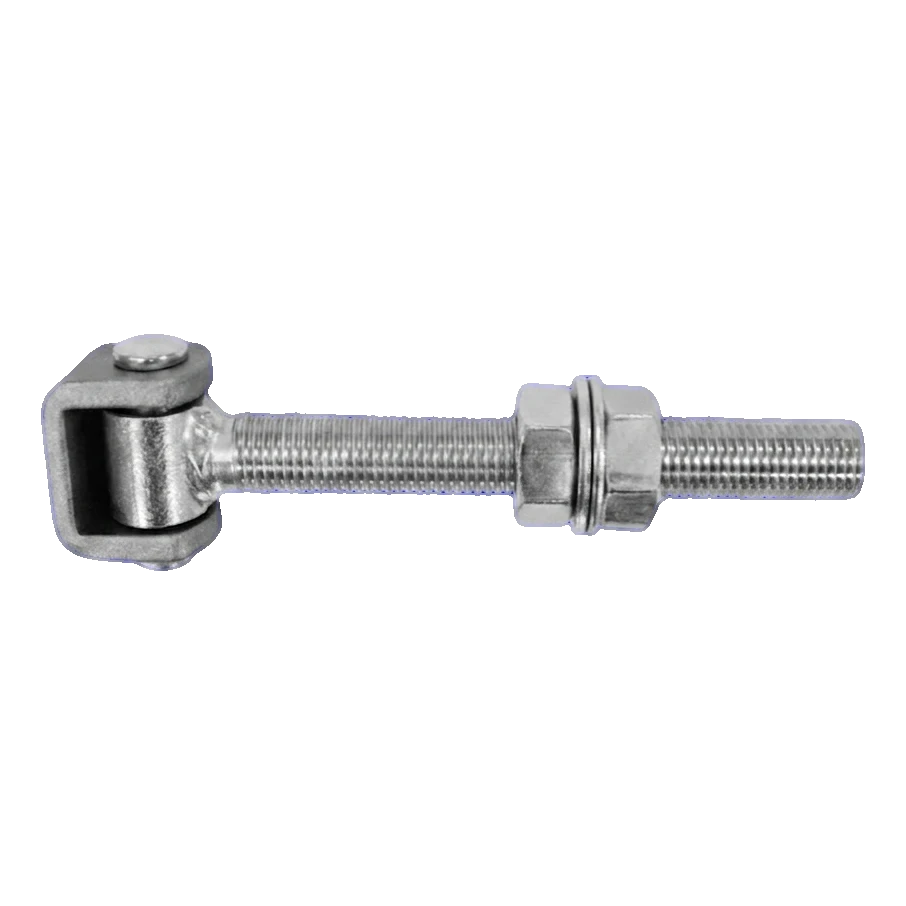

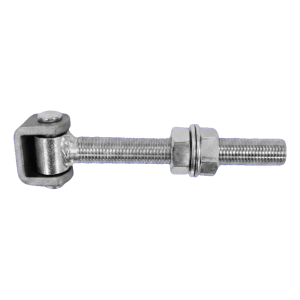

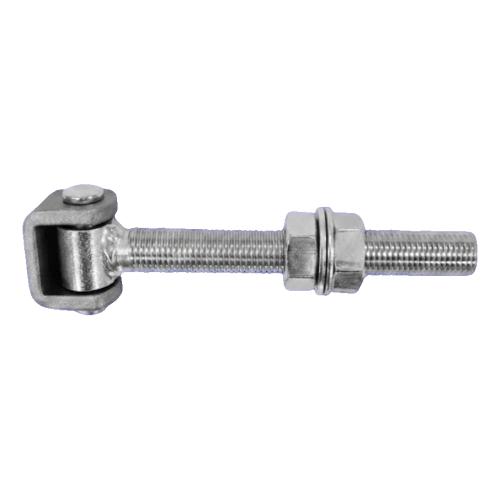

Seger adjustable long hinge M16 made from galvanised steel, shaft length 160 mm. Mounting bracket height 35 mm, width 25 mm, sheet thickness 5 mm. Pin diameter Ø12 mm. Weight 0.44 kg. For gates and wicket gates.
Product code: 001-349
Product features
[PIM] zawiasy #113
- Thread type M16
- Mounting Method Wall-Embedded
- Material Steel
Description
Seger – adjustable long galvanised hinge M16 L-160 mm for gates and wicket gates
Adjustable long hinge M16 by Seger is a durable, steel bolt-on hinge with threaded shaft M16 and working length 160 mm. Thanks to the galvanised surface finish, the product is suitable for outdoor installation — providing years of corrosion protection even in harsh weather conditions. This is a proven solution for installation companies carrying out the fitting of gates, wicket gates and fencing.
The hinge construction allows adjustment at any time after installation is complete — simply tighten or loosen the nut on the shaft. This is particularly important in cases where the gate leaf sags due to use or dimensional changes in metal components caused by extreme temperatures (metal contraction in winter). Installation companies can quickly correct the alignment without dismantling the entire structure.
Advantages for installers
- Galvanising — high, long-lasting corrosion resistance in outdoor conditions
- Post-installation adjustment — ability to tighten and loosen the nut without dismantling
- High mechanical strength and wear resistance
- Attractive silver finish — neat appearance on fencing

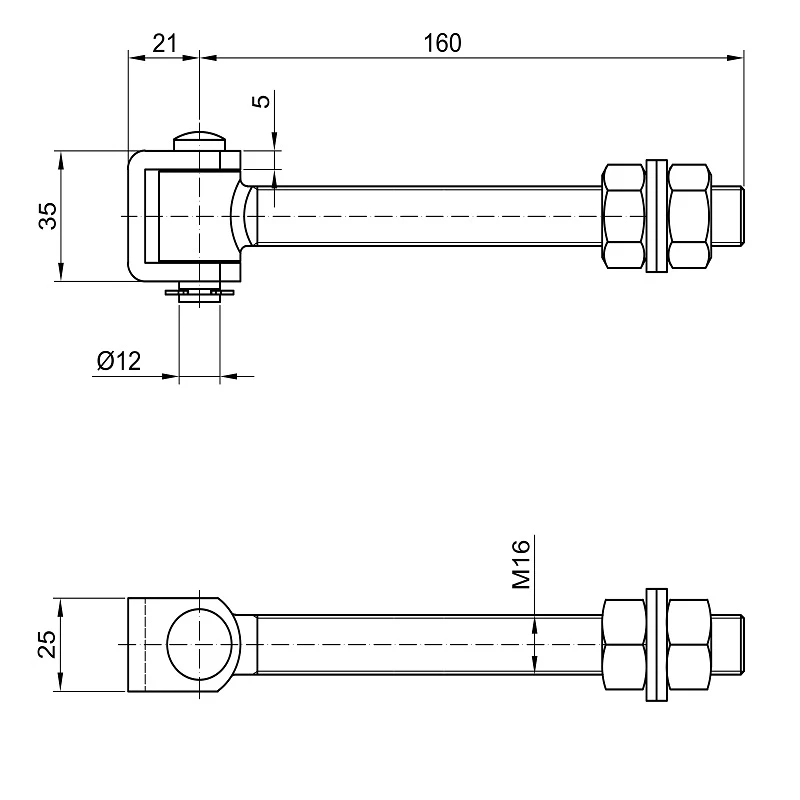

Dimensions and technical data
- Manufacturer: Seger
- Shaft thread: M16
- Shaft length (L): 160 mm
- Mounting bracket height (H): 35 mm
- Mounting bracket width: 25 mm
- Distance from pin centre to bracket edge: 21 mm
- Rotating pin diameter: Ø12 mm
- Mounting bracket sheet thickness: 5 mm
- Material: galvanised steel (bracket black)
- Weight: 0.44 kg
- EAN: 5901431941120
Seger adjustable long hinge M16 is a reliable mounting component for any team installing fencing, entrance gates and wicket gates. Thanks to its adjustability and durable galvanising, it minimises the number of service interventions — once installed, it serves for years.
