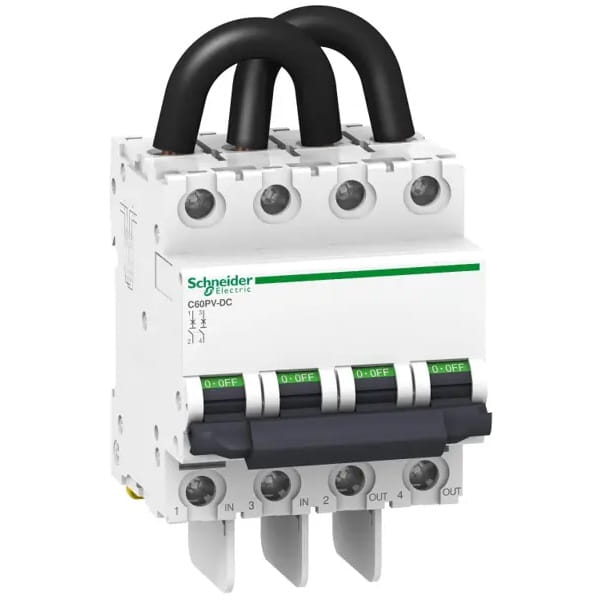

Schneider Electric PV Circuit Breaker 13A 2P 800V DC
Leave feedback on the product
2-pole 13A overcurrent circuit breaker for photovoltaic installations, 800V DC. Curve B characteristic, breaking capacity 3kA at 650V DC, 1.5kA at 800V DC. DIN rail mounting, insulation voltage 1000V DC.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] wylaczniki-nadpradowe-i-silnikowe #90
- Rated current [A] 13A
- Number of poles 2P
Description
Schneider Electric PV Circuit Breaker 13A 2P 800V DC
PV DC overcurrent circuit breaker B 13A 2P 800V C60PV-DC A9N61658 SCHNEIDER ELECTRIC
- number of poles: 2
- rated current [In]: 13 A
- rated operating voltage [Ue]: 800 V DC
- breaking capacity: 3 kA Icu at 650 V DC, 1.5 kA Icu at 800V DC
- rated insulation voltage: 1000 V DC
- rated impulse withstand voltage [Ui]: 6 kV
- mounting: DIN rail
SPECIFICATION
| Parameter | Value |
|---|---|
| Package weight | 0.531 kg |
| Elektroklub | yes |
| Series | C60PV-DC |
| Characteristic | B |
| Rated voltage [V] | 800 V DC |
| Rated current [A] | 13A |
| Breaking capacity [kA] | 6kA |
| Number of poles | 2 |
| Number of modules | 1 |
| Utilisation category | Category A in accordance with EN/IEC 60947-2 |
| Suitability for isolation | Yes, in accordance with EN/IEC 60947-2 |
| Control type | switch |
