Schneider Electric Overcurrent circuit breaker B 25A 1P 6kA Acti9

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 0.15 kg

Price / pcs.: £2.74 2.74

excl. shipping costs

Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!

* Packaging options:

Piece
Package: 50 pieces
Package: 100 pieces
Package: 200 pieces

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Rating:

Vendor: SCHNEIDER ELECTRIC

Product code: GPV-401-203

recommend to a friend

Description

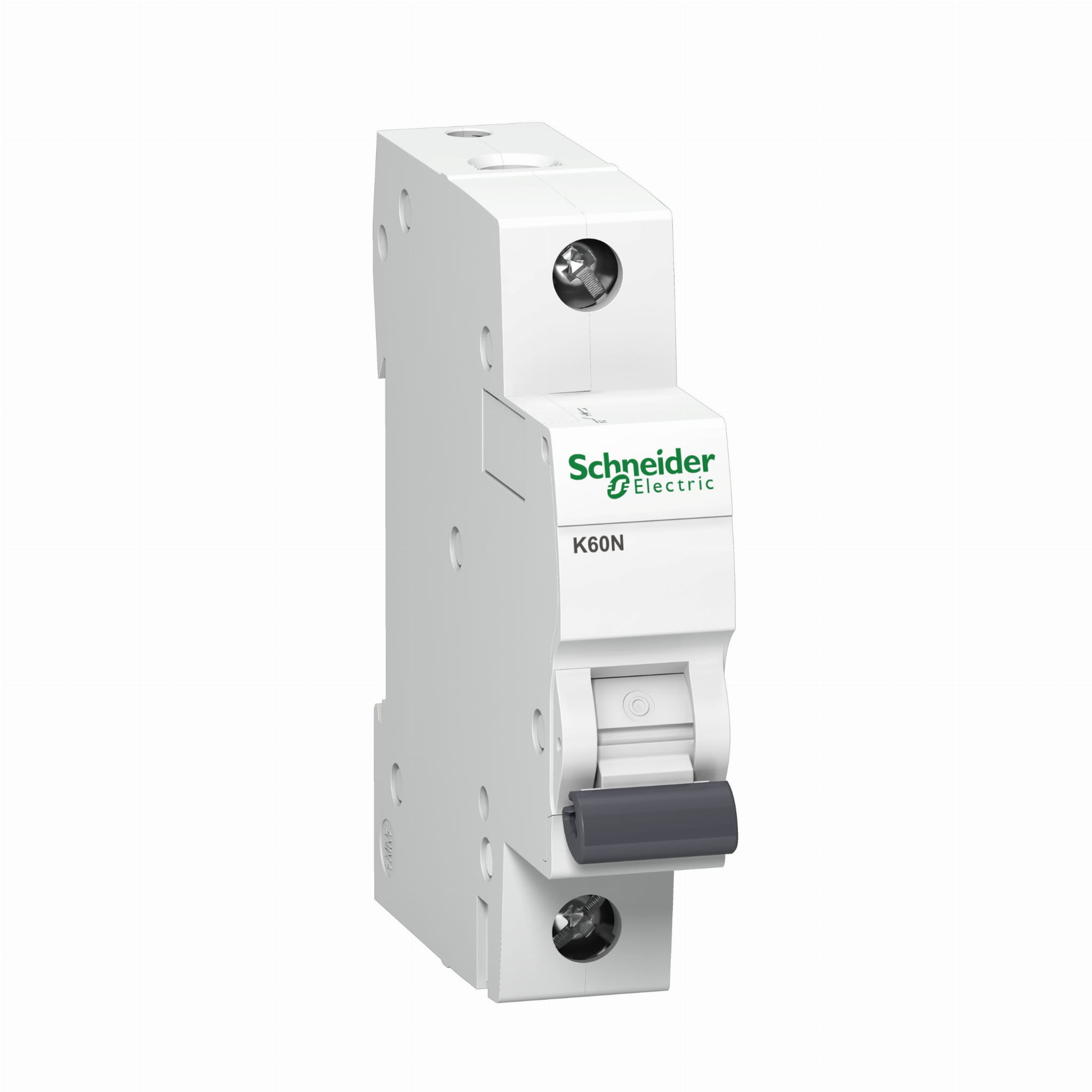

Schneider Electric Overcurrent circuit breaker B 25A 1P 6kA Acti9

- A9K01125899

Overcurrent circuit breaker B 25A 1P 6kA Acti9 A9K01125 by SCHNEIDER ELECTRIC is used to protect electrical installations from short circuits and overloads. It is ideal for protecting installations in residential buildings, forming with other devices a complete set of protection that meets the needs of residential construction (short-circuit strength of 6kA).

The switch is equipped with double crimped connection terminals from below (rail + wire), which provides a more secure connection. In addition, the apparatus has a snap contact, which ensures that the rate of contact closure is independent of the speed of maneuvering the apparatus lever.

SPECIFICATION

Manufacturer

SCHNEIDER ELECTRIC

Electro club

Yes

Series

K60N

Characteristics

Rated voltage [V]

440 V

Rated current [A]

25A

Frequency

50/60 Hz

Switching capacity [kA]

6kA

Pole description

Number of protected poles

Type of network

Alternating current (AC)

Trigger technology

Thermomagnetic

Breaking capacity

6000 A Icn according to EN/IEC 60898-1 -230 V alternating current (AC) 50/60 Hz

Rated insulation voltage [Ui]

440 V alternating current (AC) 50/60 Hz according to EN/IEC 60898-1

Rated withstand surge voltage [Uimp]

4 kV according to EN/IEC 60898-1

Mechanical durability

20 000 x

Electrical life

10 000 x

Degree of protection

IP20

Available Configuration

Product code

Catalog no.

EAN

Model

GPV-401-203

A9K01125/SCH

3606480478178

A9K01125

Files to download:

Technical data

Trip characteristic	B
Circuit breaker type	overcurrent
Rated current [A]	25A
Number of poles	1P
Breaking capacity [kA]	6 kA
Brand	SCHNEIDER ELECTRIC
