Schneider Electric Overcurrent circuit breaker B 10A 1P 6kA
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.12 kg
Price / pcs.:
excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
* - Field mandatory
Description

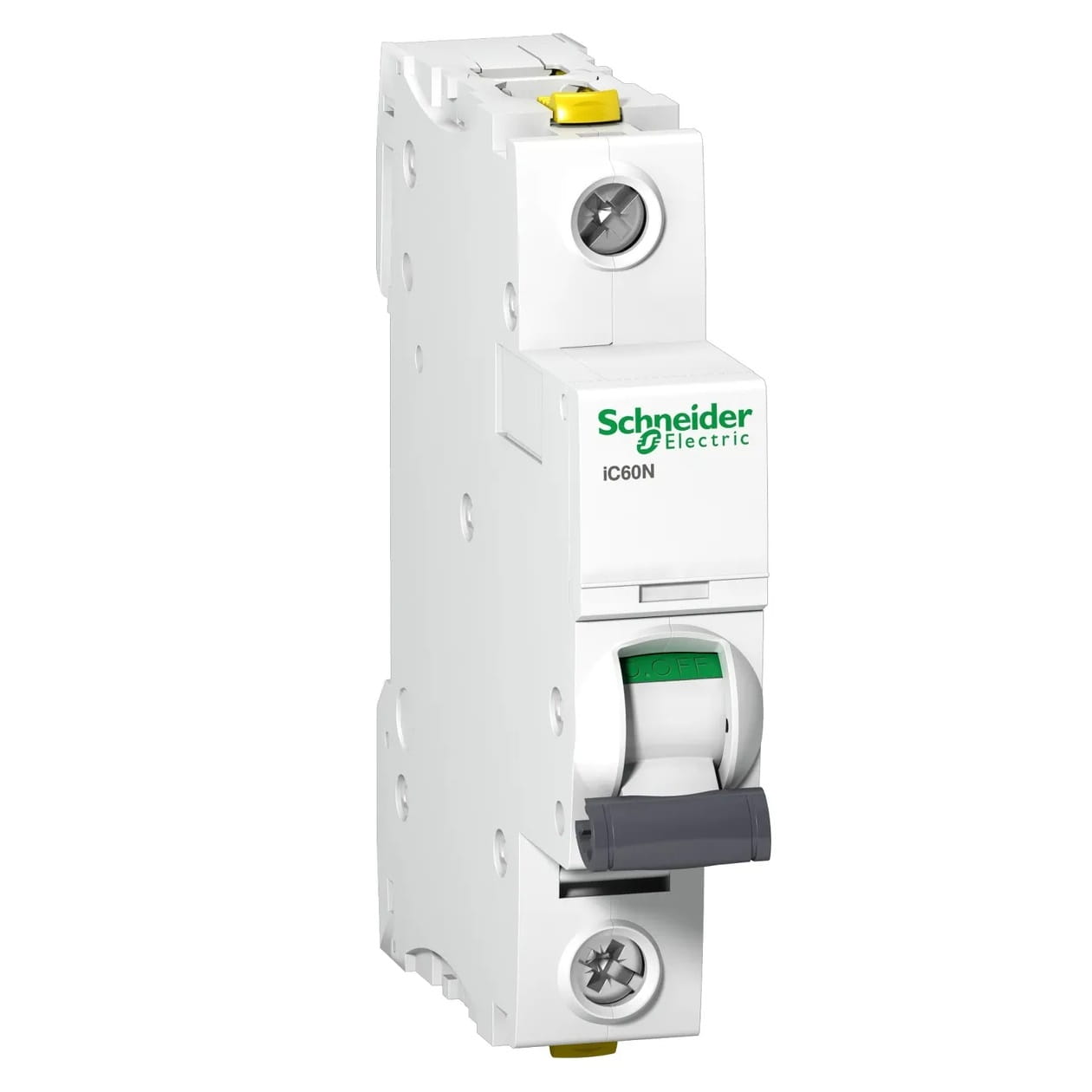

Schneider Electric Overcurrent circuit breaker B 10A 1P 6kA
Overcurrent circuit breaker B 10A 1P 6kA iC60N Acti9 Schneider Electric is a reliable protective device for electrical installations.
Single-pole, with a rated current of 10A, characteristic B and short-circuit capacity of 6kA, effectively protects against overloads and short circuits. With an IP20 protection rating, it ensures safe use and quick action in the event of circuit irregularities.
Key features and functions:
- Circuit protection: Protects against the effects of current flow in excess of the permitted current and against short circuits.
- Automatic disconnection: Immediate cut-off of the power supply if an abnormality is detected.
- Characteristic B: Faster tripping compared to characteristic C, ideal for lighting and socket circuits.
- Safety: IP20 rating protects against access to hazardous parts.
Applications:
- Residential electrical installations
- Commercial and industrial buildings
- Protection of lighting circuits
- Protection of electrical sockets
Advantages:
- Reliability: High-quality workmanship guarantees long-lasting protection.
- Speed of operation: The B characteristic ensures fast response to overloads and short circuits.
- Ease of installation: The standard design allows quick installation in switchboards.
- Versatility: Suitable for a wide range of electrical applications.
- Durability: High mechanical and electrical resistance.
- Expandable: Compatible with additional accessories of the iC60 series.
SPECIFICATION
Manufacturer
SCHNEIDER ELECTRIC
Electroclub
Yes
Series
ACTI9
Characteristics
B
Rated current [A]
10A
Frequency
50/60 Hz
Mounting
DIN rail
Number of poles
1
Width in modules 9 mm
2
Rated insulation voltage
500 V
Rated withstand surge voltage
6 kV
Control type
Lever
Width in modules 9 mm
2
Degree of protection
IP20
Colour
White
Dimensions
91 mm x 18 mm x 78,5 mm
Available Configuration
Technical data
| Trip characteristic | B |
| Circuit breaker type | overcurrent |
| Rated current [A] | 10A |
| Number of poles | 1P |
| Breaking capacity [kA] | 6 kA |
| Brand | SCHNEIDER ELECTRIC |
