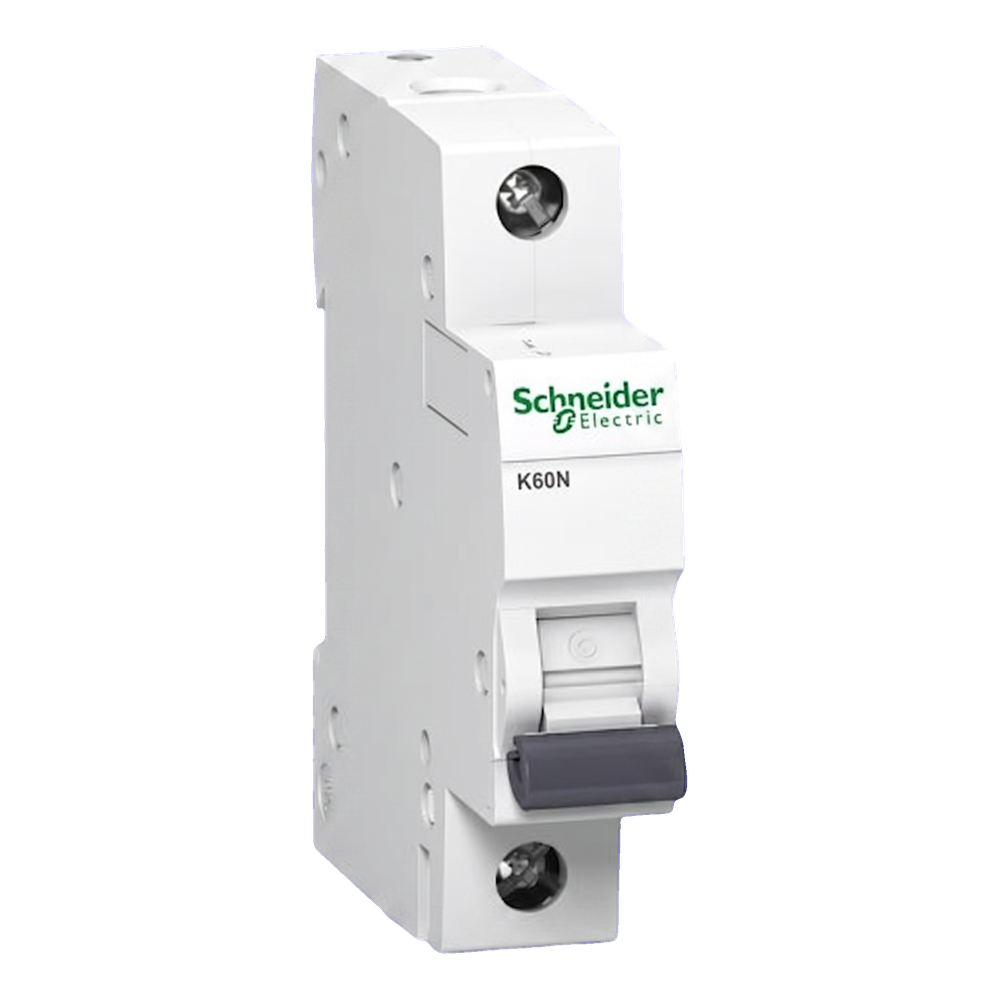

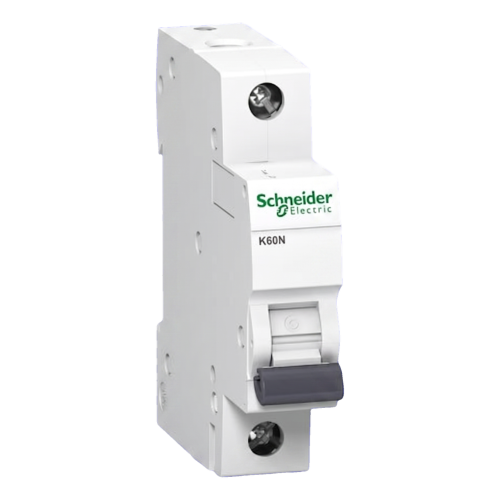

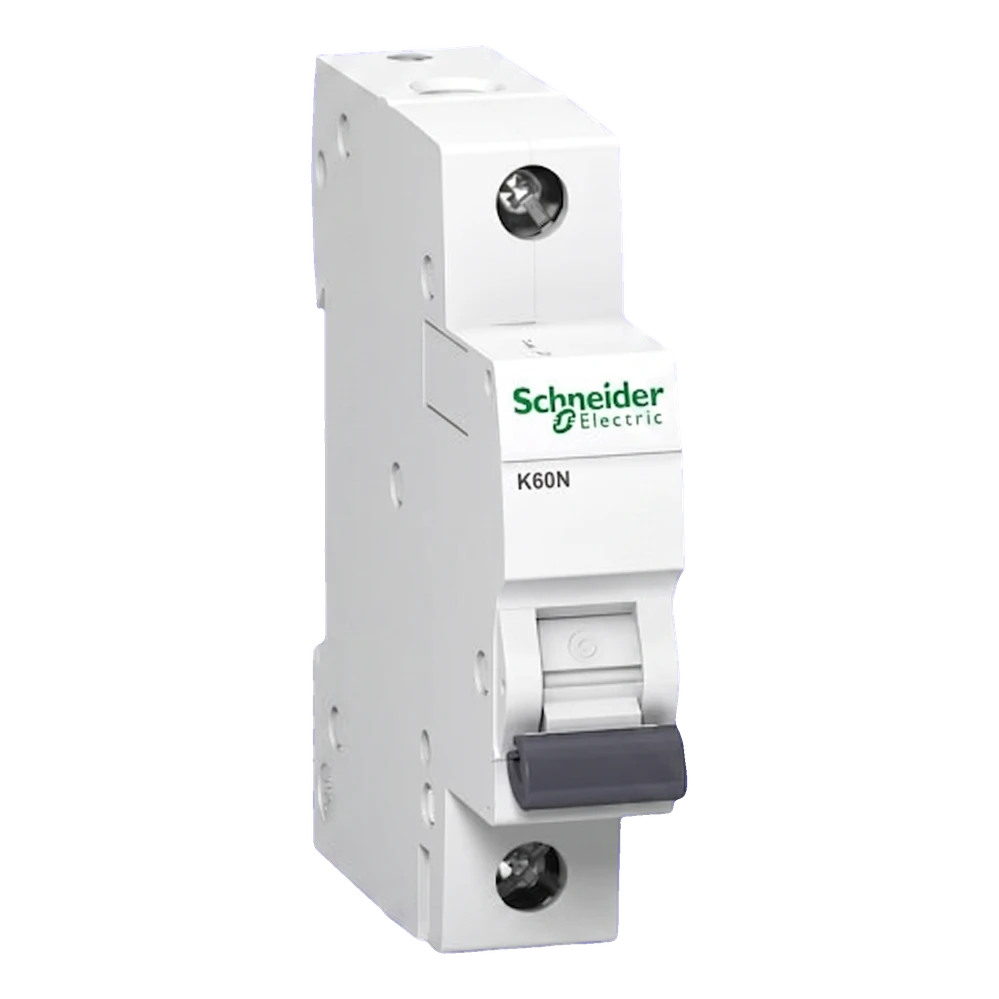

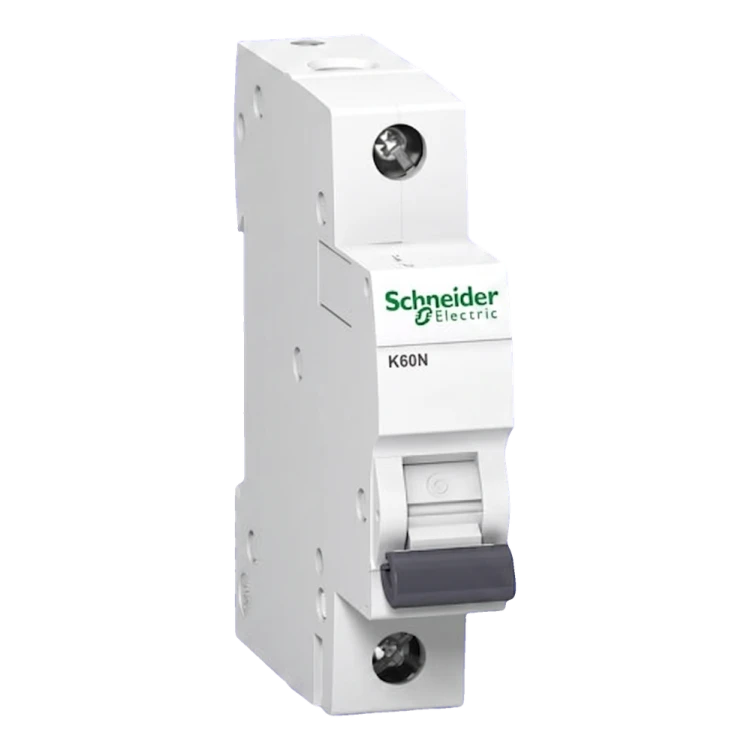

Schneider Electric K60N-C25-1 – 1P 25A Type C 6kA Circuit Breaker Acti9
Schneider Electric K60N-C25-1 is a single-pole circuit breaker from the Acti9 range, designed to protect electrical circuits against the effects of short circuits and overloads. Thanks to its C trip curve, it is ideally suited for installations supplying equipment with medium starting currents — motors, transformers or larger domestic loads. Rated current of 25 A and breaking capacity of 6 kA (Icn in accordance with EN/IEC 60898-1) ensure effective protection in residential buildings and small commercial premises. The device is equipped with a thermal-magnetic trip and a snap-action contact, guaranteeing fast contact closing independent of the operator. Double, ribbed terminals allow simultaneous connection of a busbar and a cable, speeding up installation in the switchboard and increasing connection reliability. The single-pole, single-module design mounted on a DIN rail allows optimal use of space in the switchboard. The device is compatible with a wide range of additional accessories from the Schneider Electric Acti9 system.
Benefits for the installer
- Double ribbed terminals — simultaneous connection of busbar and cable without additional connectors
- Snap-action contact ensures reliable and repeatable circuit closing regardless of how the lever is operated
- Curve C suited to circuits with equipment having medium starting currents (motors, transformers)
- Compact single-module design — saves space in the switchboard
- Full compatibility with Schneider Electric Acti9 system accessories
Files to download:
Technical data
| Trip characteristic | C |
| Circuit breaker type | overcurrent |
| Rated current [A] | 25A |
| Number of poles | 1P |
| Breaking capacity [kA] | 6 kA |
| Brand | SCHNEIDER ELECTRIC |
