Schneider Electric Circuit Breaker B 16A 3P 6kA Acti9
Leave feedback on the product
3-pole miniature circuit breaker with 16A rated current and B-type tripping characteristic. Breaking capacity 6kA, thermomagnetic technology. DIN rail mounting, width 6 modules. Compliant with IEC 60898-1 and EN 60947-2 standards.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] wylaczniki-nadpradowe-i-silnikowe #90
- Trip characteristic B
- Circuit breaker type overcurrent
- Rated current [A] 16A
- Number of poles 3P
- Breaking capacity [kA] 6 kA
- Brand SCHNEIDER ELECTRIC
Description

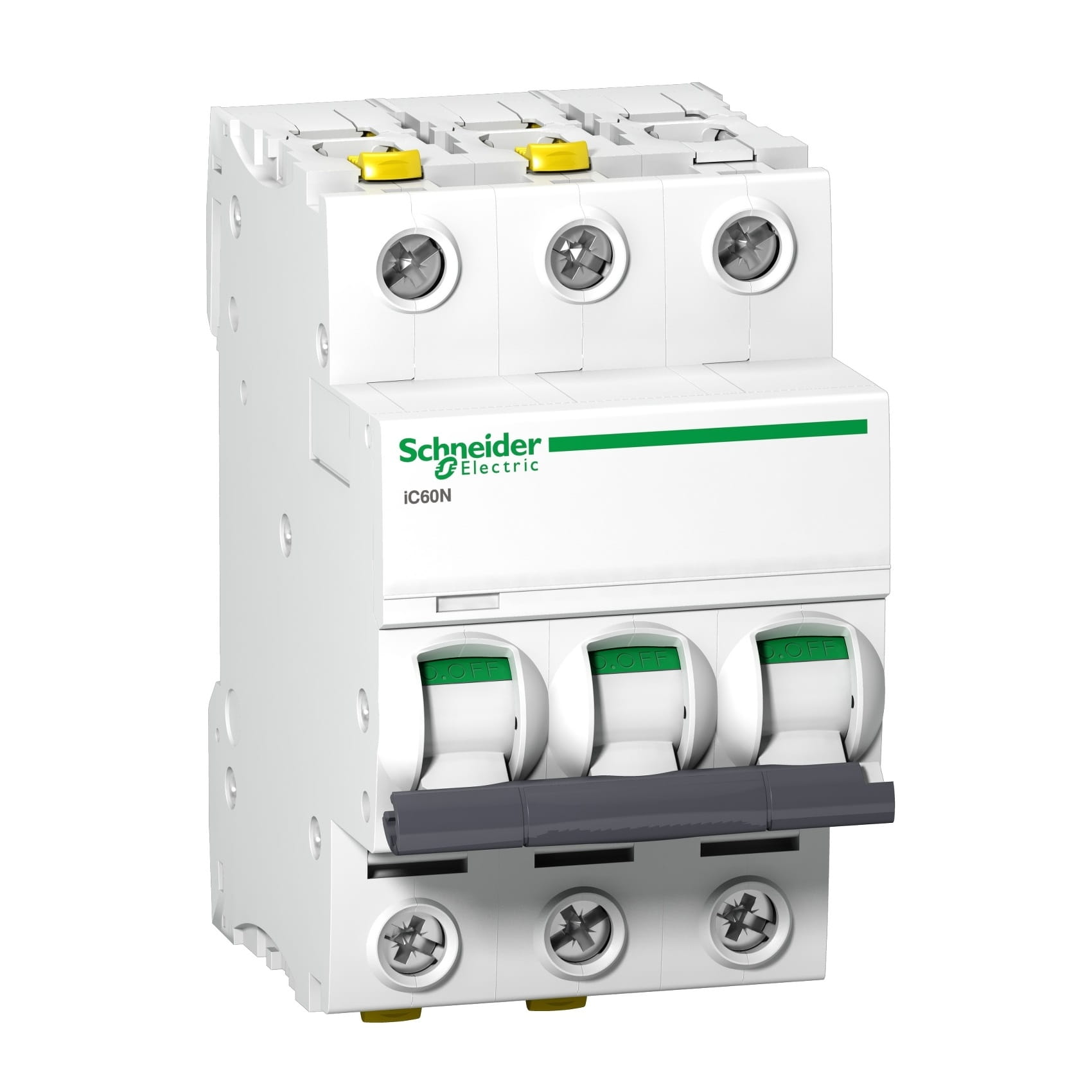

Schneider Electric Miniature Circuit Breaker B 16A 3P 6kA Acti9
Miniature circuit breaker B 16A 3P 6kA iC60N-B16-3 Acti9 A9F03316 by SCHNEIDER ELECTRIC effectively protects electrical installations against overloads and short circuits.
It is ideal for protecting electrical installations in residential buildings and similar facilities, integrating with other devices into a complete protection set tailored to the needs of residential construction. It features a breaking capacity of 6kA.
Specification
| Parameter | Value |
|---|---|
| Device application | Distribution |
| Product range | Acti 9 |
| Product name | Acti 9 iC60 |
| Product or component type | Miniature circuit breaker |
| Device short name | IC60N |
| Pole description | 3P |
| Number of protected poles | 3 |
| [In] rated current | 16 A |
| Network type | [[Direct current (DC) Alternating current (AC)]] |
| Trip unit technology | Thermal-magnetic |
| Curve code | B |
| Utilisation category | [[Category A in accordance with EN 60898-1 Category A in accordance with IEC 60898-1]] |
| Suitability for isolation | [[Yes in accordance with EN 60898-1 Yes in accordance with EN 60947-2 Yes in accordance with IEC 60898-1 Yes in accordance with IEC 60947-2]] |
| Standards | [[IEC 60898-1 EN 60947-2 IEC 60947-2 EN 60898-1]] |
Complementary parameters
| Parameter | Value |
|---|---|
| Network frequency | 50/60 Hz |
| Magnetic trip limit | 4 x In +/- 20 % |
| Breaking capacity class | [[3 in accordance with EN 60898-1 3 in accordance with IEC 60898-1]] |
| Rated insulation voltage [Ui] | [[500 V alternating current (AC) 50/60 Hz in accordance with EN 60947-2 500 V alternating current (AC) 50/60 Hz in accordance with IEC 60947-2]] |
| Rated impulse withstand voltage [Uimp] | [[6 kV in accordance with EN 60947-2 6 kV in accordance with IEC 60947-2]] |
| Contact position indication | Yes |
| Control type | Toggle |
| Local signalling | Trip indicator |
| Mounting support | DIN rail |
| Width in 9 mm modules | 6 |
| Height | 91 mm |
| Width | 54 mm |
| Depth | 78.5 mm |
| Product weight | 0.375 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections - terminals | [[Double terminal (top or bottom) 1…25 mm² rigid Double terminal (top or bottom) 1…16 mm² flexible]] |
| Stripping length | 14 mm for top or bottom connection |
| Tightening torque | 2 N.m top or bottom |
| Residual current protection | Separate block |
Operating environment
| Parameter | Value |
|---|---|
| IP protection degree | [[IP20 in accordance with IEC 60529 IP20 in accordance with EN 60529]] |
| Pollution degree | 3 |
| Overvoltage category | IV |
| Tropicalisation | 2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…85 °C |
Sustainable offer
| Parameter | Value |
|---|---|
| Sustainable offer status | Green Premium product |
| REACh SVHC free | Yes |
| EU RoHS Directive | Compliant |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| China RoHS regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| WEEE | The product must be disposed of in accordance with applicable European Union waste regulations and must not be discarded with ordinary waste. |
