SE1300 ballast system for vertical mounting of photovoltaic panels on flat roof - 10 pcs
Leave feedback on the product
Prefabricated concrete ballast block in L-shape for vertical mounting of PV panels on flat roofs. Concrete C40/50, installation without drilling, modular spacing 1300 mm. Stable anchoring without damaging the roof covering.
Product code: GPV-600-02
Description

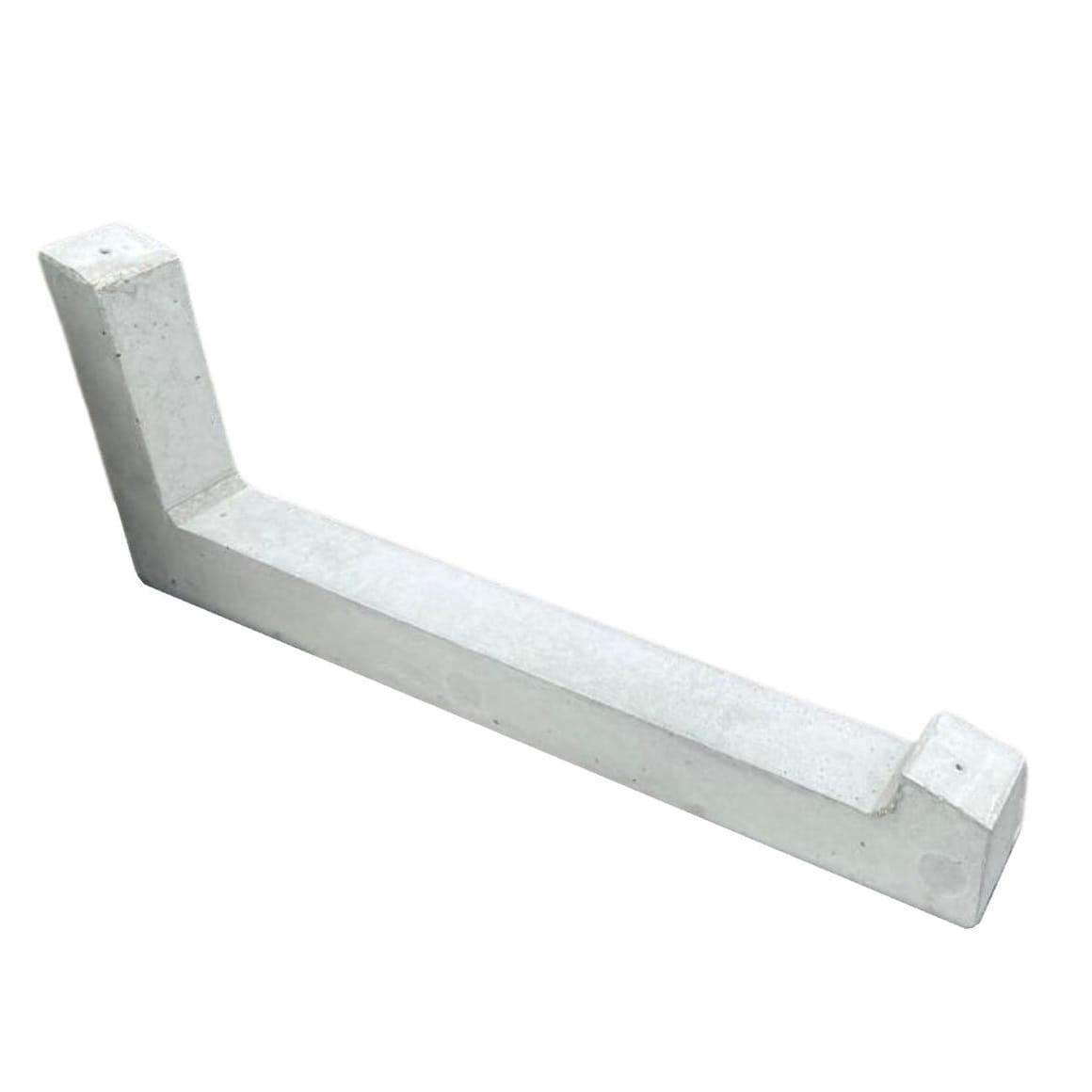

Concrete ballast block for vertical PV mounting on flat roofs
GPV-600-02 ballast block is a prefabricated L-shaped concrete element designed for vertical mounting of photovoltaic panels on flat roofs. An ideal solution for installation companies requiring fast, secure mounting without penetrating the roof structure.
Non-penetrative installation – ballast blocks eliminate the need to breach the roof covering. The weight of the concrete ensures stable anchoring of panels even in strong winds, protecting the installation from mechanical damage.

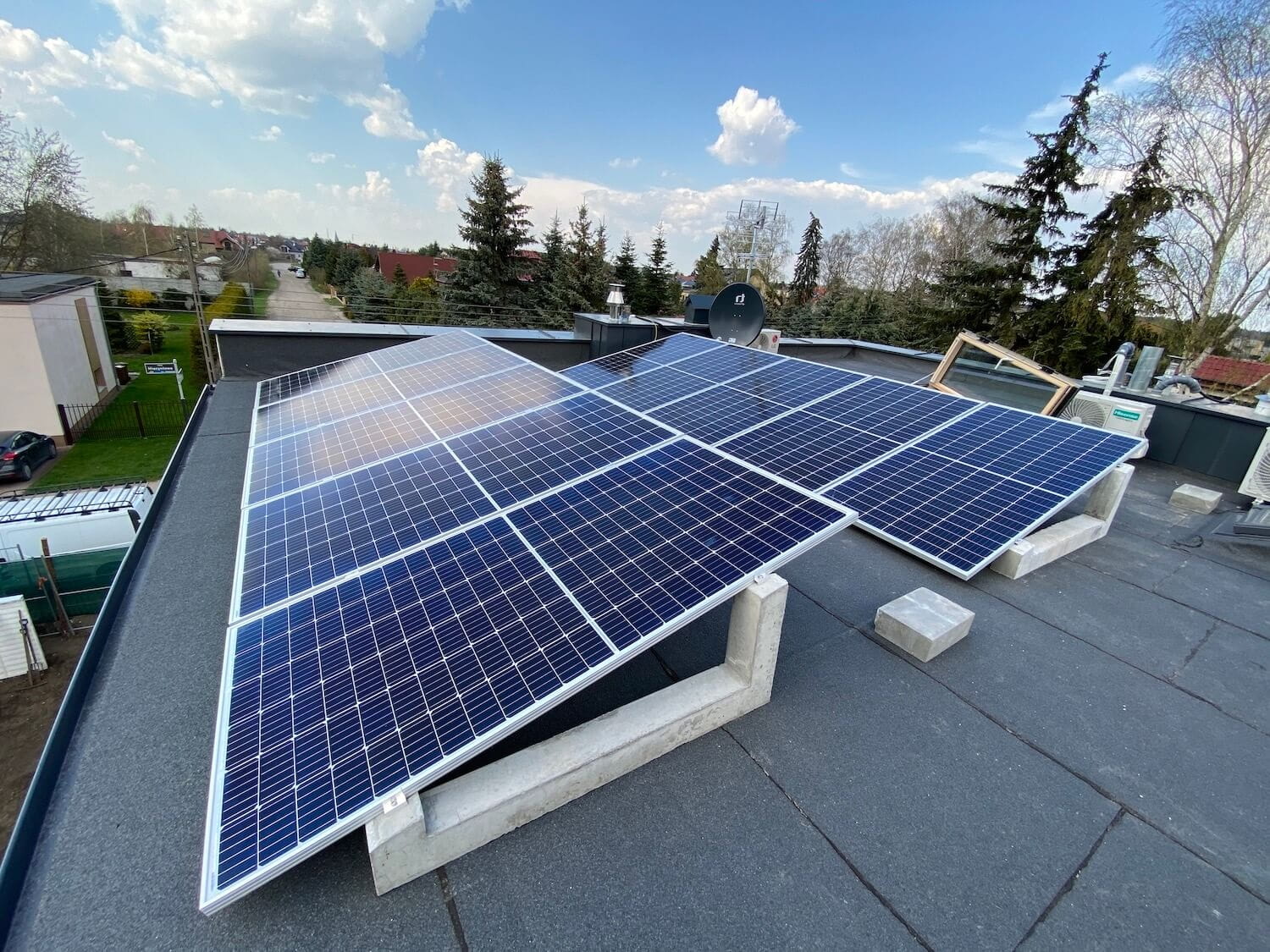

Vertical panel orientation allows for a significant increase in installation capacity on the same roof area compared to horizontal layout. The system enables mounting of both standard modules and high-power panels, resulting in optimal use of available space.
Why choose a ballast system?
- No roof penetration: you maintain full waterproofing and roof covering warranty
- Quick installation: prefabricated blocks allow for efficient installation without specialist equipment
- Versatility: ideal solution for roofs where drilling is undesirable or impossible
- Easy reconfiguration: the installation can be easily dismantled or relocated if needed
Technical specifications
- Material: C40/50 grade concrete – high strength and durability
- Construction: L-shaped design ensuring optimal load distribution

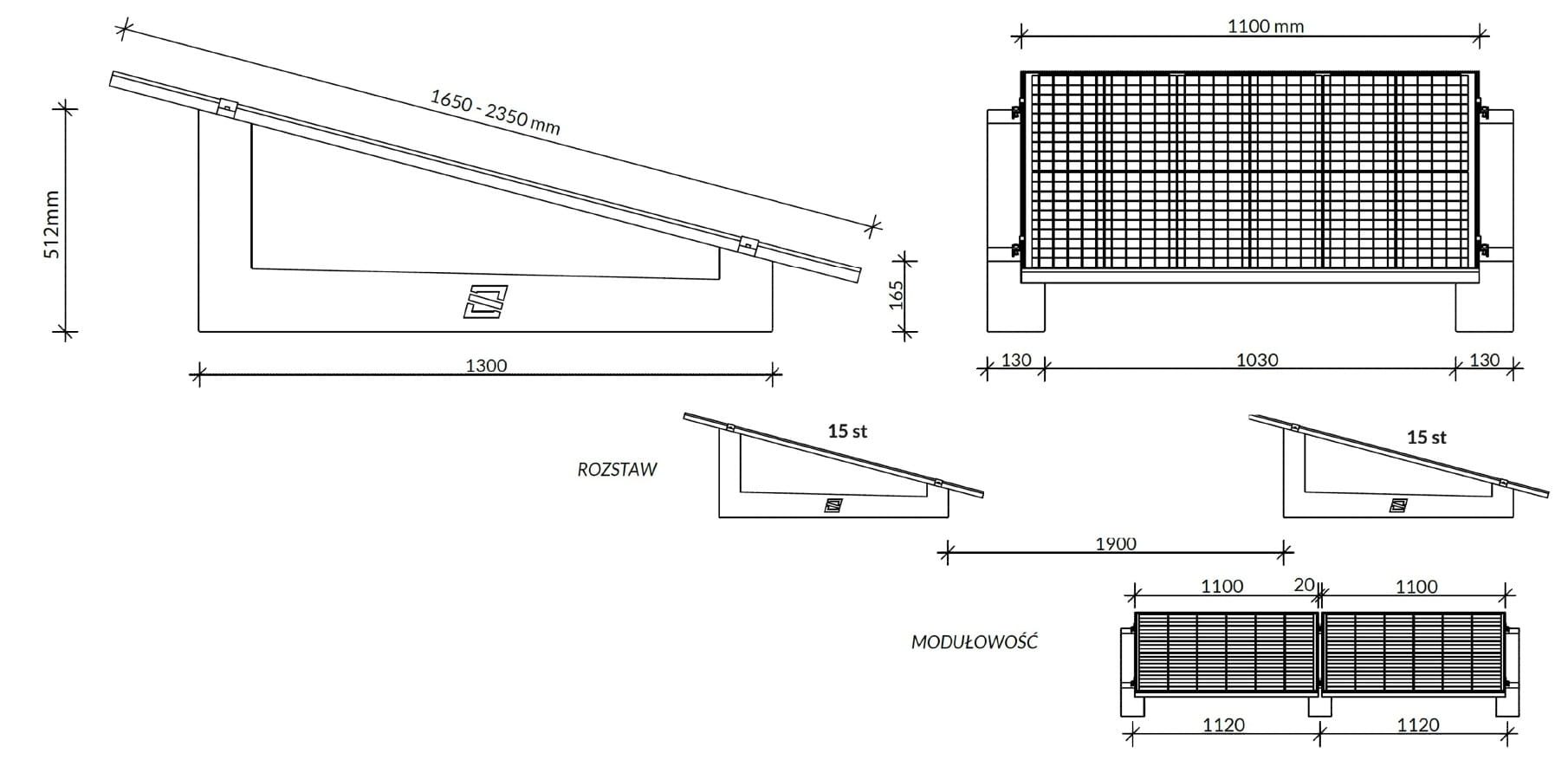

- Modularity: configurable for different panel sizes (1300 mm spacing)
- Standards: design compliant with stringent construction standards for PV installations
Durability and low maintenance – ballast systems are designed for years of trouble-free operation. High-grade concrete guarantees resistance to weather conditions, whilst the construction enables easy panel cleaning and minimal maintenance throughout the service life.
