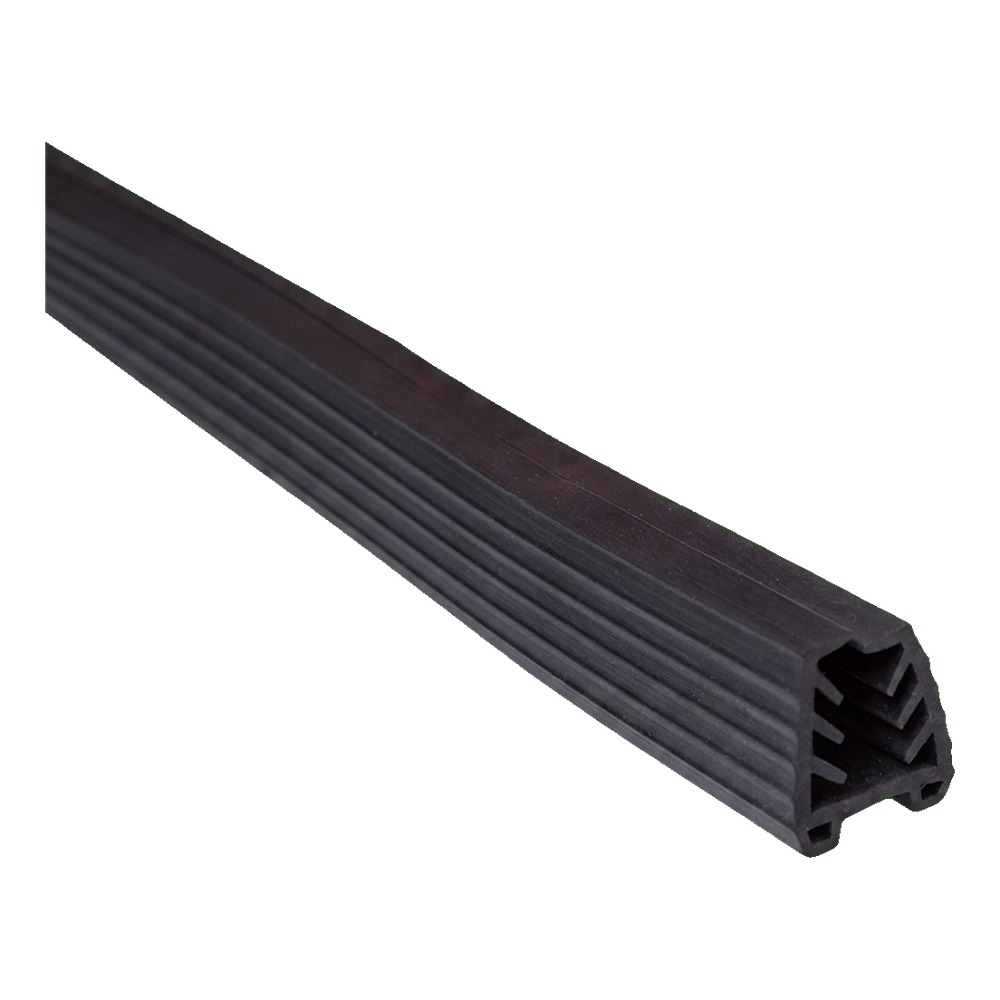

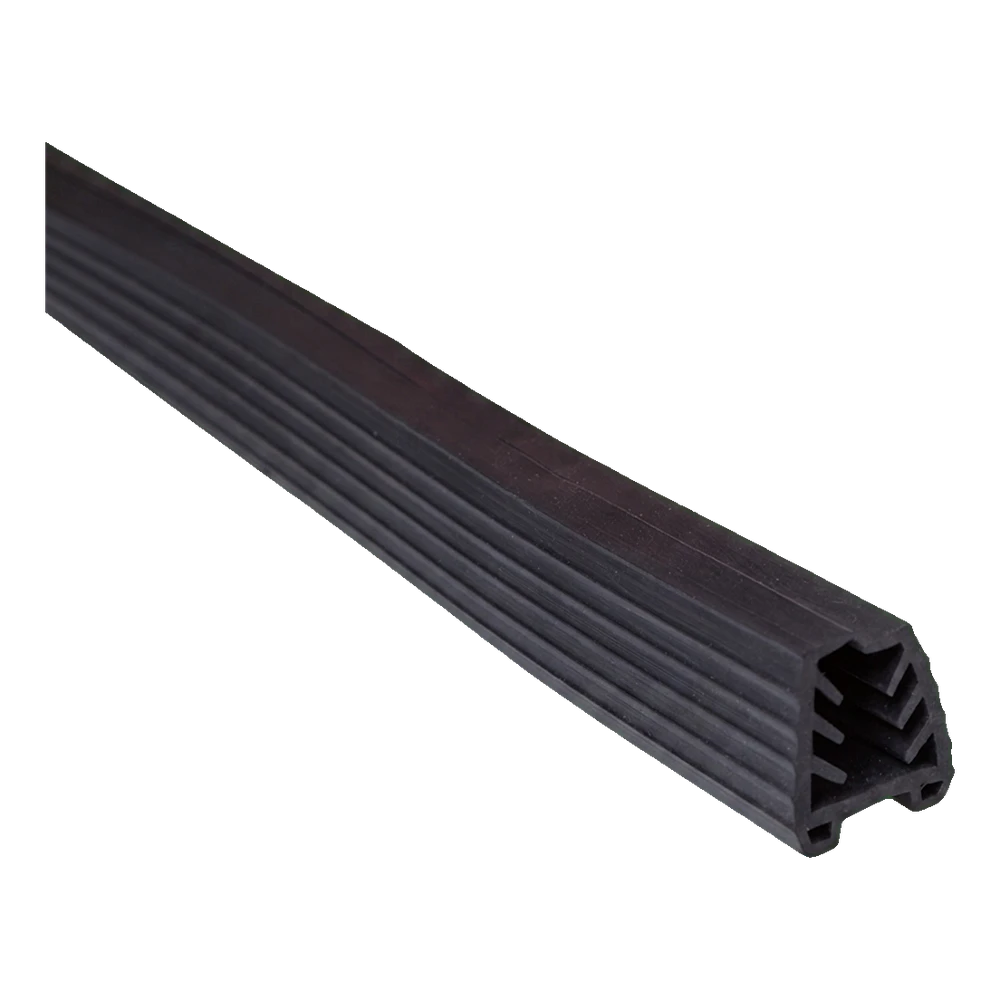

Rubber seal for glass clamp handrail 11.5–13.5 mm, 24x24 mm / 5 m
Description
Rubber seal for glass clamp handrail 11.5–13.5 mm, 24x24 mm / 5 m
Compression rubber for clamp handrail designed for glass balustrades. The seal serves to securely immobilise and secure glass panels with thickness 11.5–13.5 mm inside the balustrade handrail. Thanks to specially designed profile with internal channels it provides uniform compression along the entire length, eliminating vibrations and clearances of the glass panel.
The seal is installed by bonding using anaerobic adhesive inside the handrail. This method of application guarantees a permanent and externally invisible connection that requires no additional fastening elements. The profile is supplied in 5 m lengths, allowing for convenient adaptation to handrail length directly on site — simply cut to size and bond.
Technical parameters
- Application: clamp handrail for glass in glass balustrades
- Glass thickness: 11.5–13.5 mm
- Cross-section dimensions: 24 × 24 mm
- Length of section: 5000 mm (5 m)
- Installation: bonding with anaerobic adhesive
- Colour: black
- Weight: 1.1 kg
Application and benefits for the installer
The seal is a key element in the installation of glass balustrades with clamp handrail. Properly bonded compression rubber ensures quiet and stable operation of the balustrade — the glass does not move in the handrail even under wind load or user contact. The 5 m length minimises the number of joints on long spans, which translates into finishing aesthetics and installation speed.
Technical data
| Material | Plastic |
