Rubber seal for clamp-on glass handrail 8–11 mm, 24×24 mm, black
0
Description

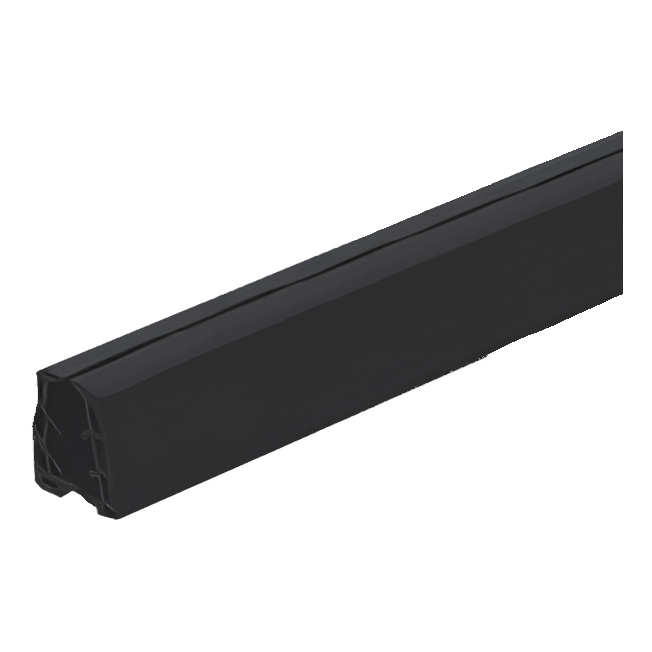

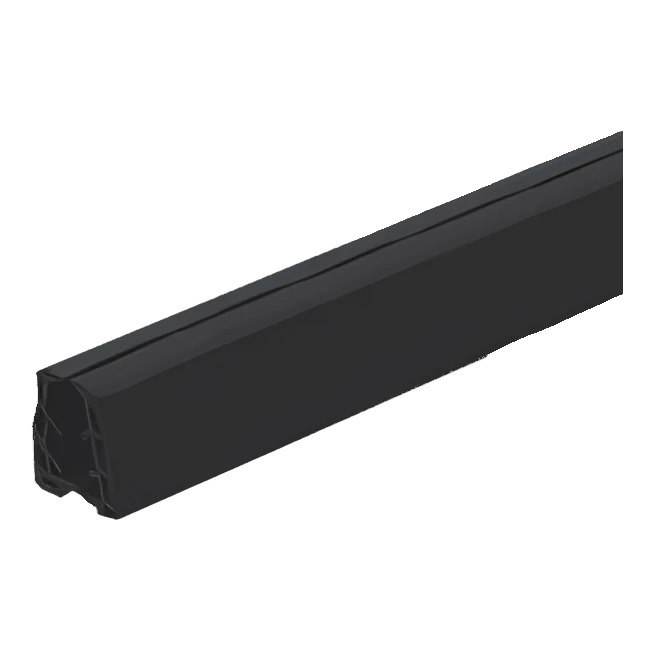

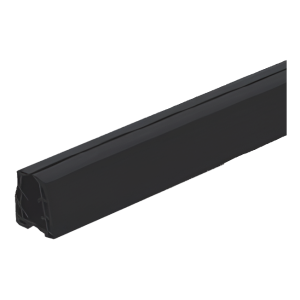

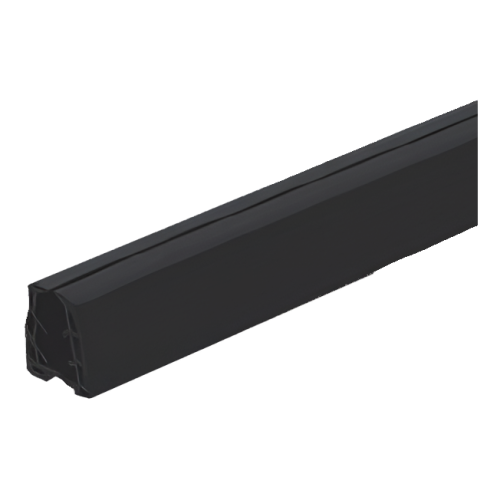

Rubber seal for clamp-on glass handrail 8–11 mm, 24×24 mm, black
Compression rubber for clamp-on handrail designed for glass balustrades. The seal is installed inside the handrail to ensure secure immobilisation and protection of glass panels with thickness from 8 to 11 mm. The internal profile structure with chambers and clamping lamellae provides elastic yet stable compression – glass is securely held without risk of edge damage.
The seal is glued inside the handrail along its entire length. Supplied in sections of 2500 mm (2.5 m) length, allowing convenient adaptation to standard balustrade components. The profile in black colour discretely complements typical aluminium and steel handrails used in all-glass balustrades.
Technical specifications
- Application: clamp-on glass handrail in glass balustrades
- Glass thickness: 8–11 mm
- Profile cross-section (U): 24 × 24 mm
- Section length (L): 2500 mm
- Material: rubber
- Colour: black
- Weight: 0.7 kg
- Installation: gluing inside the handrail
- EAN: 5901289672351

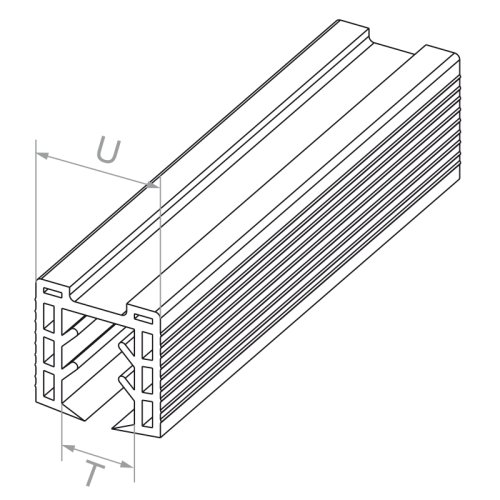

Profile construction
The seal profile has internal side chambers and a system of lamellar clamps that ensure uniform compression across the entire contact surface with glass. This allows the panel to be stably held even with minor thickness variations in the 8–11 mm range. The construction minimises the risk of vibrations and play, resulting in quiet and durable balustrade operation.
Technical data
| Material | Plastic |
