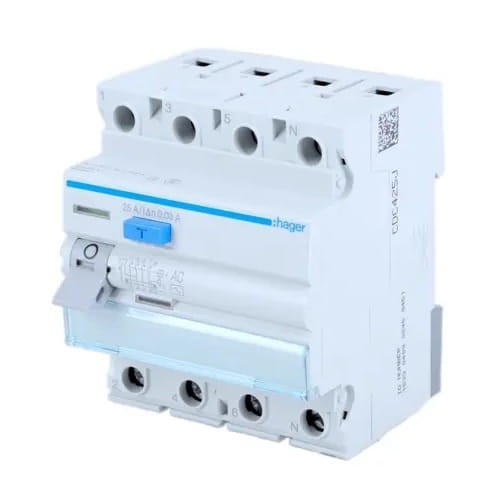

Residual current circuit breaker 3P+N 25A 30mA type AC CDC425J HAGER
Residual current circuit breaker 3P+N 25A 30mA type AC CDC425J by HAGER is an electrical protective device that disconnects a circuit when it detects that the current flowing out of the circuit is not equal to the incoming current. The CDC425J differential provides protection against electric shock from both indirect and direct contact. In addition, it reduces the effects of equipment damage, including the risk of fire, thus providing increased safety for electrical installations.
Key Features:
- A sturdy metal bracket provides secure mounting on a mounting rail,
- contact protection (IP2x) is ensured even when using phase rails,
- terminal cover prevents misplacement of the wire,
- differential current indicator makes it possible to immediately identify whether the cause of tripping was a differential current or a manual shutdown,
- the actual contact position indicator for residual and combination circuit breakers illustrates whether the contacts are mechanically open,
- insulated screwdrivers allow safe live operation without damaging the housing,
- sealing capability for special applications,
- the devices protect cables, property and human life from the dangerous effects of electric current,
- all devices meet the requirements of the Polish Standards and the conditions necessary for marking them with the CE mark, and are characterized by easy and safe installation,
- the possibility of expanding existing installations thanks to 100% compatibility with the previous series.
Specifications
Series and type
Residual current circuit breaker 3P+N 25A 30mA type AC CDC425J HAGER
Number of poles
4 P
Mounting
DIN rail
Rated switching voltage Ue (AC)
230 / 400 V
Rated frequency
50 Hz
Rated insulation voltage Ui
500 V
Rated withstand surge voltage Uimp
4 kV
Rated differential current dl
30 mA
Rated discharge current (In 8/20µs)
0.25 kA
Rated switching capacity Im
1.5 kA
Rated conditional short-circuit current Inc in accordance with PN-EN 61008-1
6 kA
Total power losses for rated current
4.5 W
Power losses per pole for rated current
2 W
Short-circuit
No
Electrical endurance (number of cycles)
2000 x
Mechanical strength (number of cycles)
4000 x
Tightening torque
2.8 Nm
Cross section of flexible wire (wire) in the terminal
16 mm²
Cross section of rigid wire (wire) in the terminal
25 mm²
Type of connection
With screw
Standard
EN 61008-1
Compliant with
European RoHs Directive
Degree of protection
IP20
Type of residual current circuit breaker
AC
Dimensions
70 x 83 x 70 mm
Available Configuration
Technical data
| Circuit breaker type | residual current |
| Number of poles | 3P+N |
| Rated current [A] | 25A |
| Residual Current [mA] | 30 mA |
| Trip characteristic | AC |
| Brand | HAGER |
