SCHNEIDER ELECTRIC

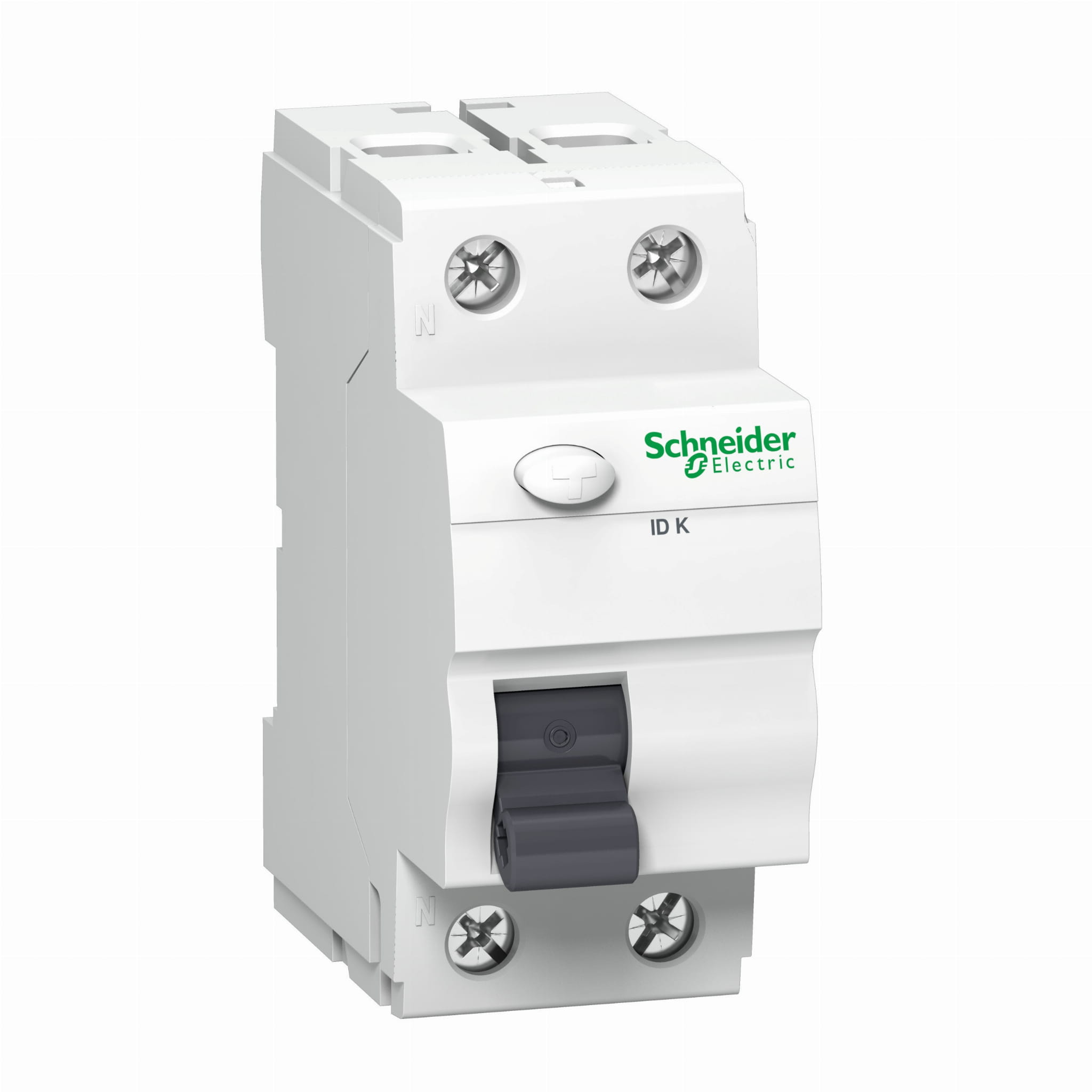

Residual current circuit breaker 2P 25A 30mA type AC IDK-25-2-30-AC A9Z05225 SCHNEIDER ELECTRIC

Go to Product feedback

Residual current circuit breaker 2P 25A 30mA type AC IDK-25-2-30-AC A9Z05225 by SCHNEIDER ELECTRIC provides electric shock protection in electrical installations, effectively responding to sinusoidal and rectified pulsed currents.

Go to full description
with VAT without VAT
Price €30.02
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] wylaczniki-roznicowopradowe #91

  • Circuit breaker type residual current
  • Number of poles 2P
  • Rated current [A] 25A
  • Residual Current [mA] 30 mA
  • Trip characteristic AC
  • Brand SCHNEIDER ELECTRIC

Description

Residual current circuit breaker 2P 25A 30mA type AC IDK-25-2-30-AC A9Z05225 SCHNEIDER ELECTRIC

Residual current circuit breaker 2P 25A 30mA type AC IDK-25-2-30-AC A9Z05225 by SCHNEIDER ELECTRIC provides electric shock protection in electrical installations, effectively responding to sinusoidal and rectified pulsed currents.

The apparatus has double crimped terminals on the bottom (rail + wire), which guarantees certainty of connection. For ease of stenciling with overcurrent circuit breakers, the N track is placed on the left side. The device is equipped with a control button "T" for checking the correct operation.

Basic parameters

Product Range
Acti 9
Product Name
Acti9 ID K
Product or Component Type
Residual current circuit breaker (RCCB)
Abbreviated Device Name
ID K
Pole Description
2P
Neutral position
LEFT
[In] Rated Current
25 A
Network Type
Alternating current (AC)
Sensitivity to leakage current
30 mA
Residual current protection delay time
Delay-free
Differential current protection type
AC type
Quality mark
VDE

Supplementary parameters

Location of the Device in the System
Output
Network frequency
50/60 Hz
[Ue] Rated Switching Voltage
220...240 V alternating current (AC) 50 Hz
Tripping technology of the differential current device
Voltage independent
Rated Turn-On and Turn-Off Capability
Idm 500 A Im 500 A
Rated Conditional Short-circuit Current
GL63: Inc 4.5 kA K60: Inc 6 kA
Rated Insulation Voltage [Ui]
440 V alternating current (AC) 50 Hz
Rated Insulation Voltage [Uimp]
4 kV
Contact Position Indication
NO
Type of Control
Lever
Mounting method
Snap-on
Mounting Base
DIN rail
Width In Modules 9 Mm
4
Height
81 mm
Width
36 mm
Depth
68 mm
Product Weight
0.18 kg
Color
White
Mechanical Durability
5000 cycle
Electrical Durability
AC-1: 2000 cycle
Length of Isolated Strip
14 mm for up or down connection
Tightening Torque
3.5 N.m up or down
Standards
EN/IEC 61008-1 EN/IEC 61008-2-1
Degree of Protection Ip
IP20 conforming to IEC 60529 IP40 (modular housing) conforming to IEC 60529
Degree of Pollution
2
Electromagnetic Compatibility
8/20 μs impulse withstand, 200 A according to EN/IEC 61008-1
Ambient Temperature For Operation
-5…40 °C
Ambient Temperature For Storage
-30…70 °C

Available Configuration

Product code

Catalog no.
EAN
Model
GPV-401-83
next arrow image
A9Z05225/SCH
3606480473883
IDK-25-2-30-AC
