Pressure rubbers for point fixings fi 50 mm set of 2 pcs (flat + collar)

Availability: In stock (large quantity)
Delivered within: 10 Business days
Delivery: The price does not include any possible payment costs check the delivery methods
Weight: 0.015 kg
Price / pcs.: £0.21 0.21
excl. shipping costs
quantity pcs.

product unavailable

add to wish list
Visa Mastercard Google Pay Apple Pay PayPal Bank Transfer
Rating: 0
Vendor: PSG
Product code: 000-403

Description

EPDM Pressure Pads ø50 mm for Point Fixings – Black Set

A set of black EPDM pressure pads designed for point fixings (roto fittings) with a diameter of 50 mm. The set consists of two elements — a flat pad and a flanged pad — providing secure and durable clamping of glass panels in stainless steel balustrades.

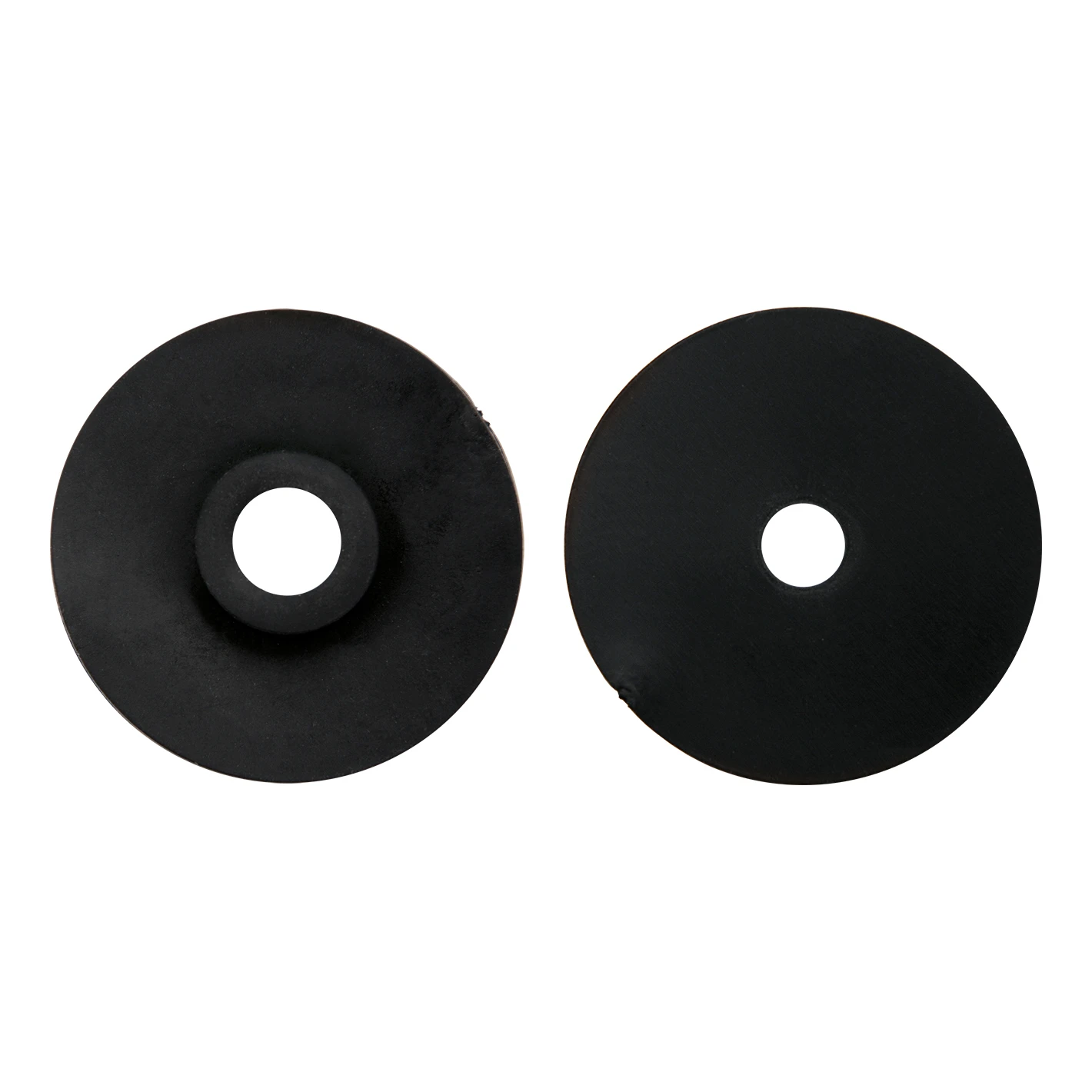

Set of EPDM pressure pads – top view: flanged pad and flat pad
Set of EPDM pressure pads – top view: flanged pad and flat pad

EPDM rubber is an ideal material for both indoor and outdoor applications. It is distinguished by its excellent resistance to UV radiation, organic and inorganic acids, and adverse weather conditions. It does not discolour and does not stain adjacent materials, which is critical when mounting directly onto glass and stainless steel. Thanks to its low elasticity, EPDM pads offer high abrasion resistance while retaining the ability to undergo reversible deformation under mechanical loads — holding the glass panel firmly without risk of permanent distortion.

Set Contents

  • 1 pc. — flat pad (washer)
  • 1 pc. — flanged pad (centring)

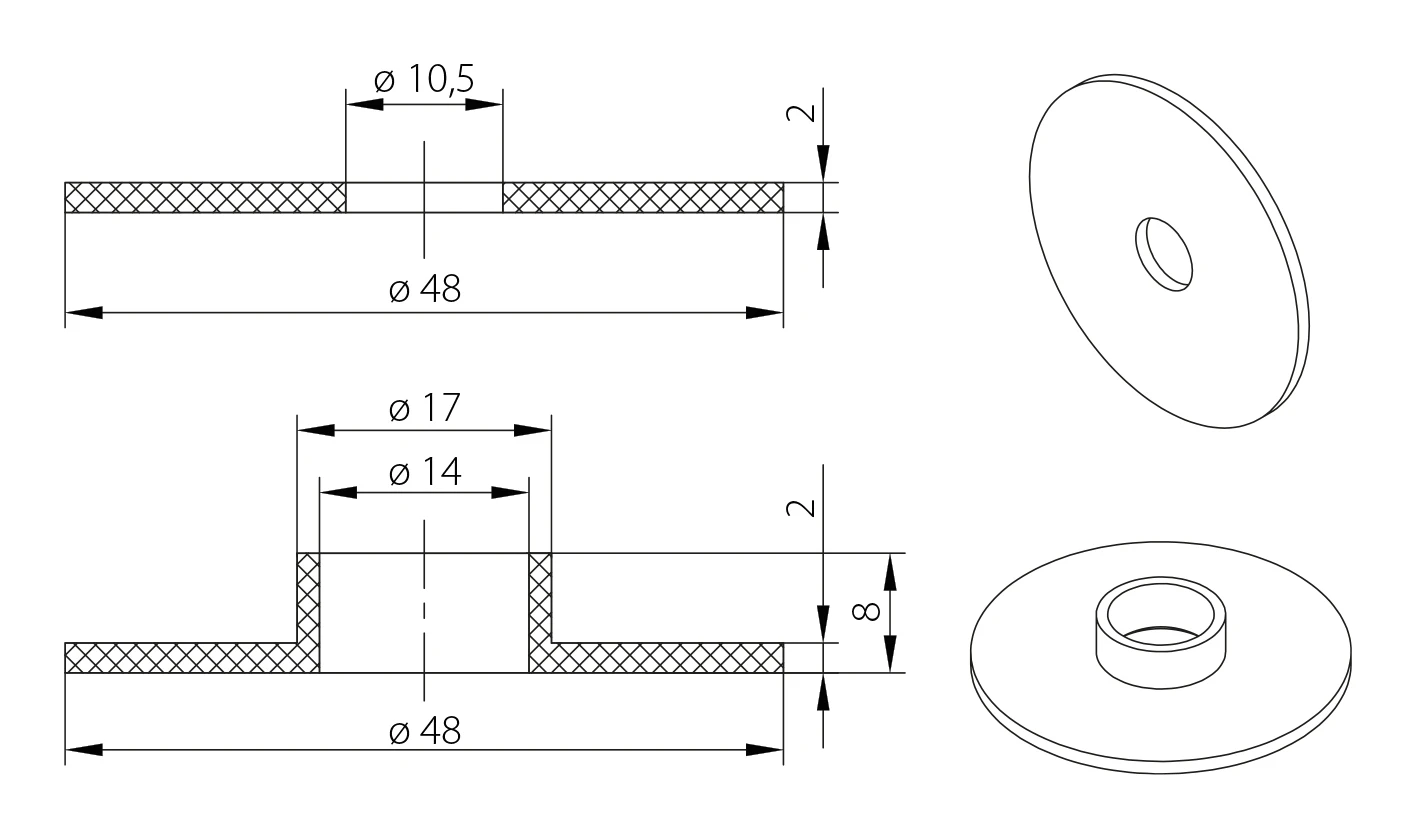

Technical drawing of pressure pads with dimensions – cross-sections of flat pad and flanged pad
Technical drawing of pressure pads with dimensions – cross-sections of flat pad and flanged pad

Flat Pad Dimensions

  • Outer diameter: ø48 mm
  • Hole diameter: ø10.5 mm
  • Thickness: 2 mm

Flanged Pad Dimensions

  • Outer diameter of base: ø48 mm
  • Outer diameter of flange: ø17 mm
  • Inner hole diameter: ø14 mm
  • Base thickness: 2 mm
  • Total height including flange: 8 mm

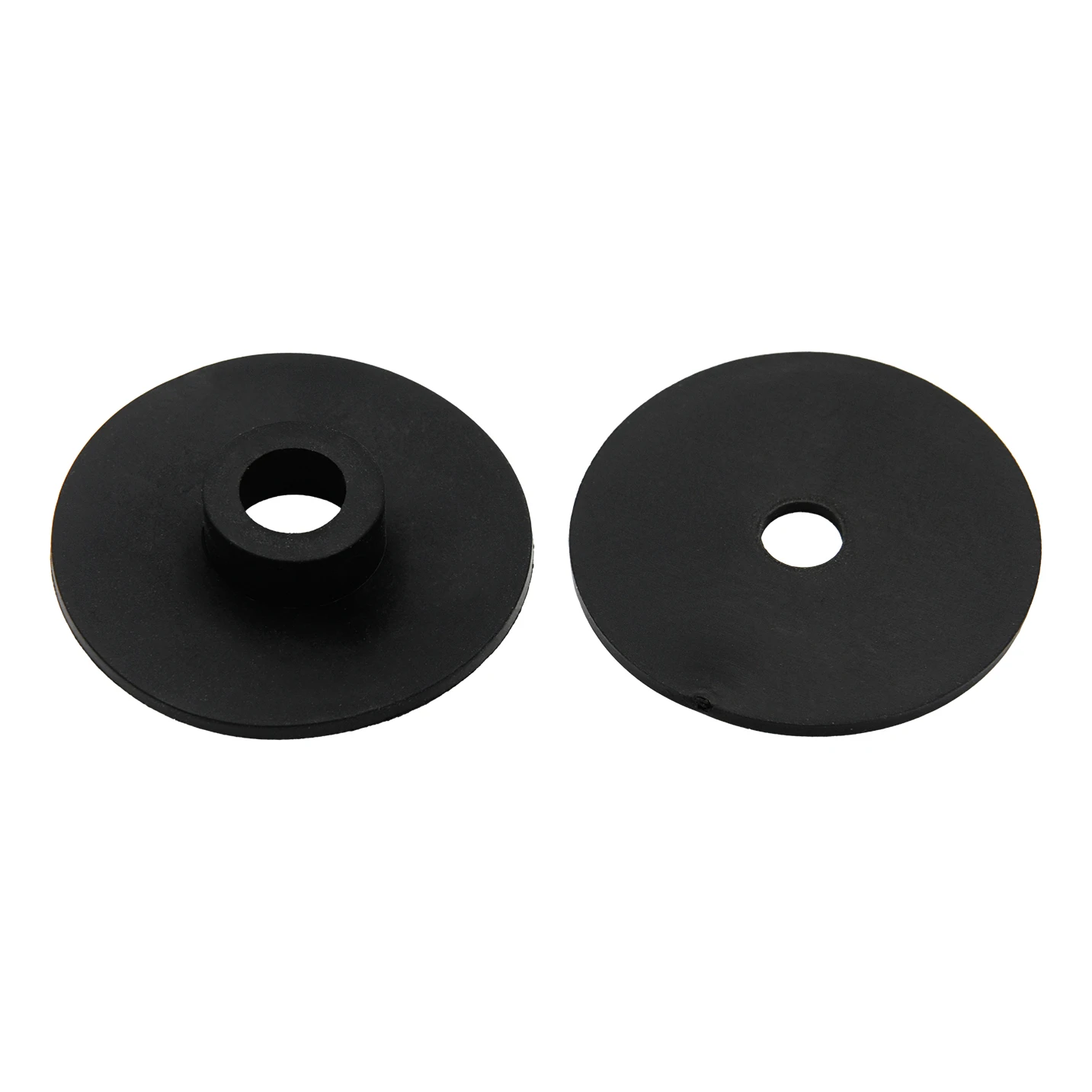

Set of EPDM pressure pads – perspective view, flanged pad and flat pad
Set of EPDM pressure pads – perspective view, flanged pad and flat pad

Technical Specifications

  • Material: EPDM
  • Colour: black
  • Mounting thread: M10
  • Point fixing diameter: 50 mm
  • Set weight: 0.015 kg
  • Volume: 30 cm³
  • EAN: 5903313204828

EPDM Rubber Properties

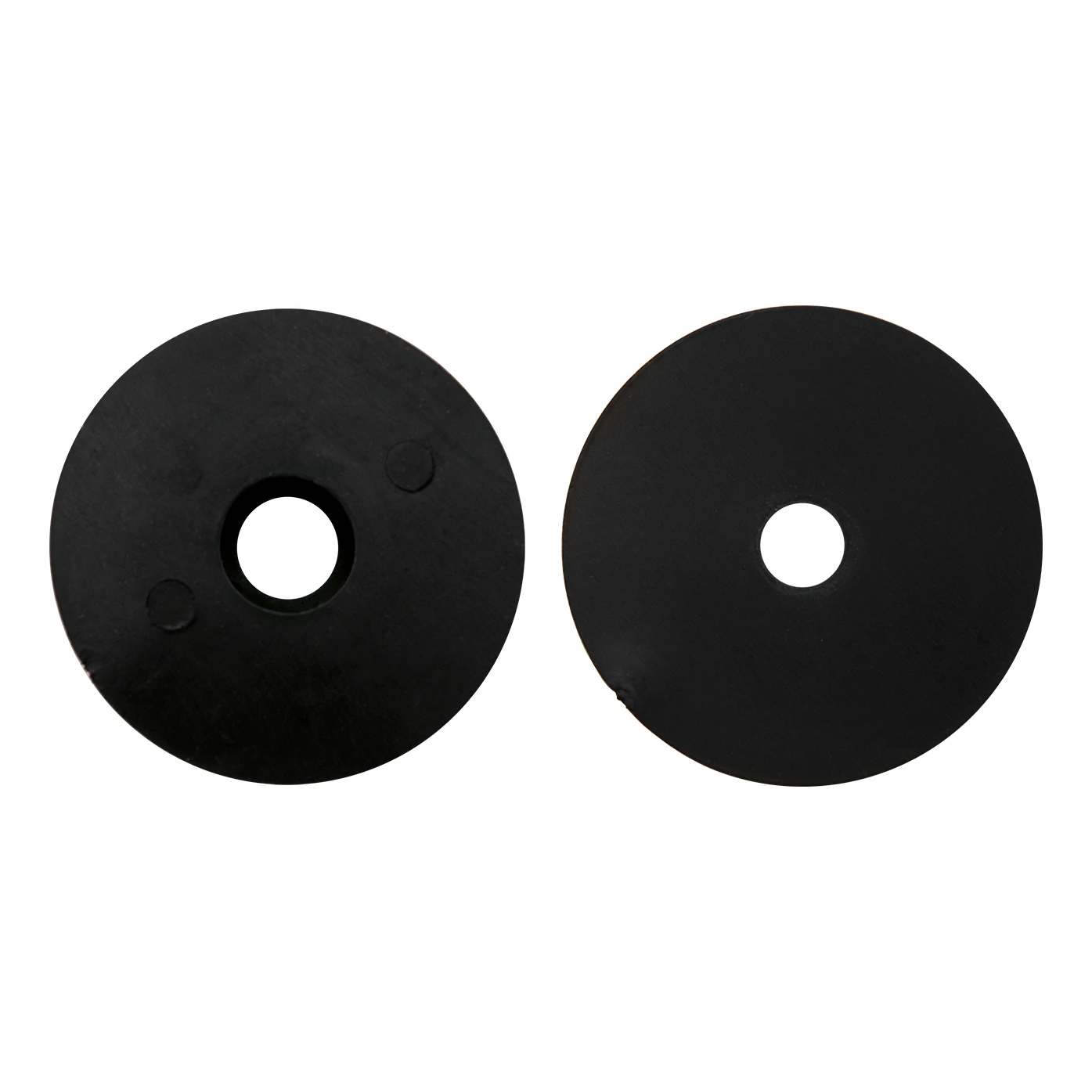

Set of EPDM pressure pads – top view, flat side of both elements
Set of EPDM pressure pads – top view, flat side of both elements
  • Excellent capacity for reversible deformation under mechanical loads
  • High resistance to UV radiation
  • Resistance to organic and inorganic acids
  • Does not discolour and does not stain other materials
  • Low elasticity providing abrasion resistance
  • Does not age in adverse weather conditions

This set of pressure pads is an essential fixing component for glass balustrade installations using point fixings. The precise dimensional fit ensures a tight and aesthetically pleasing seating of the glass panel, while the durability of EPDM material guarantees years of trouble-free performance both indoors and outdoors.

Technical data

Material Plastic
