Pressure rubber gaskets for point fixings black fi 50 mm EPDM 2 pieces
Description

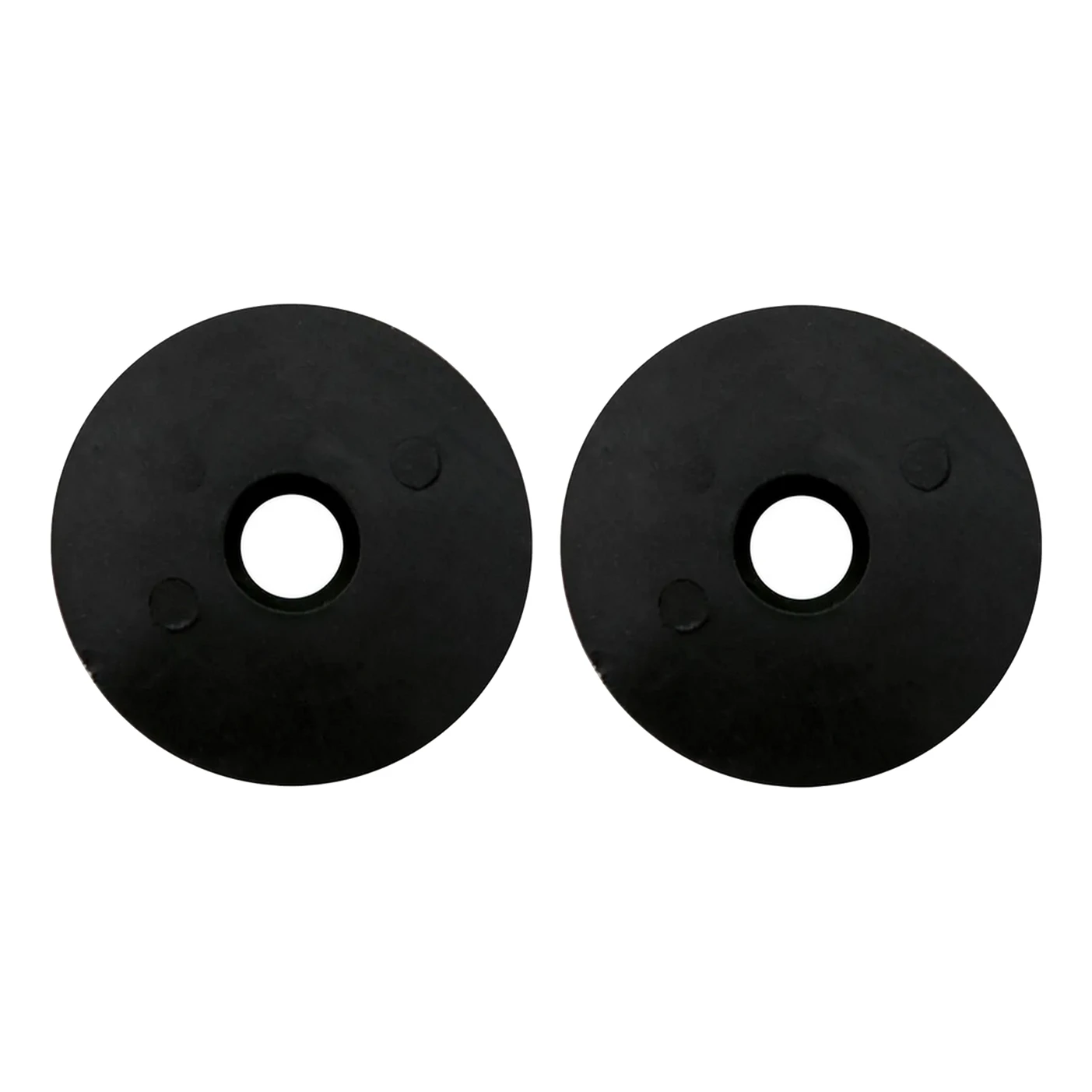

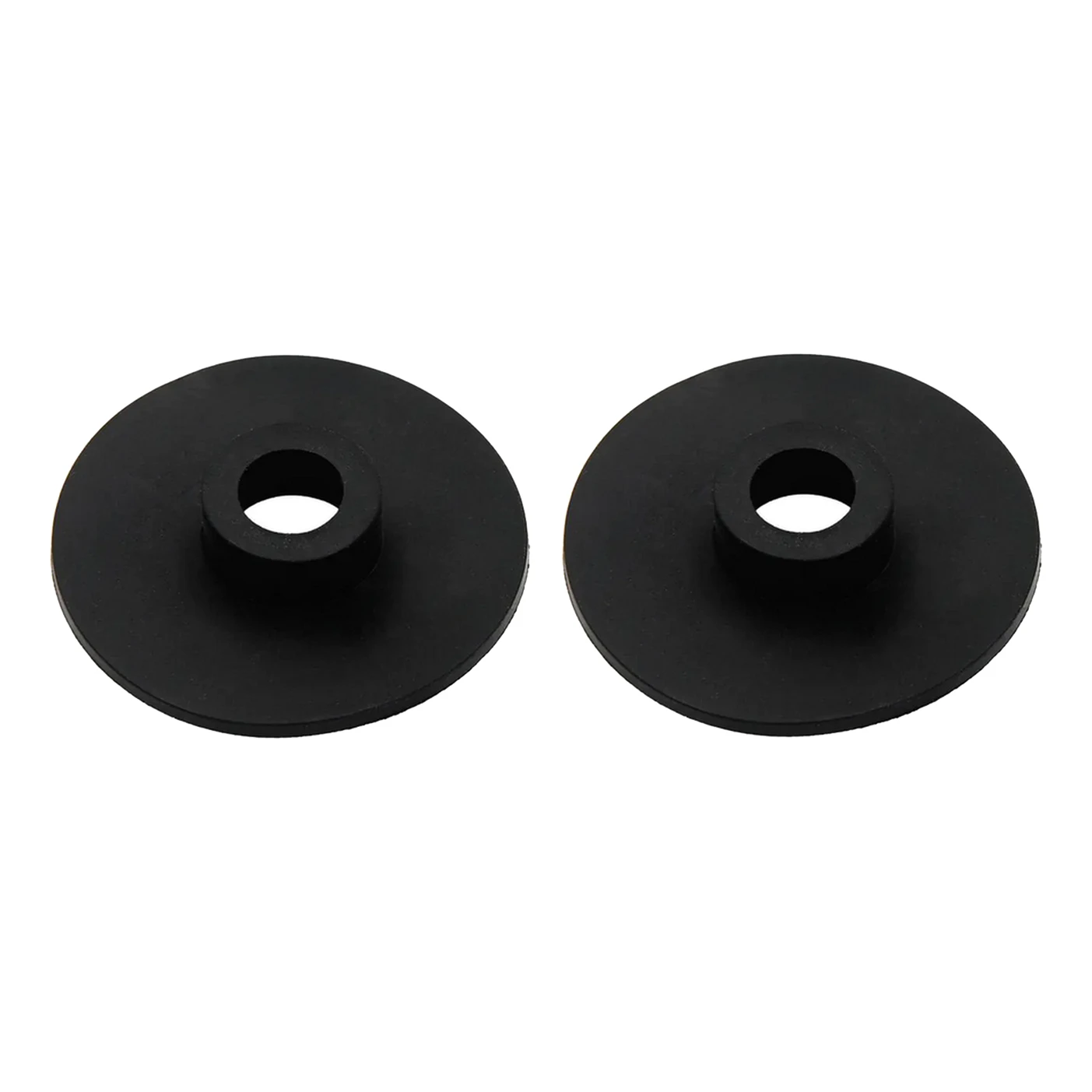

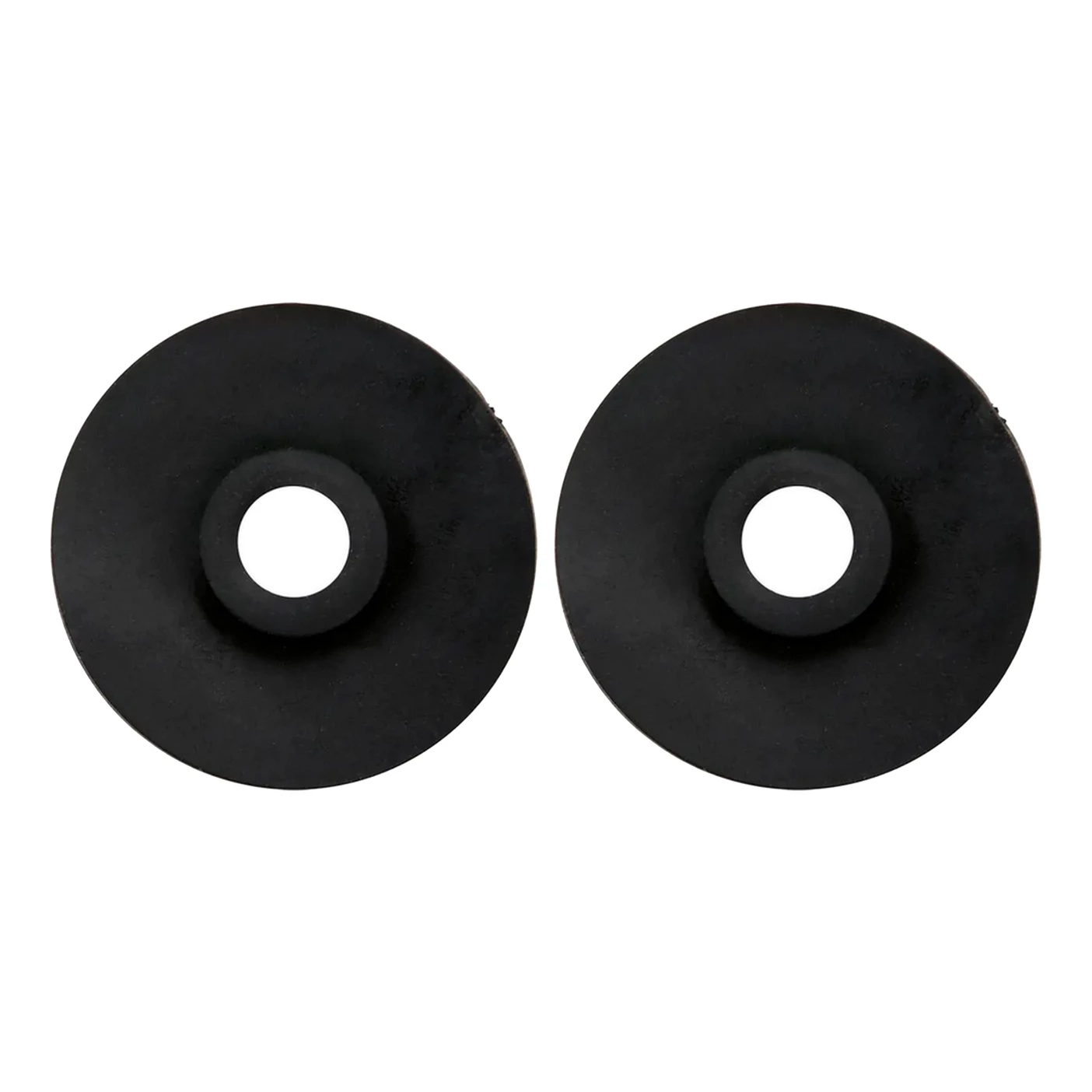

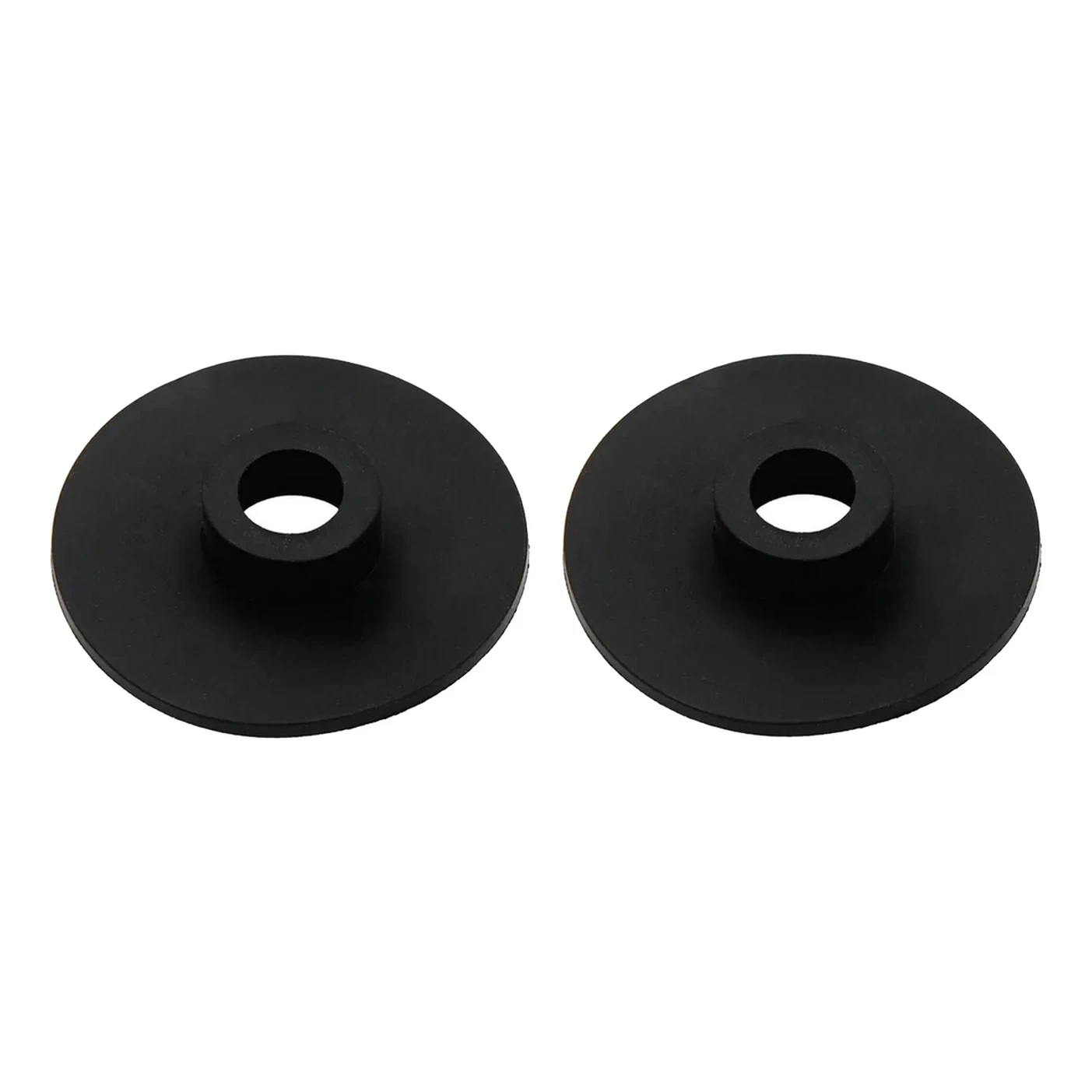

EPDM Pressure Gaskets fi 50 mm for Point Fixings – Pack of 2
Pressure gaskets for point fixings with a diameter of 50 mm, made from durable EPDM rubber. The set contains 2 rubber gaskets designed to securely hold glass panels in stainless steel balustrade systems. Thanks to the use of EPDM material, the gaskets retain their properties across a wide temperature range and provide a lasting, resilient clamping force on the glass panel.
Technical Specifications
- Diameter: 50 mm
- Colour: black
- Material: EPDM rubber
- Compatible glass thickness: 8 to 21.52 mm
- Operating temperature: -40°C to +110°C
- Mounting thread: M10
- Quantity per set: 2 pcs
- Set weight: 0.012 kg
- Volume: 30 cm³
Compatibility
The gaskets are designed for use with adjustable point fixings. They are compatible with fittings N01.5530.4XS and N01.5550.4XS. The profiled shape with a central hole and conical recess ensures correct seating on the fixing spindle and even distribution of pressure across the glass panel.
Properties of EPDM Rubber
- Exceptionally good capacity for reversible deformation under mechanical forces
- Retains flexibility even at temperatures as low as -40°C
- Low plasticity resulting in high abrasion resistance
- High resistance to organic and inorganic acids and UV radiation
- Does not discolour and does not stain other materials — ideal for stainless steel and glass balustrades
The use of EPDM rubber guarantees years of trouble-free performance even in demanding weather conditions. The gaskets do not lose their resilience under fluctuating temperatures, solar radiation, or exposure to moisture, making them a reliable component in both indoor and outdoor glass balustrade systems.
Technical data
| Material | Plastic |
