PSG

Post 60x40x1.5x1500 mm with cassette and lock 72/34

Go to Product feedback

Steel post 60x40 mm with built-in cassette and 72/34 mm lock, height 1500 mm, wall thickness 1.5 mm, handle spindle 8 mm.

Go to full description
with VAT without VAT
Price €31.79
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] zamki-i-wkladki #117

  • Material Steel
  • Finish Electrolytic Zinc

Description

Steel Post 60x40 mm with Cassette and Lock 72/34 – Height 1500 mm

Steel post 60x40 mm with integrated cassette and lock is a ready-to-install solution that significantly reduces the time required to fit garden gate hardware. By combining all components – the post, concealing cassette and lock – into a single unit, you eliminate the need for welding and additional on-site fitting of individual parts.

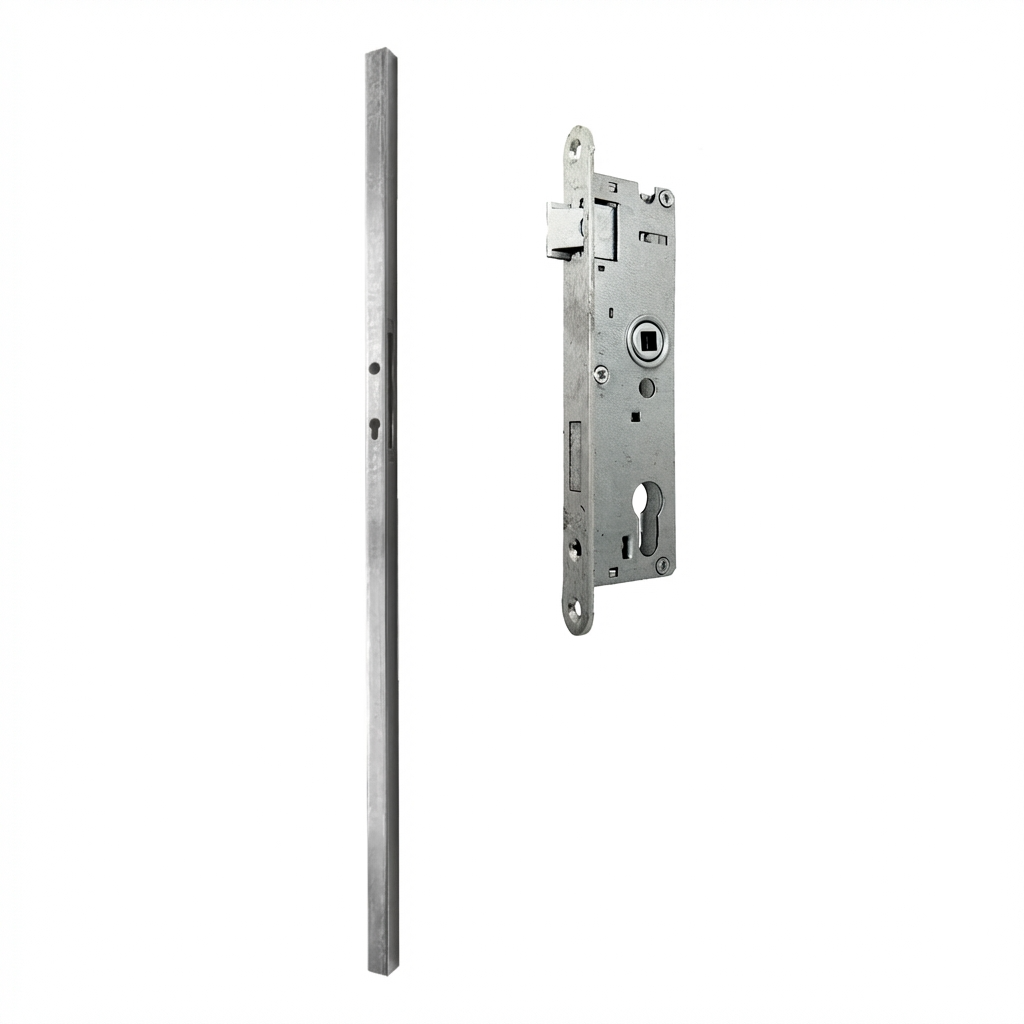

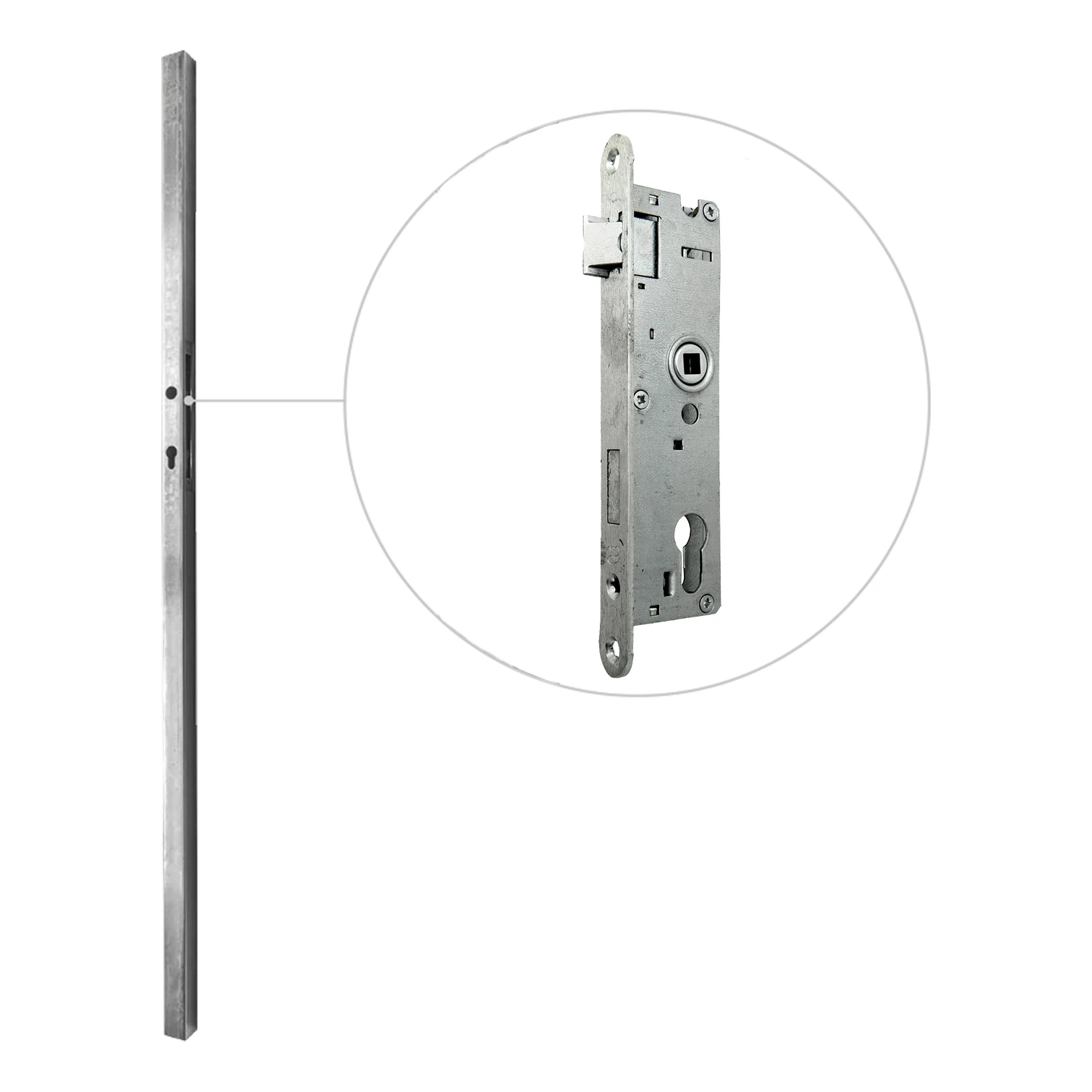

Steel post 60x40 mm with cassette and lock 72/34 – full view with close-up of the lock
Steel post 60x40 mm with cassette and lock 72/34 – full view with close-up of the lock

The product is designed for installation and assembly companies carrying out fencing projects with gates. The complete set enables quick, weld-free installation – simply set the post in place and fit the handle with the cylinder. The absence of visible welds ensures a high-quality finish on the completed structure, which is particularly important when working on end-client projects.

The cassette built into the post serves a dual purpose – it conceals the lock mechanism while simultaneously protecting it from the elements. The lock is compatible with a standard euro cylinder and a handle with an 8 mm spindle, ensuring full compatibility with widely available hardware fittings on the market.

Technical Specifications

  • Post height: 1500 mm
  • Profile dimensions: 60 x 40 mm
  • Wall thickness: 1.5 mm
  • Lock centres: 72/34 mm
  • Handle spindle: 8 mm
  • Material: steel
  • Weight: 3.85 kg

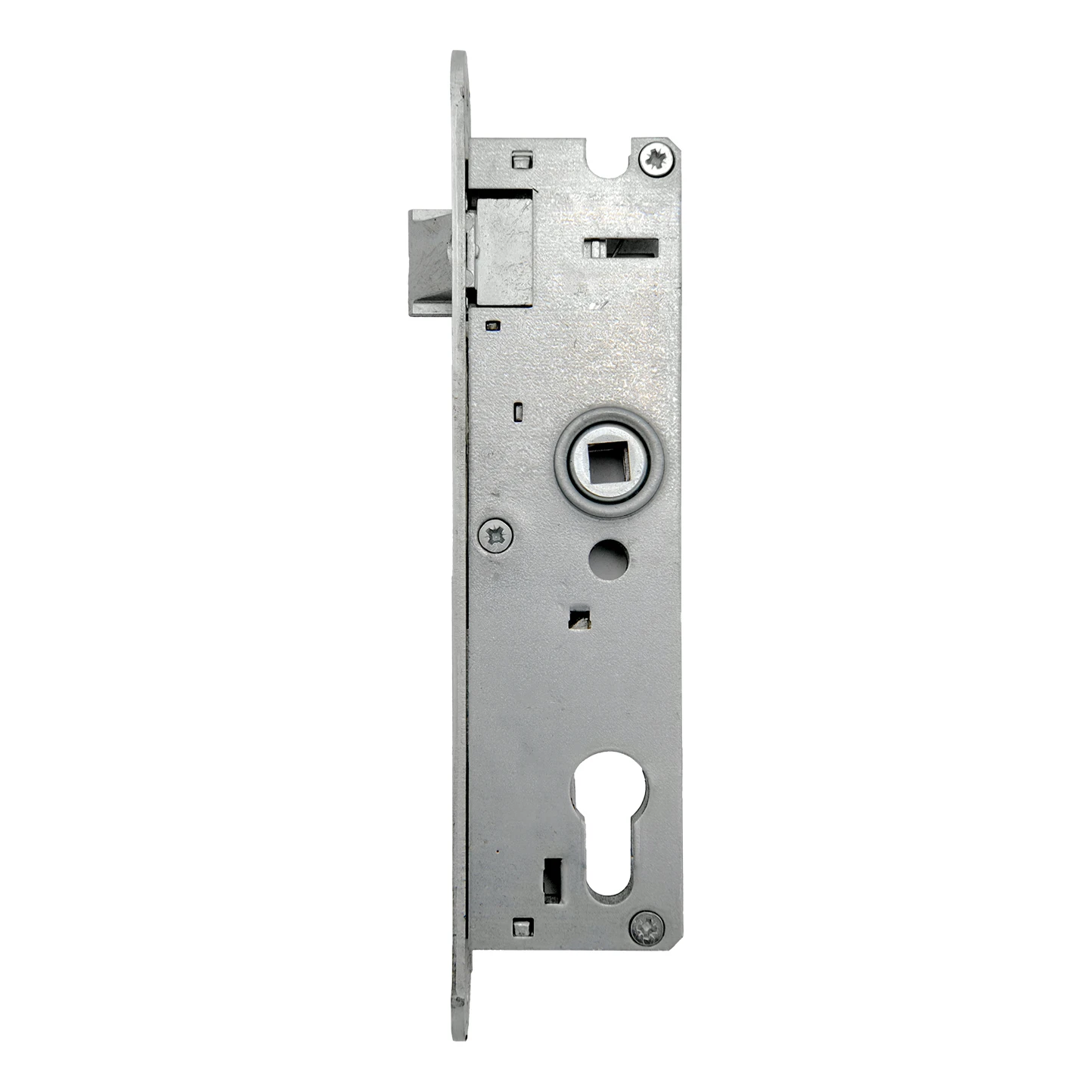

Mortice lock 72/34 – front view showing cylinder hole and handle spindle opening
Mortice lock 72/34 – front view showing cylinder hole and handle spindle opening

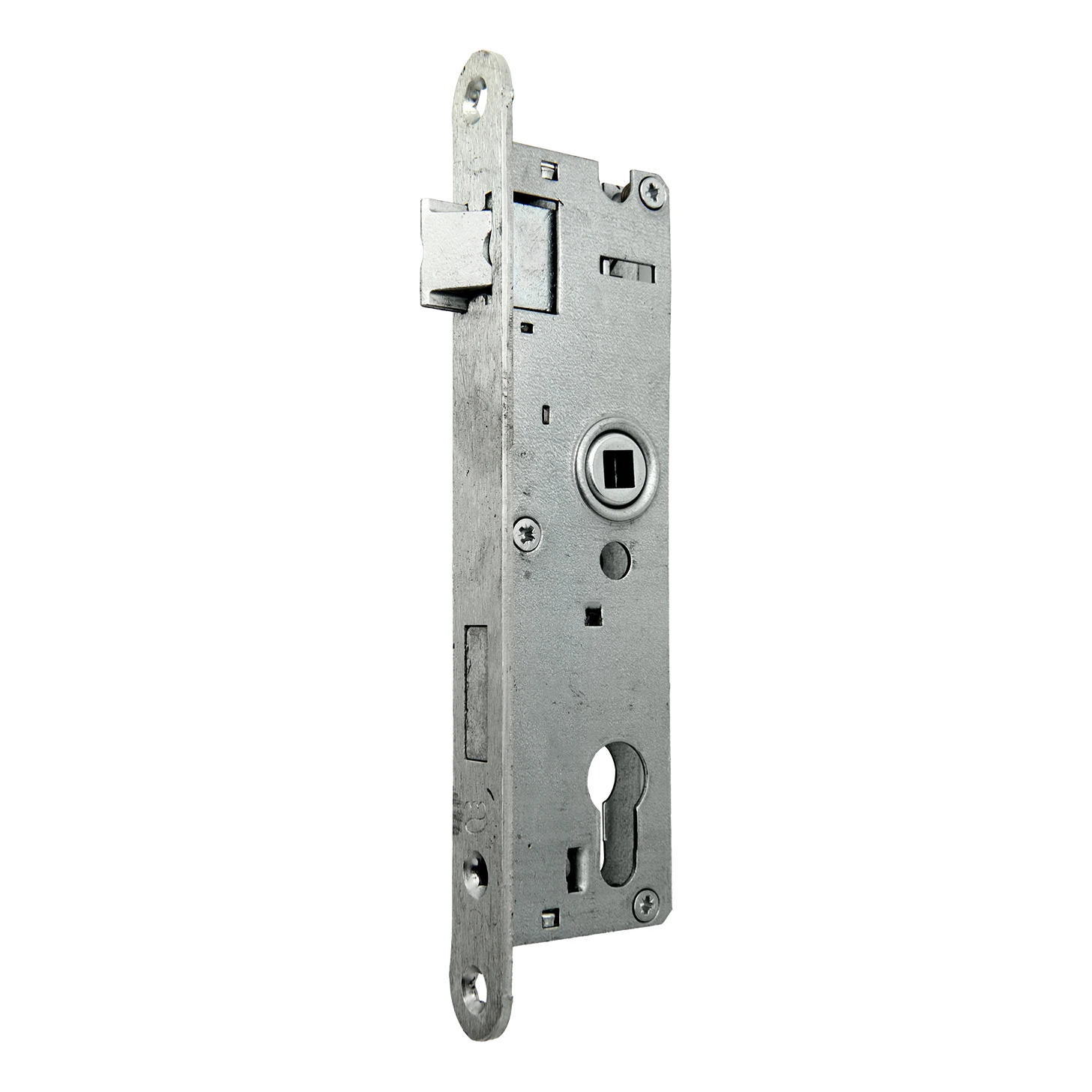

Mortice lock 72/34 – perspective view showing the latch bolt
Mortice lock 72/34 – perspective view showing the latch bolt

The post is supplied unpainted and ungalvanised, giving you complete freedom to choose the protective coating best suited to your specific project requirements. Once properly treated against corrosion – for example by powder coating or hot-dip galvanising – the structure will maintain its durability for many years.

Set contents: complete post with integrated cassette and mortice lock – ready for setting in concrete and fitting of hardware.
