Point glazing fitting for glass 6-12mm Ø 30/13/M8x40 AISI304 flat system polished
Description

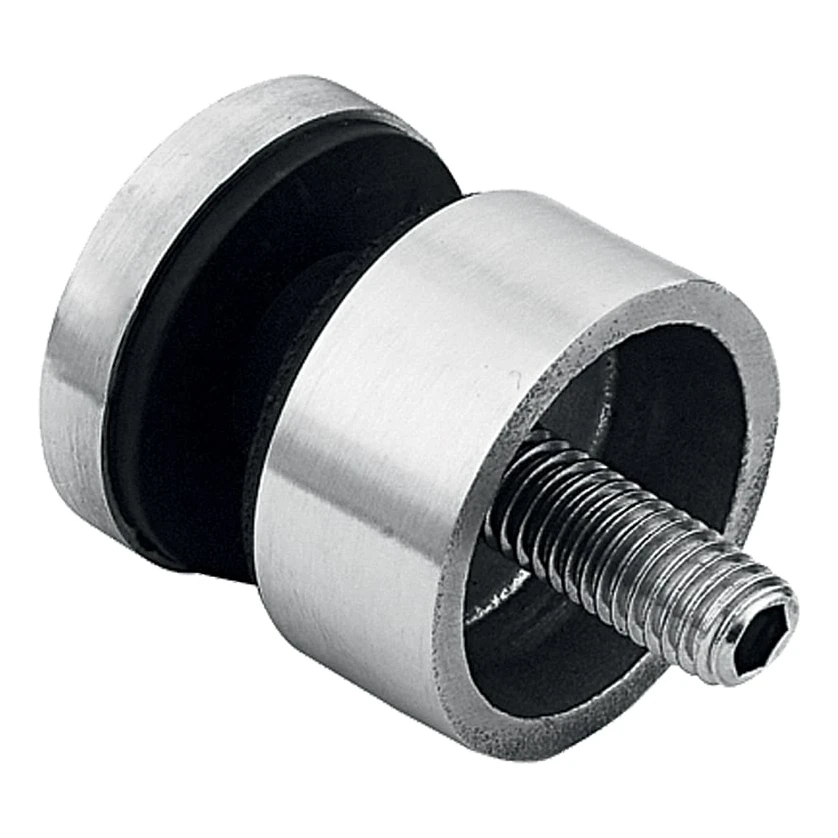

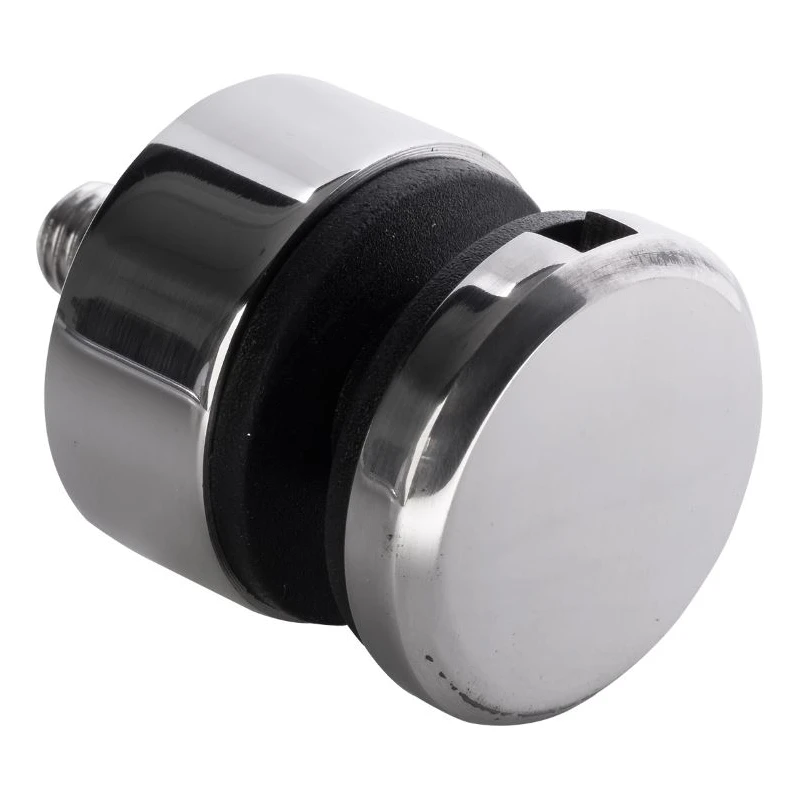

Point glazing fitting for glass Ø 30 mm AISI 304 – flat system, polished
Point glazing fitting (rotula) designed for mounting on flat surfaces. Thanks to the AISI 304 stainless steel construction with a polished finish, the product provides high corrosion resistance and an aesthetic, modern appearance. Suitable for internal and external applications — wherever durable, point fixing of glass panels is required.
The fitting stably supports glass panes with thickness from 6 to 12 mm thanks to included pressure gaskets with full adjustment range. The threaded stud M8×40 with hex socket enables quick and secure mounting to the load-bearing structure. Compact diameter of 30 mm allows discreet fixing that doesn't dominate the glass panel.

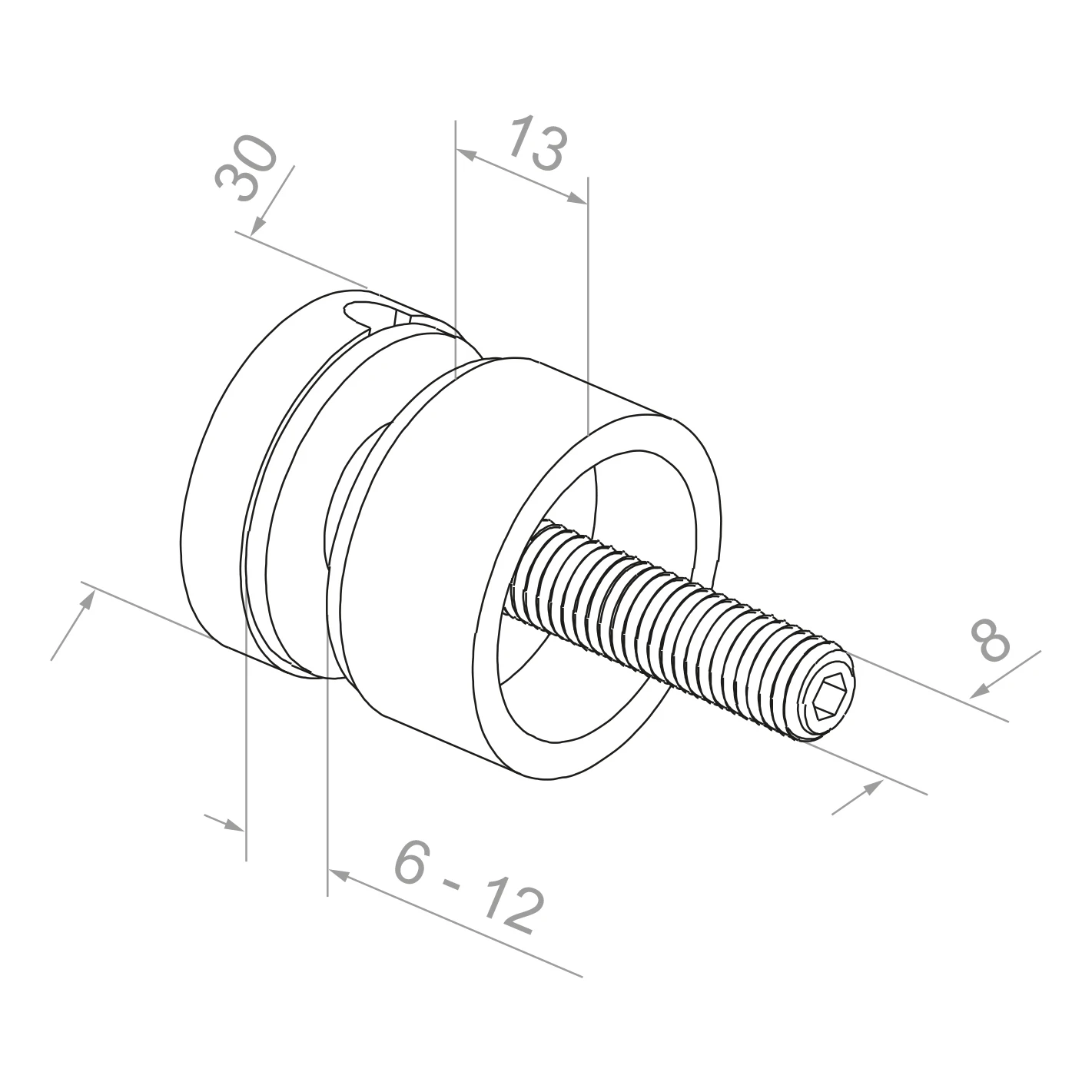

Dimensions and technical data
- External diameter of body: 30 mm
- Body length (distance from glass to face): 13 mm
- Stud thread: M8×40
- Socket: hex (hexagonal)
- Glass thickness range: 6–12 mm
- Material: AISI 304 stainless steel
- Finish: polished (bright)
- Mounting system: flat surface
- Weight: 0.08 kg
- Volume: 40.5 cm³
- EAN: 5901289670074
Set contents and mounting
The set includes pressure gaskets enabling adjustment within the full range of glass thickness 6–12 mm. This eliminates the need to separately select seals — one fitting is sufficient to handle different glass panel thicknesses. Stud mounting is carried out using a standard hex key, which significantly reduces installation time on site.
The fitting works well in glass balustrades, canopies, partition walls, glazed facades and display structures. The polished stainless steel surface harmoniously complements both transparent and frosted glass, giving the installation a professional character.
Technical data
| Material | AISI 304 |
| Finish | High Gloss |
| Mounting System | Flat |
| Glass Thickness [mm] | 6-12 |
