Point glass holder for 10.38-17.52mm glass Ø50/30/M10x40 AISI304 flat system gold
Description

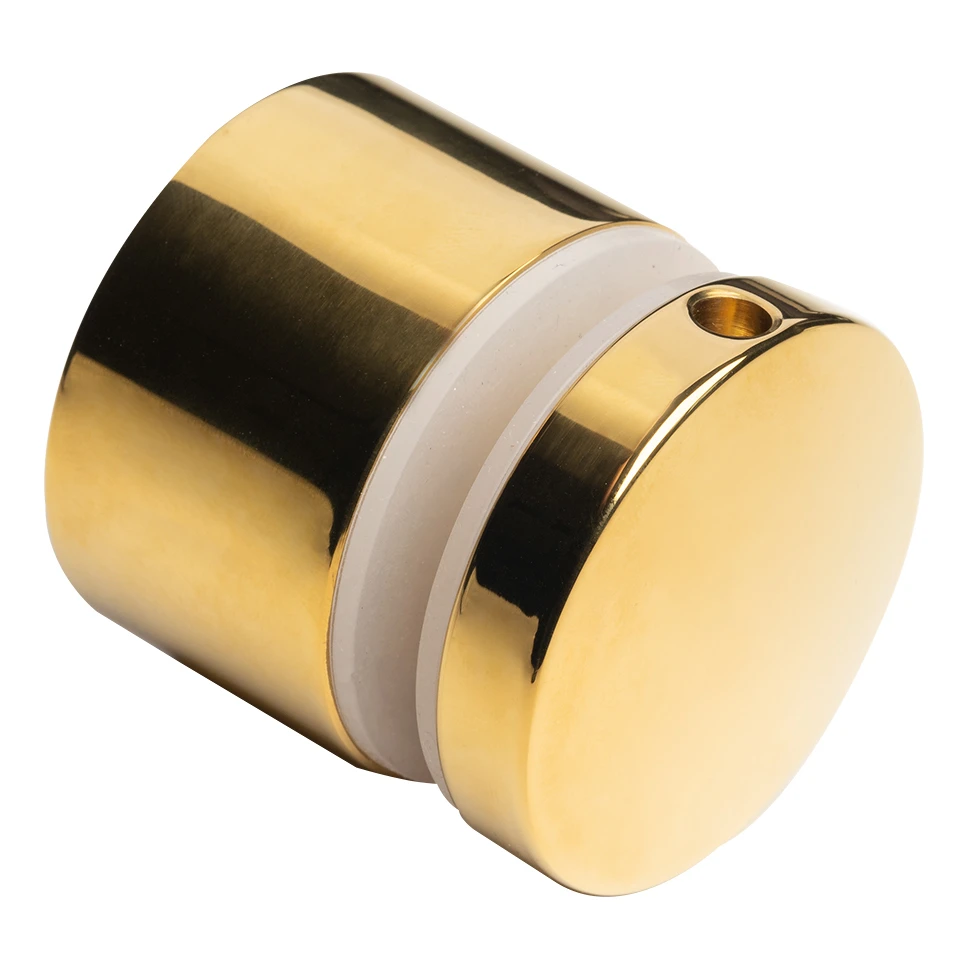

Point fixture for glass Ø50 mm golden PVD – AISI 304 steel, glass 8–21.52 mm
Golden point fixture for glass Ø50 mm made from AISI 304 stainless steel with PVD coating in polished finish — a professional fixing element for glass panels with thickness from 8 to 21.52 mm. Designed for mounting on flat surfaces, it provides stable and aesthetic glass fixing both indoors and outdoors.
'Hard' PVD coating technology (vacuum coating in high vacuum) creates a layer approximately 3–5 µm thick, which permanently bonds to the metal substrate. This makes the surface exceptionally resistant to chipping, impacts, peeling and dulling — maintaining mirror polish for extended periods of use. The anti-corrosion properties of the coating allow trouble-free outdoor operation.
Advantages for the installer
Mounting the fixture is quick and convenient — the threaded element with M10 thread requires only preparation of a mounting hole with diameter Ø18 mm in the flat surface. The wide range of accepted glass thicknesses (8–21.52 mm) covers both single tempered panes and multi-layer laminated glass (VSG), ensuring versatility across different projects. Protective rubber seals for glass are included in the set, protecting the pane from damage and eliminating the need to order gaskets separately.

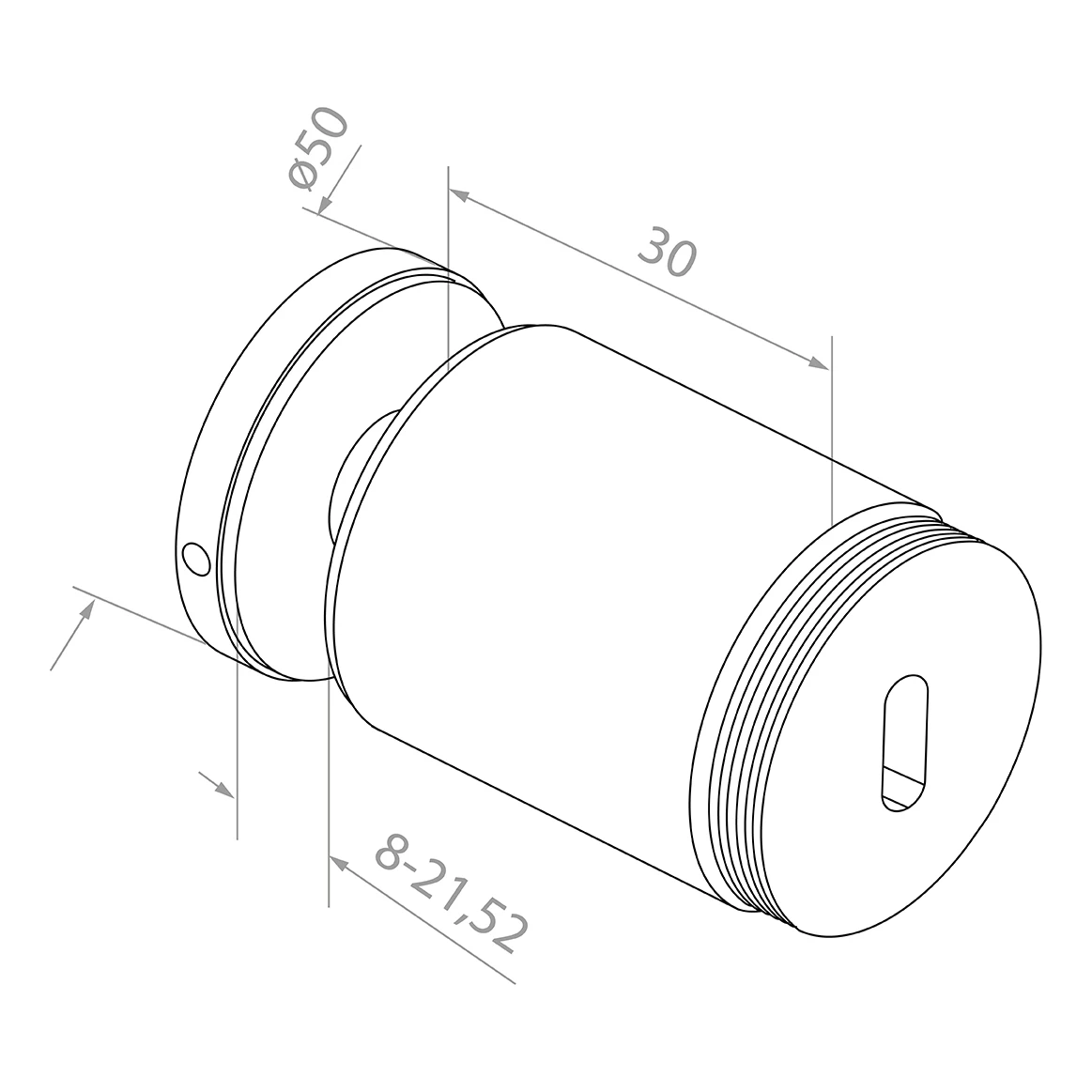

Dimensions and technical parameters
- Material: AISI 304 stainless steel
- Finish: golden polish, PVD coating (vacuum coating)
- PVD coating thickness: approx. 3–5 µm
- Fixture diameter: Ø50 mm
- Base width (spacer body length): 30 mm
- Thread: M10
- Mounting hole: Ø18 mm
- Glass thickness range: 8–21.52 mm
- Mounting type: for flat surfaces, screwed in (flat system)
- Colour: golden PVD
- Outdoor use: yes — coating with anti-corrosion properties
- Weight: 0.38 kg
- Included: protective rubber seals for glass
The golden polish of the fixture fits perfectly into modern interior arrangements, including glamour style and premium projects. The durable PVD coating guarantees that the elegant appearance will not lose quality even after years of use — both in prestigious interiors and on external façades.
Note: the shade of golden colour may vary slightly depending on monitor settings.
Technical data
| Material | AISI 304 |
| Finish | Gold PVD |
| Mounting System | Flat |
| Glass Thickness [mm] | 10,38-17,52 |
