Point glass clamp 8-21.52 mm fi 50/30/M10x40 aisi 304 flat system anthracite
Description

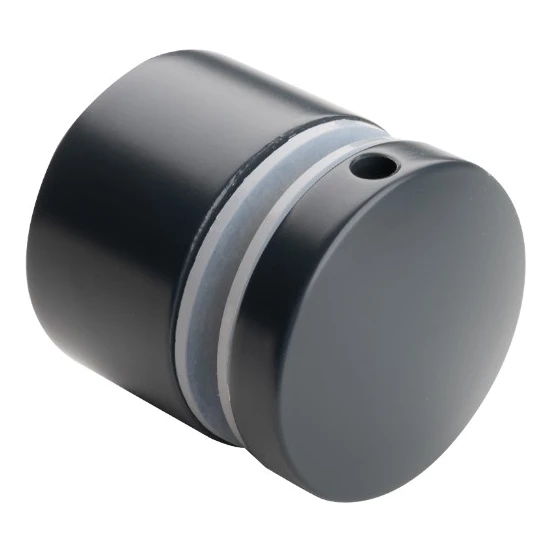

Point Glass Clamp Ø50 mm Anthracite – AISI 304 Stainless Steel, Glass 8–21.52 mm
Point glass clamp with a diameter of Ø50 mm in an elegant anthracite finish. Crafted from AISI 304 stainless steel and coated with powder paint, it combines high corrosion resistance with a contemporary aesthetic. Designed for mounting on flat surfaces — ideal for glass balustrades, canopies, and both interior and exterior partitions.
Versatility of Application
The clamp accommodates glass thicknesses from 8 to 21.52 mm, ensuring compatibility with both single toughened panes and laminated glass units (e.g. VSG). As a result, a single model covers the majority of typical configurations encountered on construction sites — reducing the number of stock items and speeding up order fulfilment.

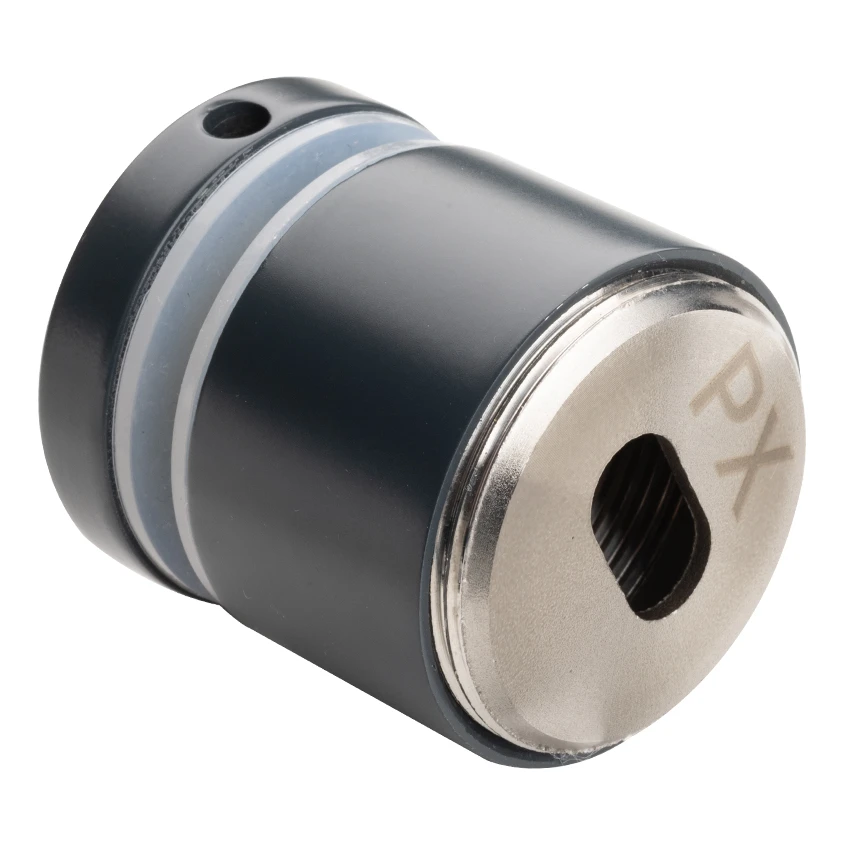

The flat system design is intended for screwing onto flat surfaces using an M10 thread. The 18 mm mounting hole allows for precise positioning of the clamp during installation.
Durability and Weather Resistance
The AISI 304 stainless steel core provides high mechanical strength along with excellent resistance to moisture and corrosion. An additional layer of powder coating in anthracite significantly enhances the anti-corrosion properties and protects the surface against scratches, making this clamp an ideal solution for both indoor and outdoor applications — façades, balconies, terraces, and glass fencing.

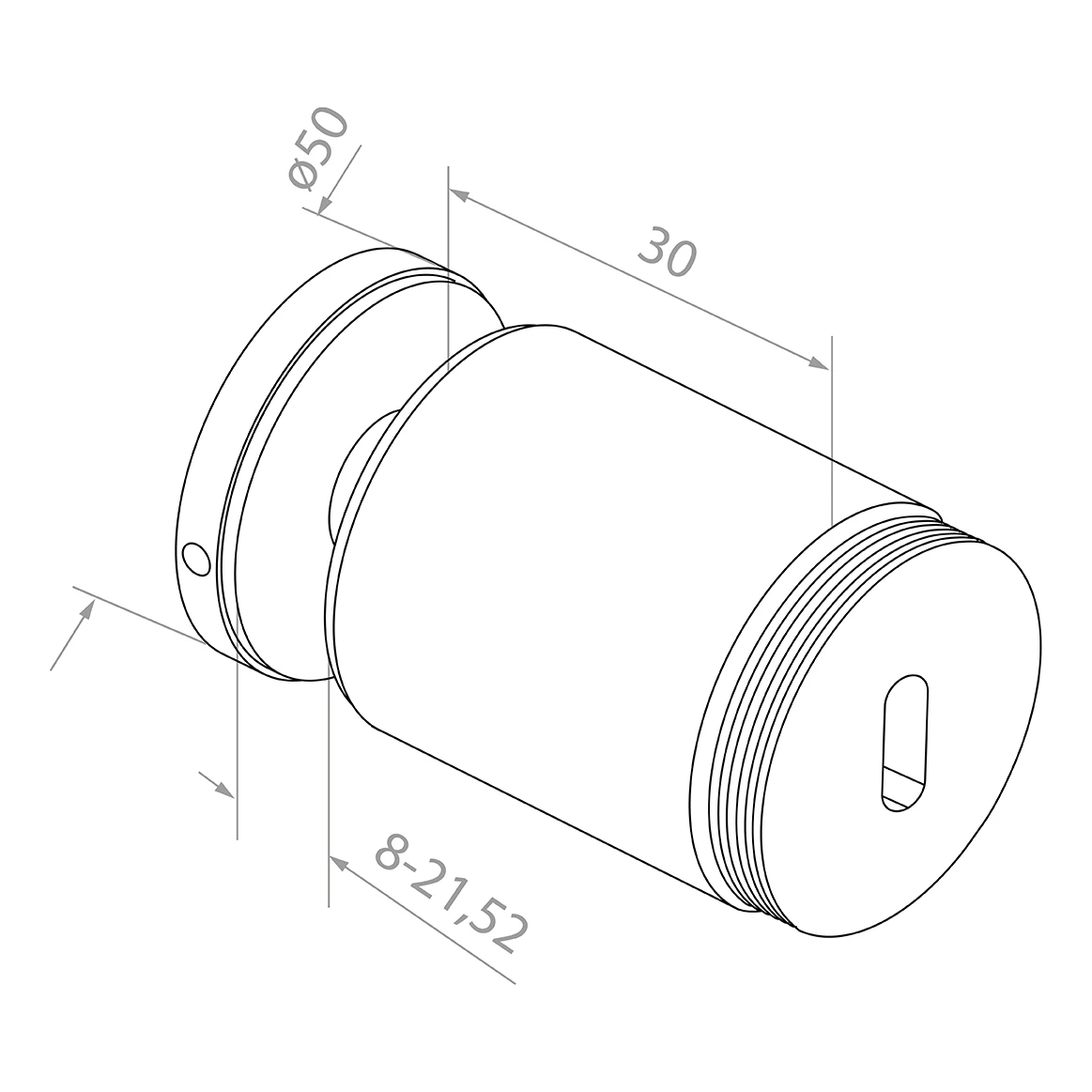

Technical Specification
- Diameter: Ø50 mm
- Base width (standoff): 30 mm
- Thread: M10
- Mounting hole: 18 mm
- Glass thickness: 8–21.52 mm
- Material: AISI 304 stainless steel
- Finish: powder coating
- Colour: anthracite matt
- Type: for flat surfaces (flat system, screw-in)
- Weight: 0.38 kg
- EAN: 5903313204484
Technical data
| Material | AISI 304 |
| Finish | Powder-coated anthracite |
| Mounting System | Flat |
| Glass Thickness [mm] | 8-21,52 |
