Point fixing rotula for glass φ 50mm thread M10 flat system black
Description

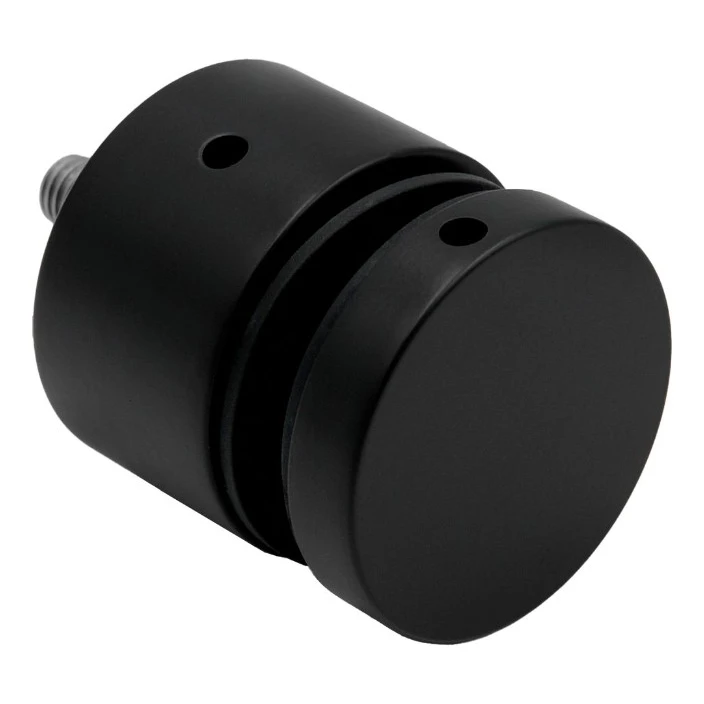

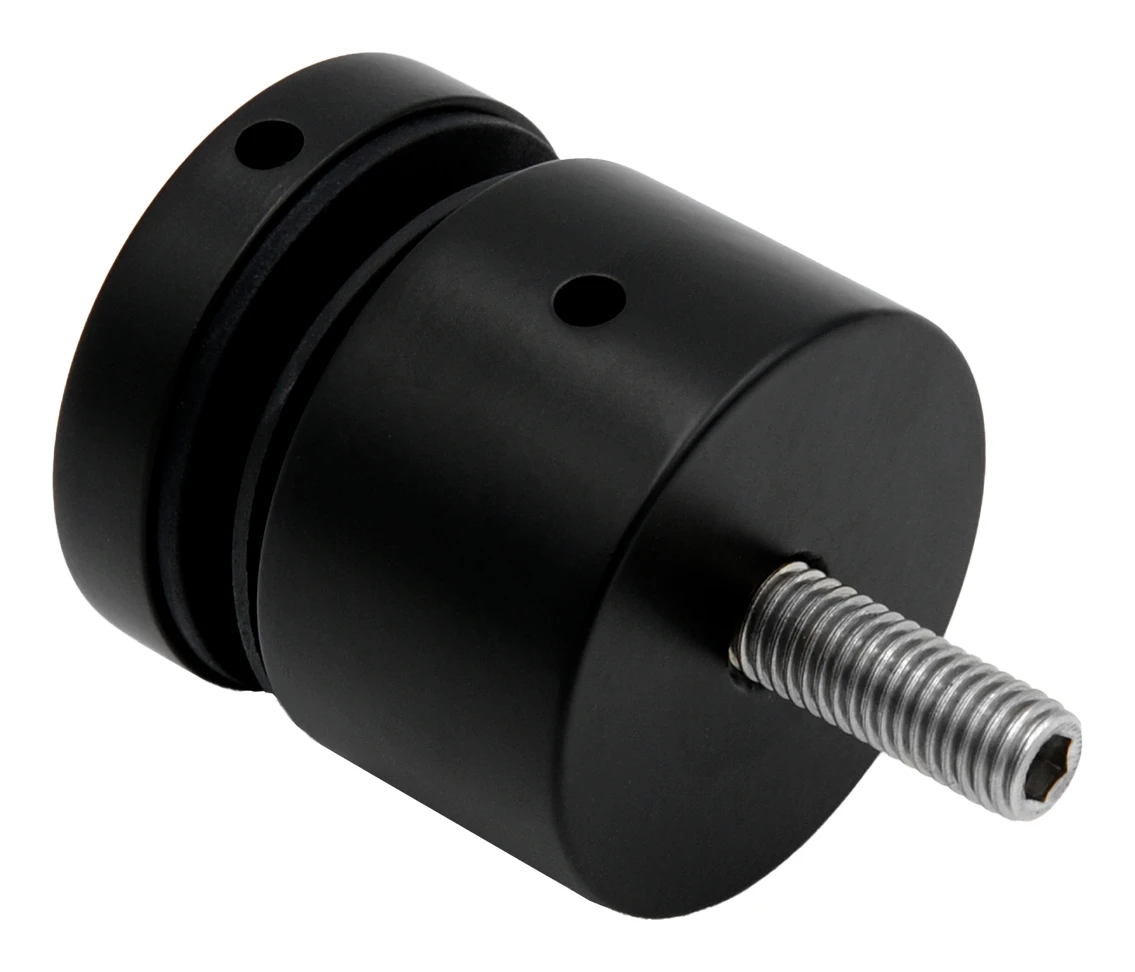

Point fixing rotula for glass φ 50 mm – black matt, thread M10
Point fixing rotula for mounting glass on flat surfaces — an aesthetic, durable and versatile solution for professional glazing installations. Thanks to the black matt powder coating finish, it fits perfectly into modern architectural designs, whilst the stainless steel AISI 304 construction ensures years of corrosion resistance both indoors and outdoors.
Universal glass mounting
The rotula fitting with 50 mm diameter allows mounting of glass panels with thickness from 8 to 17.52 mm, which covers both single glazing and laminated glass. The M10×70 mounting thread guarantees stable and secure connection to the substrate, whilst the 18 mm diameter mounting hole facilitates precise positioning during installation. The 30 mm standoff from the mounting surface gives the structure visual lightness and ensures appropriate spacing between the glass and wall or post.

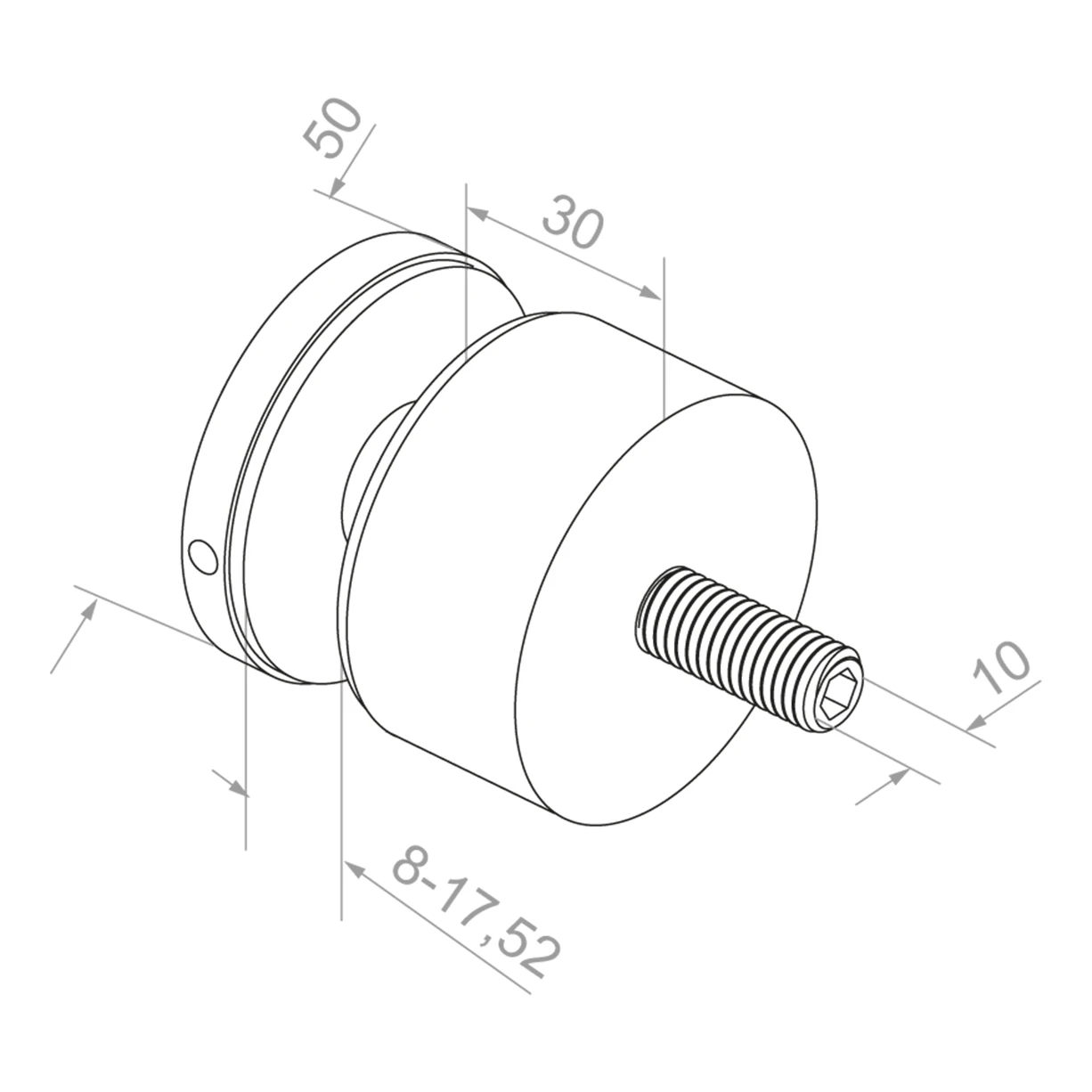

Technical specification
- Model: Rotula 50/30/M10×70
- Fitting diameter: 50 mm
- Standoff (distance from surface): 30 mm
- Mounting thread: M10×70
- Total length: 70 mm
- Thread diameter: M10
- Mounting hole: 18 mm
- Glass thickness range: 8–17.52 mm
- Material: stainless steel AISI 304
- Finish: powder coating – black matt
- Application: mounting on flat surfaces
- Weight: 0.64 kg
- EAN: 5903313204309
Durable powder coating
The fitting surface is covered with powder coating in black matt colour. This finishing method significantly increases the anti-corrosion properties of stainless steel and provides an aesthetically smooth, uniform coating with enhanced fade resistance. As a result, the fitting maintains its attractive appearance for years — regardless of whether it is installed indoors or outdoors.
The point fixing rotula is a reliable mounting element that will work well in glass balustrades, canopies over entrances, partition walls and anywhere that demands mounting stability, weather resistance and modern aesthetics.
Technical data
| Material | AISI 304 |
| Finish | Painted black |
| Mounting System | Flat |
| Glass Thickness [mm] | 8-17,52 |
