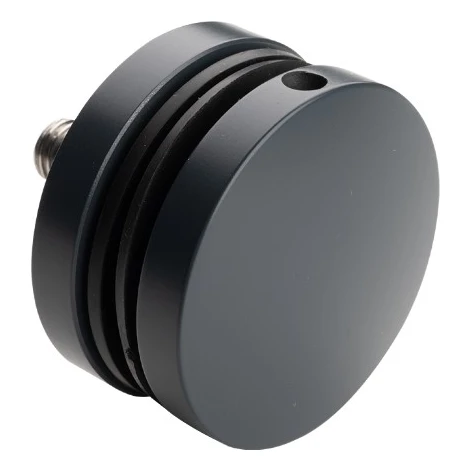

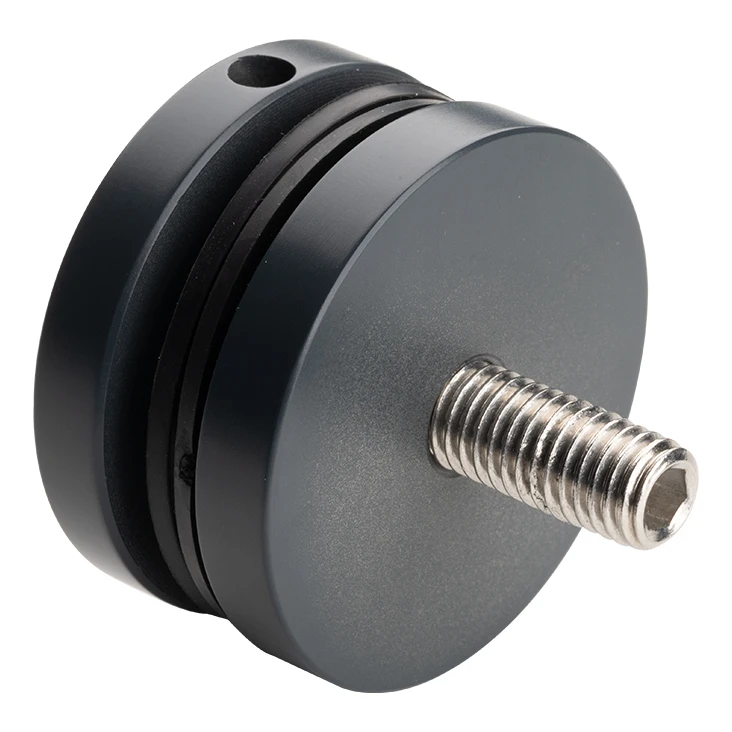

Point-fixing glass clamp 8-17.52mm fi 50/8/M10x50 AISI304 flat system anthracite
Description
Point-fixing glass clamp fi 50 AISI 304 anthracite – glass 8-17.52 mm
Point-fixing glass clamp fi 50 in matt anthracite colour is a robust fixing element designed for modern glass balustrades and toughened glass installations. Made from AISI 304 stainless steel and coated with durable powder paint, it combines aesthetics with high corrosion resistance — suitable for both indoor and outdoor applications.
The clamp is mounted to a flat surface using an M10×50 threaded screw and is designed for glass thickness from 8 to 17.52 mm. The set includes spacing rubbers that ensure stable and secure fixing of the glass panel without risk of damage. The flat mounting system significantly simplifies installation — simply drill a fi 18 mm hole in the glass.
Technical specification
- Clamp diameter: fi 50 mm
- Supported glass thickness: 8–17.52 mm
- Mounting screw thread: M10×50
- Mounting hole in glass: fi 18 mm
- Material: stainless steel AISI 304
- Finish: powder coating – matt anthracite
- Mounting system: to flat surface (flat system)
- Equipment: spacing rubbers included
- Weight: 0.22 kg
- EAN: 5903313204477
Application and benefits for the installer
Anthracite powder finish is currently one of the most popular trends in architecture — it perfectly complements dark window frames, steel facade elements and modern balustrades. The powder coating not only provides an elegant appearance, but most importantly significantly increases the anti-corrosion properties of AISI 304 steel, allowing trouble-free operation on balconies, terraces and staircases. The clamp is designed for mounting on flat surfaces such as steel posts, aluminium profiles or concrete walls.
The colour of the clamp may vary slightly from that shown in the photograph — depending on monitor settings.
Technical data
| Material | AISI 304 |
| Finish | Powder-coated anthracite |
| Mounting System | Flat |
| Glass Thickness [mm] | 8-17,52 |
