Point fixing glass clamp 4-16.76mm ø30/4/M8 AISI304 flat system satin
Description

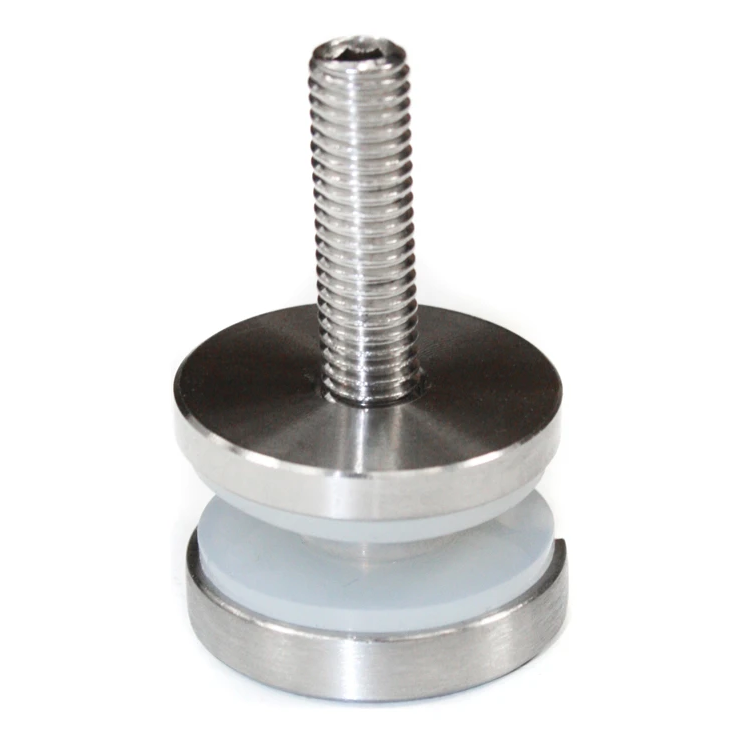

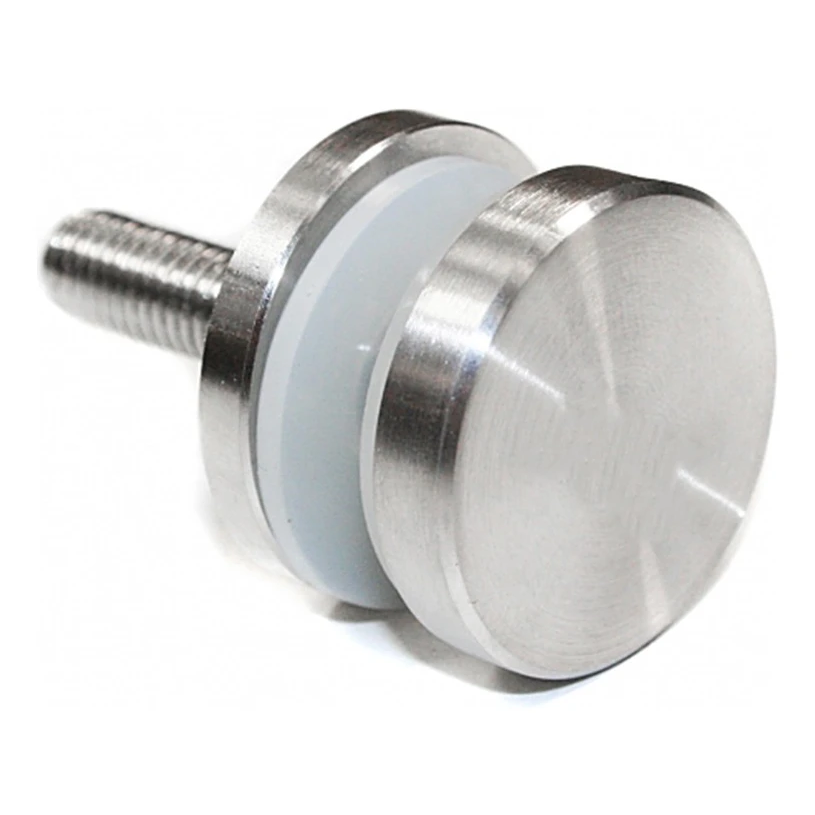

Point fixing glass clamp ø30 mm M8 – AISI 304 steel, satin
Point fixing glass clamp ø30 mm with M8 thread and 4 mm standoff — solid mounting element designed for installing glass balustrades on flat surfaces. Made from stainless steel AISI 304 with satin finish, ensures durability and aesthetic appearance in any installation.
The circular point fixing (spider fitting) enables quick and secure attachment of glass panels in stainless steel balustrades. Construction with 4 mm thick spacer sleeve allows maintaining uniform distance of glass from mounting surface. The set includes complete insulating seals that protect glass from direct contact with steel — eliminating risk of cracking and ensuring quiet, stable operation of the fixing.
Application and compatibility
The clamp is designed for glass thickness from 4 mm to 16.76 mm (including laminated VSG glass). Minimum mounting hole diameter in glass is ø13 mm. Thanks to universal M8 thread, the element easily integrates with typical stainless steel balustrade systems mounted to walls, posts and flat structures.

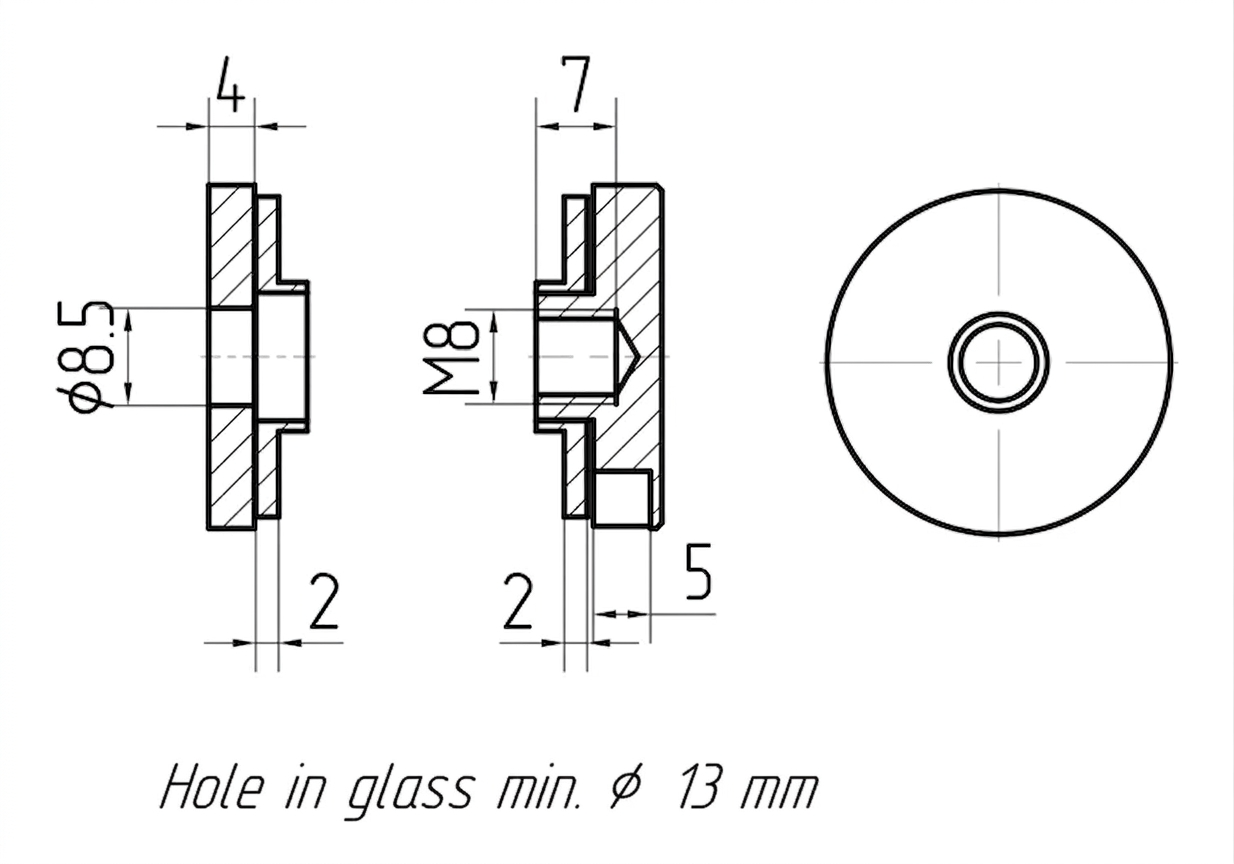

Dimensions and technical parameters
- Clamp diameter: ø30 mm
- Thread: M8
- Through hole diameter: ø8.5 mm
- Standoff (spacer sleeve): 4 mm
- Base thickness: 5 mm
- Threaded hole depth: 7 mm
- Spacer collar height: 2 mm
- Minimum hole in glass: ø13 mm
- Glass thickness: 4–16.76 mm
- Mounting system: flat
Material and finish
- Material: stainless steel AISI 304
- Finish: satin
- Included: complete seals insulating glass from steel
Logistics data
- Weight: 0.1 kg
- Volume: 70 cm³
- EAN: 5903313207713
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 4-16,76 |
