Point fixing for glass fi 50/8/M10x50, glass 8-17.52 mm, AISI 304, flat system, satin
Description

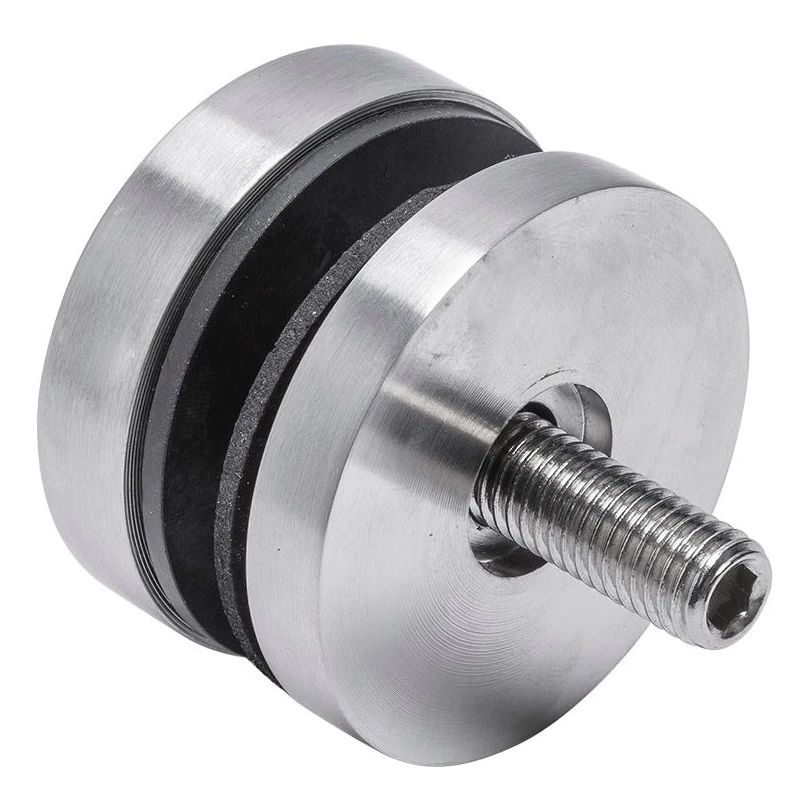

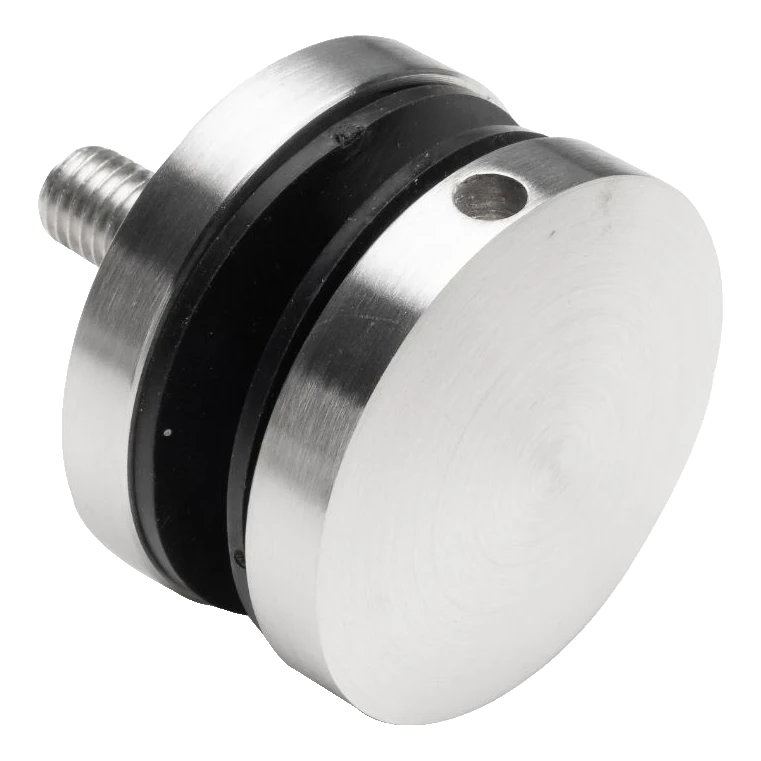

Point Glass Fixing fi 50 mm AISI 304 – M10 Threaded, Satin Finish
Point glass fixing fi 50 mm in AISI 304 stainless steel with a satin finish — a reliable glazing clamp for glass thicknesses from 8 to 17.52 mm, designed for flat surface mounting. Fitted with a threaded M10 standoff, enabling fast and secure installation by direct screwing. The compact design and refined finish make this fitting an excellent choice for professional glass balustrade, partition, and enclosure projects.
Applications and Installation Benefits
This fixing is designed for mounting glass onto flat surfaces — walls, steel columns, and structural frameworks. The flat system with an integrated threaded standoff eliminates the need for additional adapters, speeding up installation and reducing the number of components on site. The satin finish provides an elegant, matt appearance that resists fingerprints, making it ideal for office, retail, and residential environments.

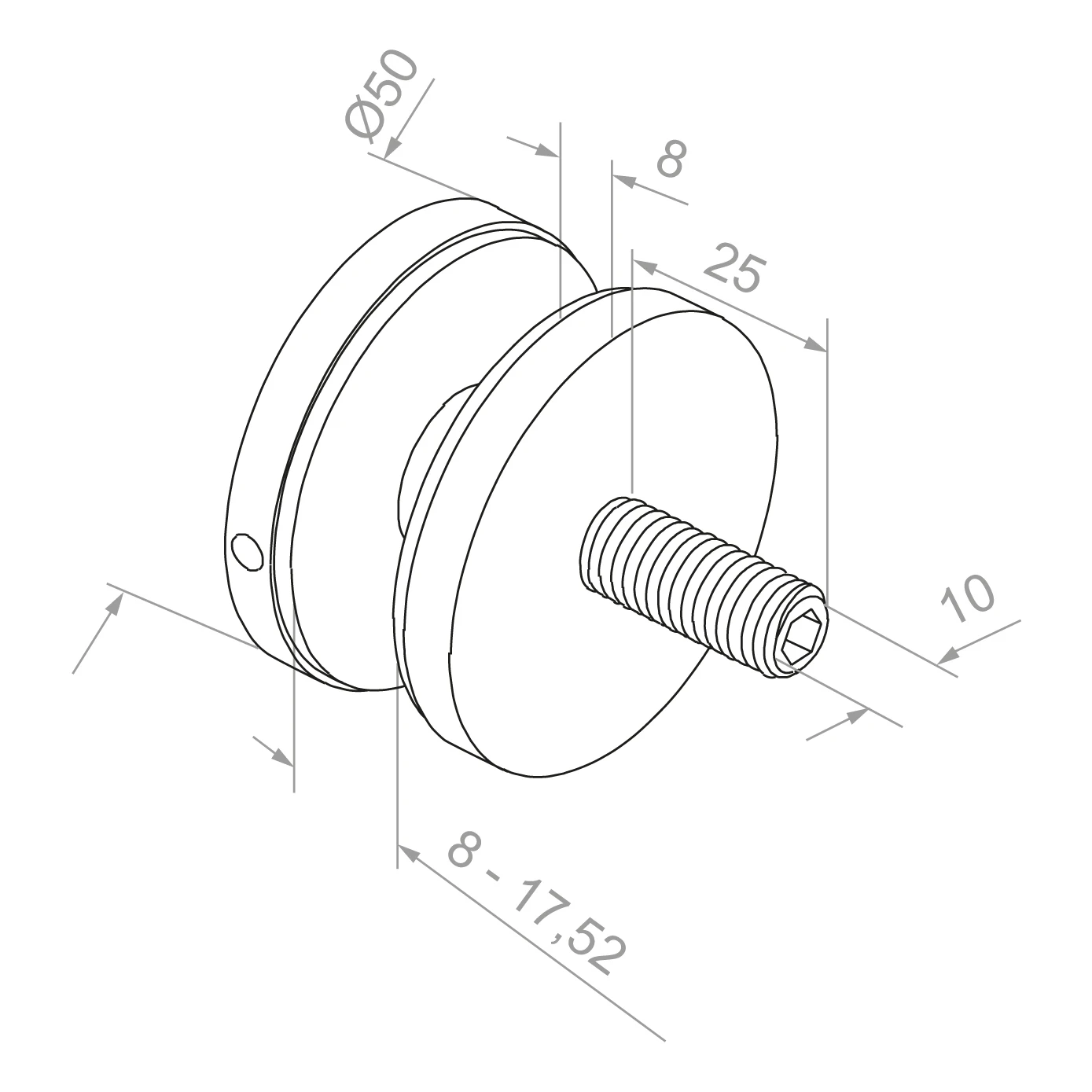

Technical Specifications
- Material: AISI 304 stainless steel
- Surface finish: satin
- Fixing diameter: Ø50 mm
- Disc thickness: 8 mm
- Inner diameter (standoff): 25 mm
- Thread: M10
- Thread length: 10 mm
- Glass thickness range: 8–17.52 mm
- Mounting system: flat (screw-in)
- Weight: 0.295 kg
- Volume: 275 cm³
- EAN: 5901289670449
Glass Compatibility
This fixing accommodates a wide range of glass thicknesses — from single toughened glass at 8 mm through to laminated insulated units up to 17.52 mm thick (e.g. 8.8.4 VSG). Rubber gaskets ensure a secure grip on the glass panel and protect the edges from mechanical damage, while also compensating for minor variations in glass thickness.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 8-17,52 |
