Point fixing for glass fi 50/50 M10x60, glass 8-21.52 mm, AISI 304, flat system, satin
Description

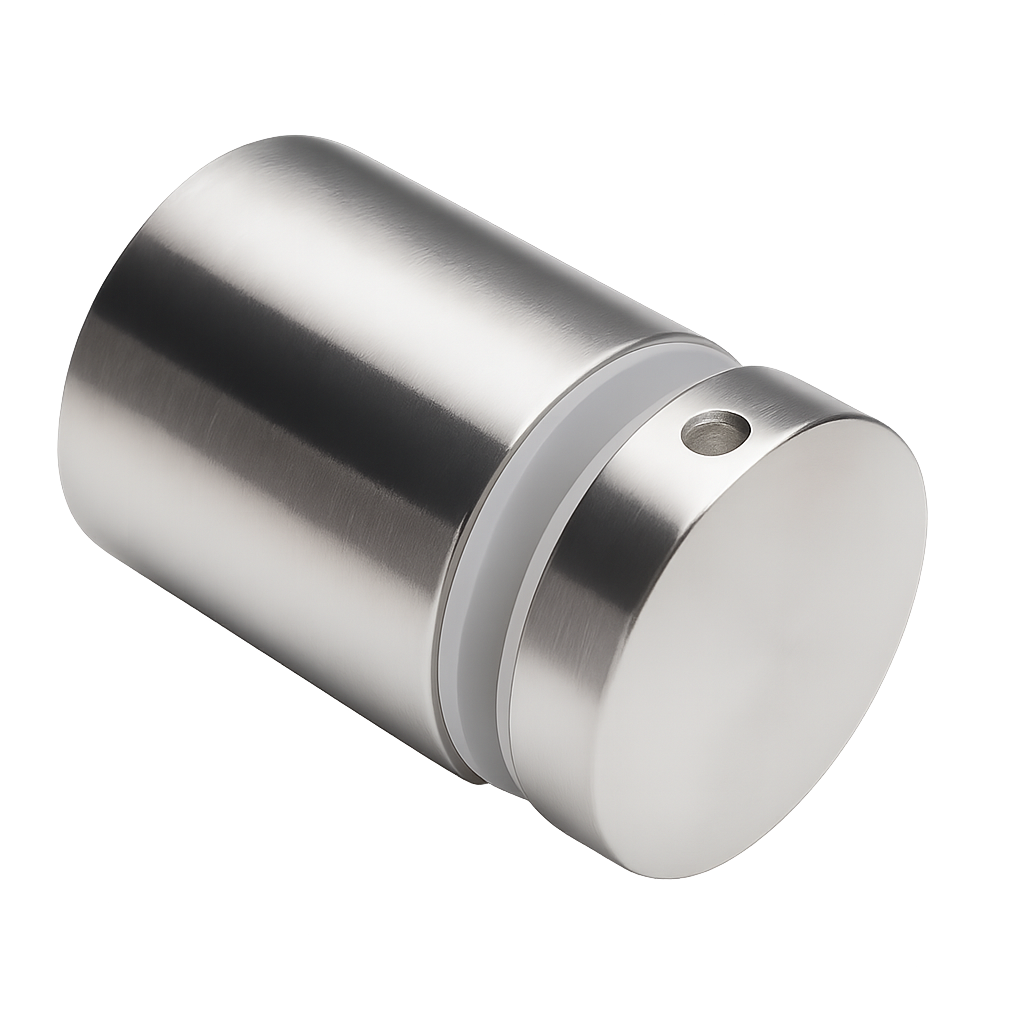

Pinox point fixing glass clamp Ø50 mm AISI 304 satin 8–21.52 mm
The Pinox Ø50 mm point fixing glass clamp is a professional point-fixing component designed for the stable and aesthetically pleasing mounting of glass panels with a thickness of 8 to 21.52 mm. Manufactured from AISI 304 stainless steel with a satin finish, it performs reliably wherever durability, corrosion resistance and a contemporary appearance are required. With an M10 thread and a flat-surface mounting system, it enables fast and repeatable installation of glass balustrades, shopfronts, shower enclosures and internal partitions.
Applications and benefits for installers
The wide range of accepted glass thicknesses (8–21.52 mm) means that a single clamp type accommodates both single toughened panes and multi-layer laminated VSG glass. This reduces the number of stock-keeping units and simplifies order assembly. Fixing is achieved by threading onto an M10×60 bolt, allowing precise clamping pressure adjustment and reducing on-site installation time. The 18 mm diameter mounting hole facilitates accurate positioning and ensures structural stability.

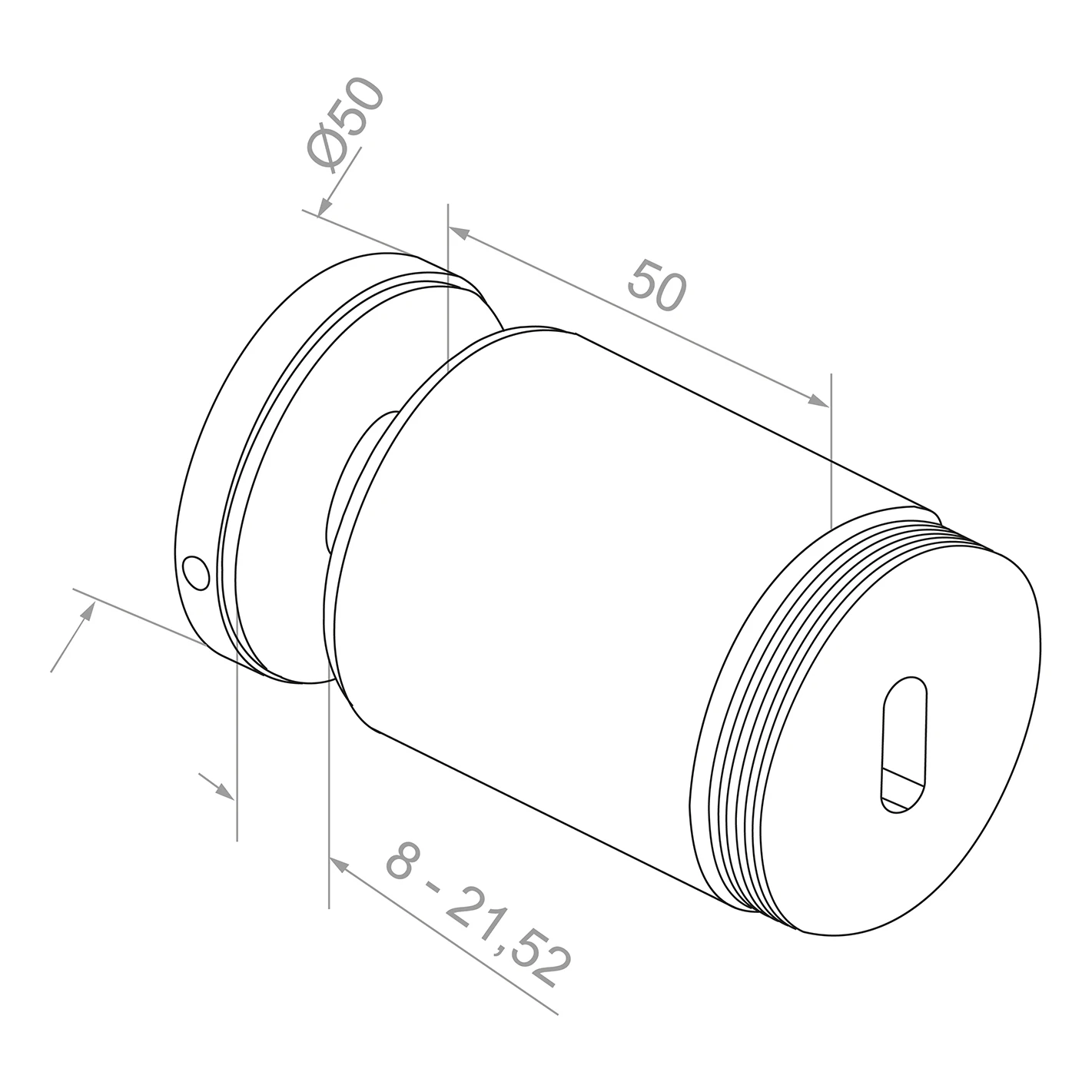

Technical specification
- Clamp diameter: Ø50 mm
- Body length: 50 mm
- Thread: M10×60
- Glass thickness range: 8–21.52 mm
- Material: AISI 304 stainless steel
- Finish: satin
- Base system: for flat surfaces
- Fixing method: screw-in
- Mounting hole: Ø18 mm
- Weight: 0.5 kg
- Volume: 125 cm³
- EAN: 5901289670692
The satin finish on AISI 304 stainless steel guarantees corrosion resistance and a consistent, contemporary appearance when combined with other stainless steel balustrade system components. The product is suitable for both interior and exterior applications — wherever a durable and aesthetically refined point fixing for glass is required.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 8-21,52 |
