Point fixing for glass fi 50/30/M10x70 glass 8-17.52 mm AISI 304 flat system satin

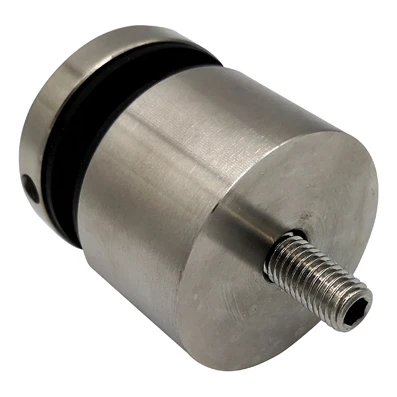

The fi 50 mm point fix glass fitting in stainless steel is a robust fastening element designed for mounting glass panels on flat surfaces. Made from AISI 304 grade steel with a satin finish, it delivers an elegant, contemporary appearance alongside excellent corrosion resistance. Thanks to the threaded M10 stud, the fitting screws directly into a pre-drilled hole in the substrate, significantly simplifying and speeding up the installation of glass balustrades, partition walls, staircase enclosures, and other glass structures.

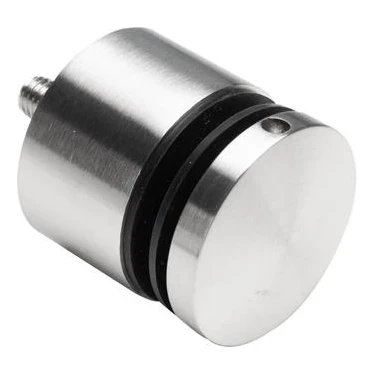

The fitting's design incorporates rubber gaskets (o-rings) to ensure secure yet flexible clamping of the glass without risk of damage. The adjustable glass thickness range of 8 to 17.52 mm means a single fitting accommodates both toughened single-pane glass and laminated VSG glass — eliminating the need to stock multiple variants.

Applications

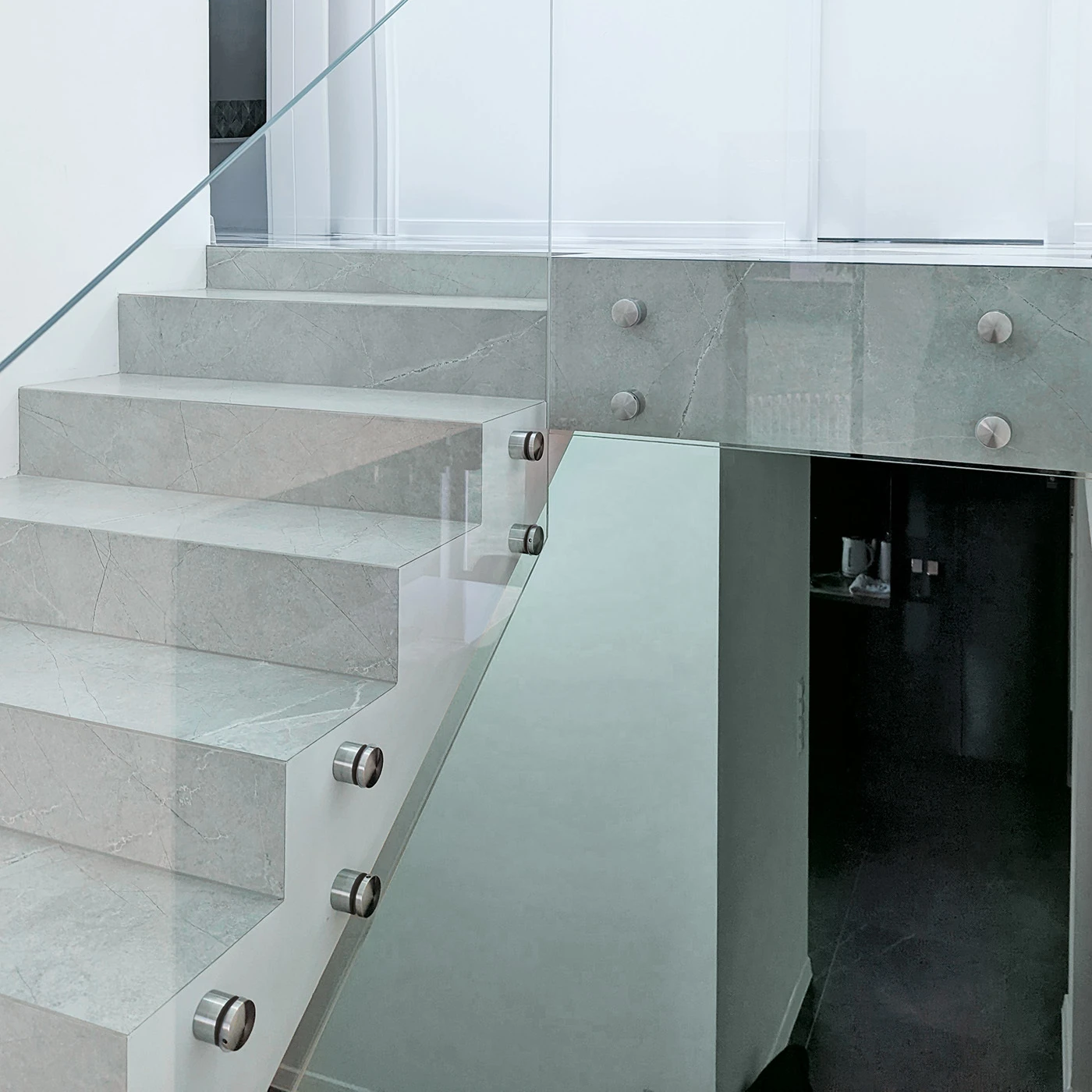

This fitting is designed for installation on flat surfaces — walls, columns, parapets, and structural building elements. It is ideally suited for glass balustrade installations on staircases, balconies, mezzanines, and as point fixings for glass panels in commercial and residential spaces. The flat system provides a minimalist mounting profile that preserves the transparency of the glass structure.

The screw-in threaded stud installation method allows precise positioning of the fitting and ensures a stable, durable connection to the substrate. For installation companies, this means fast assembly without the need for additional adapters or complex clamping systems.

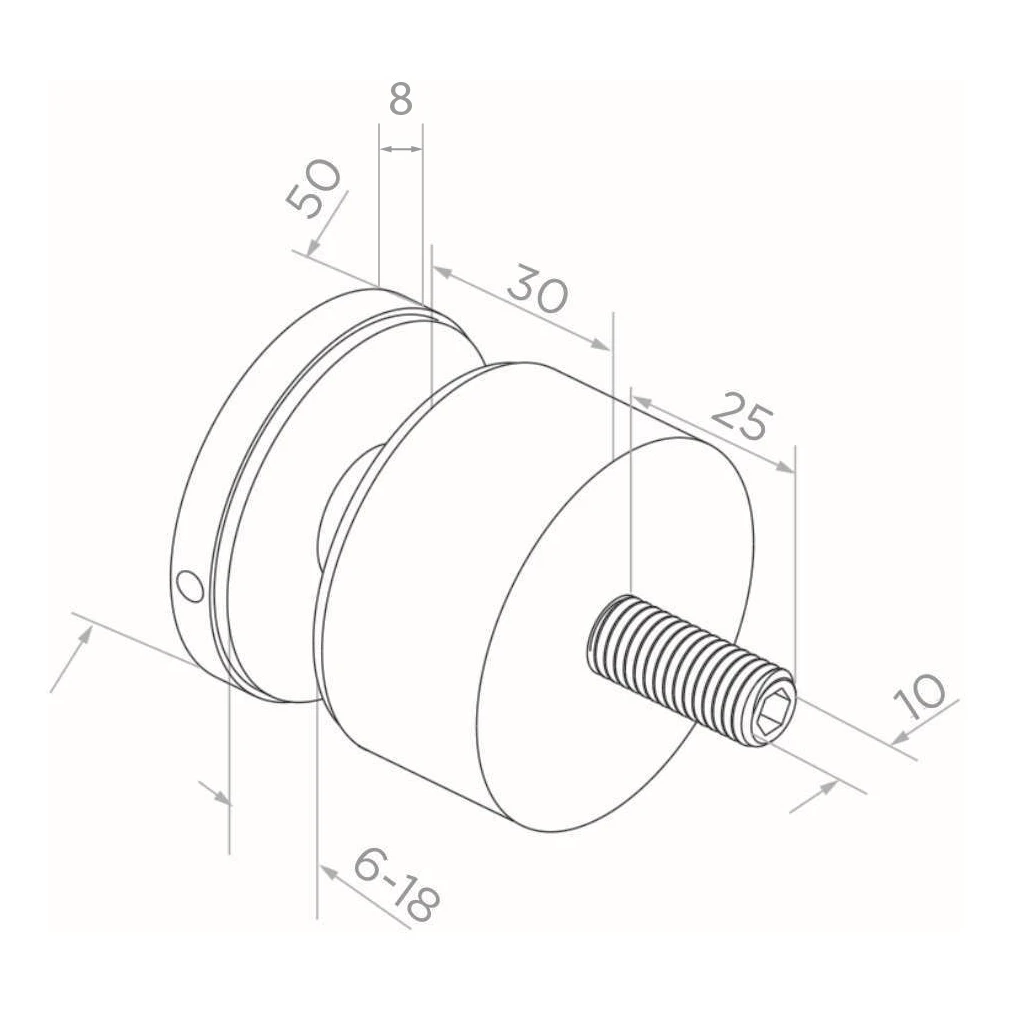

Technical Specifications

• Plate diameter: fi 50 mm
• Base width (depth): 30 mm
• Stud thread: M10
• Thread length: 25 mm
• Compatible glass thickness: 8–17.52 mm
• Glass slot (physical range): 6–18 mm
• Material: AISI 304 stainless steel
• Surface finish: satin
• Mounting system: flat (for flat surfaces)
• Fixing method: screw-in (threaded stud)
• Sealing: rubber o-rings protecting the glass

Logistics Data

• Weight per unit: 0.63 kg
• Packaging volume: 606.9 cm³
• EAN: 5901289670425

The satin finish of AISI 304 stainless steel combines aesthetic appeal with practicality — the matte surface effectively conceals fingerprints and minor marks, which is a significant advantage in high-traffic environments. This fitting is a reliable and elegant component for any glass installation, whether you are working on a residential, commercial, or public building project.
