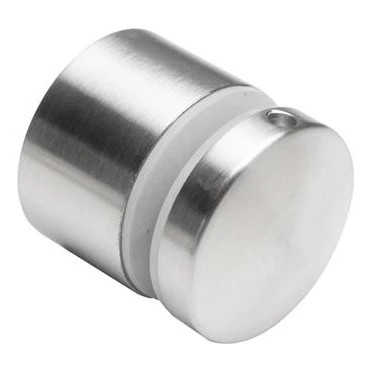

Point fixing for glass fi 50/30/M10x45, glass 8-21.52 mm, AISI 304, flat system, satin
Description
Point Fix Glass Fitting fi 50 mm – AISI 304 Stainless Steel, Glass 8–21.52 mm, Satin
The fi 50 mm point fix glass fitting is a robust fastening element designed for mounting glass panels with a thickness of 8 to 21.52 mm. Manufactured from AISI 304 stainless steel with a satin finish, it offers excellent corrosion resistance and a sleek, contemporary appearance — ideal for balustrades, glass enclosures and partition walls.
The fitting has been designed for installation on flat surfaces — it is secured using an M10 thread, ensuring a firm and stable fixing. The wide range of compatible glass thicknesses (8–21.52 mm) makes it suitable for use with both single-layer toughened glass and multi-layer laminated glass. The satin surface finish gives the fitting a discreet, professional character and makes it easy to keep clean.

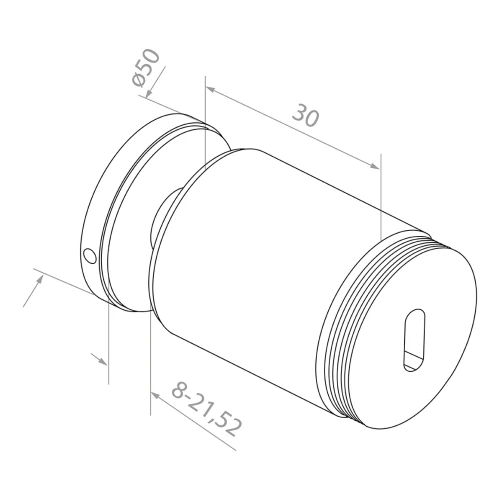

Technical Specifications
- Diameter: 50 mm
- Depth (base width): 30 mm
- Thread: M10×45
- Glass thickness: 8–21.52 mm
- Material: AISI 304 stainless steel
- Finish: satin
- Mounting type: flat surface (flat system)
- Weight: 0.4 kg
- EAN: 5901289670685
This fitting is suitable wherever durability and resistance to weathering are required — both indoors and outdoors. AISI 304 stainless steel guarantees years of service without any signs of corrosion, while the universal glass thickness range reduces the number of variants needed in stock.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 8-21,52 |
