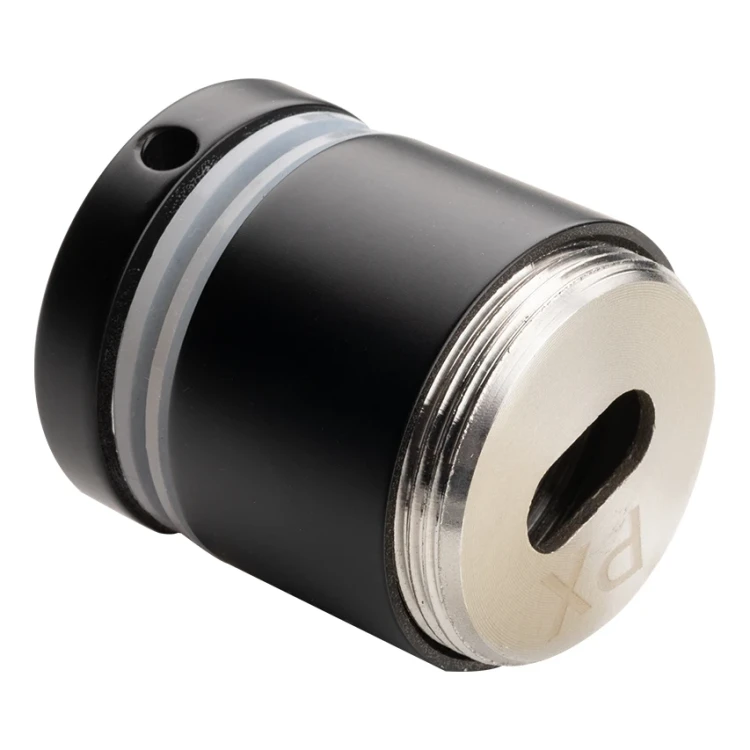

Point fixing for glass fi 50 black – AISI 304. glass 8–21.52 mm

Versatile Applications

The fixing accommodates glass thicknesses from 8 to 21.52 mm, making it compatible with both single panes and multi-layered laminated glass. The flat-system design allows direct mounting to walls, columns, or steel structures — requiring only a 18 mm fixing hole and an M10 thread. This makes installation straightforward and requires no specialist tools.

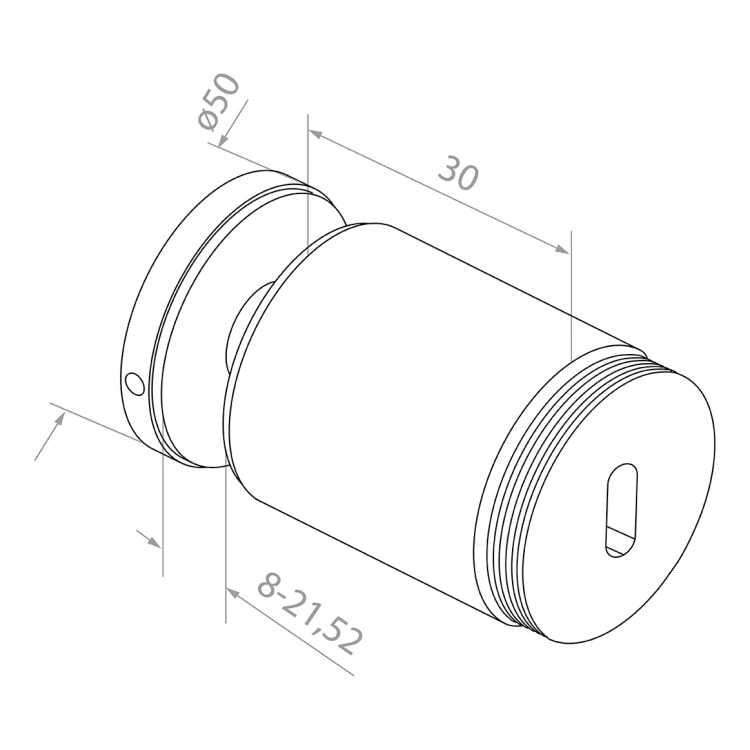

Technical Specifications

• Diameter: 50 mm
• Base width: 30 mm
• Thread: M10
• Fixing hole: 18 mm
• Glass thickness: 8–21.52 mm
• Material: AISI 304 stainless steel
• Finish: powder coated, matt
• Colour: black
• System: flat (for flat surfaces)
• Weight: 0.39 kg

Durability and Weather Resistance

AISI 304 stainless steel provides an excellent base with high resistance to moisture and corrosion. The additional powder coat layer significantly enhances anti-corrosion properties, making the fixing well suited to exterior applications — on terraces, balconies, and façades exposed to variable weather conditions. The matt black finish complements contemporary architectural designs and pairs harmoniously with dark aluminium profiles and glass.

The compact construction and low weight (0.39 kg) simplify logistics and transport, while the straightforward M10 threaded mounting system allows glass balustrade and glazed partition projects to be completed efficiently — even where a large number of fixing points is required.
