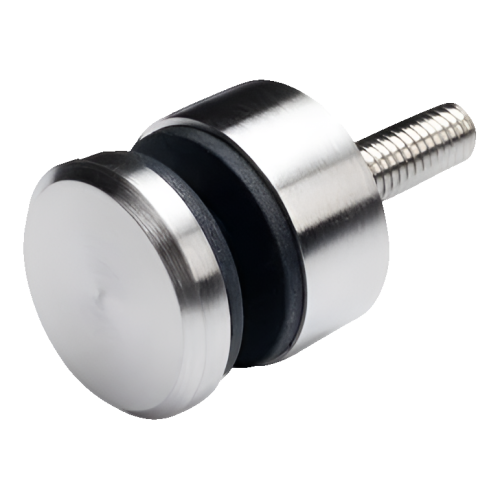

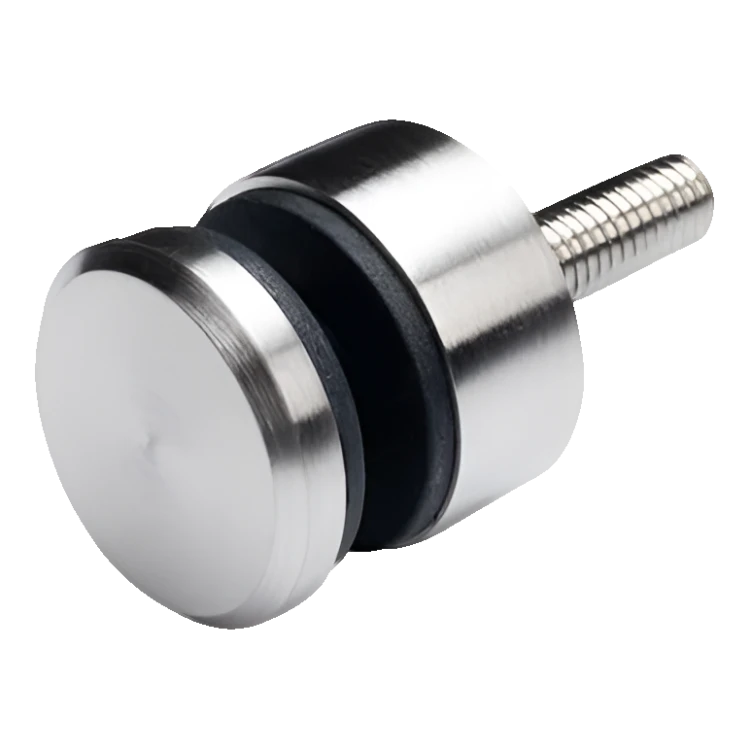

Point Fix Glass Fitting fi 30 mm M8x40 AISI 304 Satin

Point fix glass fitting fi 30 mm in stainless steel AISI 304 with satin finish

Point fix glass fitting (spider fitting) with a diameter of 30 mm and M8x40 thread, designed for installation on flat surfaces. Manufactured from AISI 304 stainless steel with a satin finish, it provides a durable and aesthetically pleasing fixing for glass panels ranging from 6 to 12 mm in thickness. Thanks to the included rubber pressure pads with smooth thickness adjustment, the fitting securely supports and stabilises the mounted glass — whether in balustrades, canopies, or partition walls.

The INOX anti-corrosion protection ensures resistance to weathering, making the fitting suitable for both indoor and outdoor use. The compact design, weighing just 0.08 kg, facilitates handling and installation even when working with a large number of fixing points.

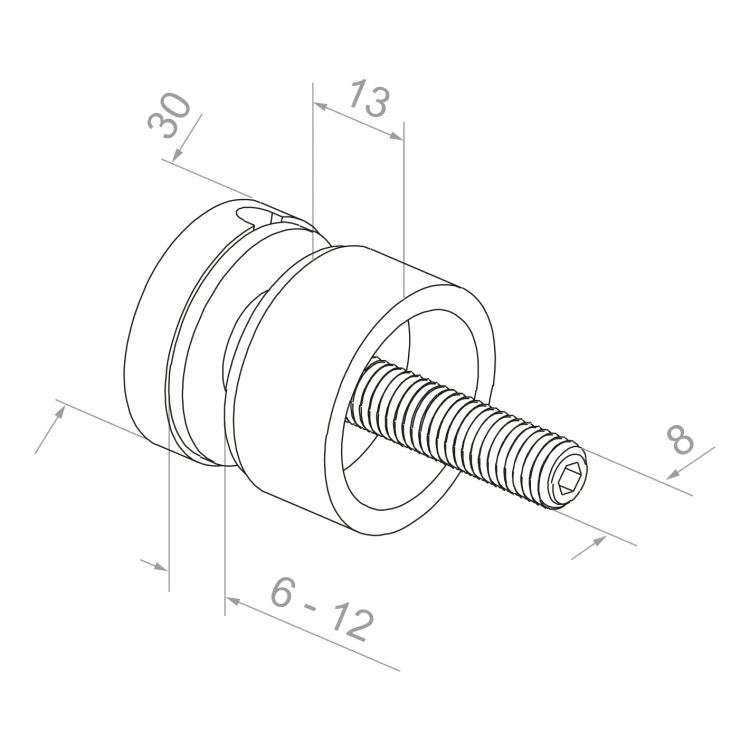

Technical drawing of point fix glass fitting fi 30 mm with dimensions

Technical Specification

Head diameter: 30 mm
Head height: 13 mm
Thread: M8x40
Thread diameter: 8 mm
Glass thickness: 6–12 mm
Mounting system: flat
Material: stainless steel AISI 304
Anti-corrosion protection: INOX
Finish: satin
Weight: 0.08 kg
Volume: 54 cm³
Included: rubber pressure pads with 6–12 mm adjustment

Ładowanie tabeli porównawczej...

Ładowanie galerii...

Technical data

Material	AISI 304
Finish	Satin
Mounting System	Flat
Glass Thickness [mm]	6-12
