Point fixing for glass 8-21.52 mm fi 50/30/M10x45 AISI 304 flat system polished
Description

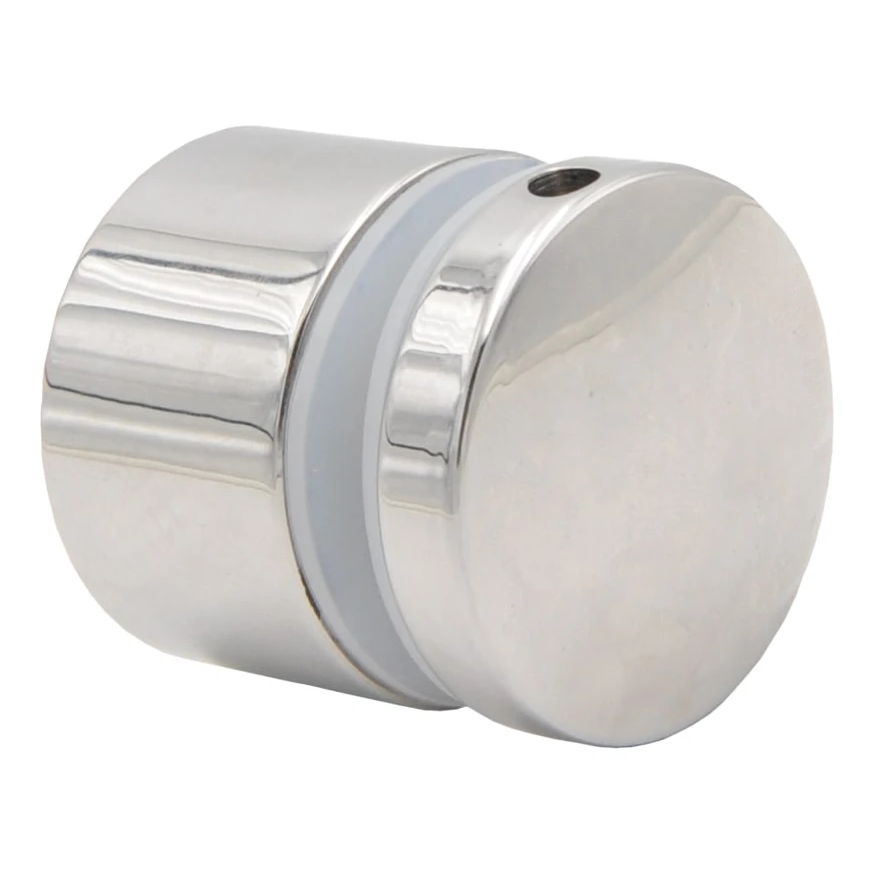

Point fixing spider fitting for glass ø50 mm AISI 304 – flat system, polished
Point fixing spider fitting for glass with a diameter of 50 mm, manufactured from AISI 304 stainless steel with a polished finish. Designed for mounting glass panels with a thickness ranging from 8 to 21.52 mm on flat surfaces — providing stable, aesthetically pleasing and secure glass fixing in balustrades, shopfronts, partition walls and other glazed structures.
Durability and corrosion resistance
AISI 304 stainless steel guarantees years of reliable service without risk of corrosion, even in conditions of elevated humidity. This material is widely used in modern architecture and projects requiring dependable fixing components — both indoors and outdoors. The polished surface gives the fitting an elegant, premium appearance while also making it easy to keep clean.
Versatile application
The wide range of accepted glass thicknesses — from 8 mm to 21.52 mm (including laminated VSG glass) — allows the fitting to be used in numerous configurations: from lightweight glazed partition walls to substantial toughened glass balustrades. Mounting on flat surfaces ensures straightforward and repeatable installation, resulting in faster project completion.

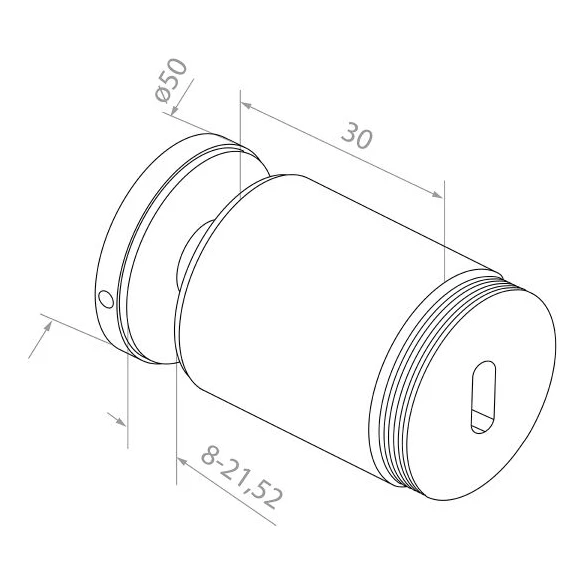

Technical specification
- Material: AISI 304 stainless steel
- Finish: polished
- Fitting diameter: ø50 mm
- Base width: 50 mm
- Standoff body length: 30 mm
- Glass thickness: 8–21.52 mm
- Thread: M10×45
- Fixing hole: 18 mm
- Mounting system: flat
- Weight: 0.4 kg
- Volume: 75 cm³
- EAN: 5903313207317
Simple and reliable installation
The standard M10 thread ensures compatibility with widely available anchors and fixing bolts, eliminating the need for non-standard fasteners. The 18 mm fixing hole allows precise alignment with the prepared substrate. The spider fitting design permits angular adjustment of the clamping pressure, making it easy to compensate for minor surface irregularities and ensuring even contact with the glass panel.
This fitting is suitable wherever an aesthetically pleasing and durable point fixing for glass is required: balustrades, shopfronts, glazed façades, partition walls, canopies and enclosures made from toughened or laminated glass.
Technical data
| Material | AISI 304 |
| Finish | High Gloss |
| Mounting System | Flat |
| Glass Thickness [mm] | 8-21,52 |
