Point fixing for glass 8-21.52 mm fi 50/30/M10x40 AISI 304 flat system gold
Description

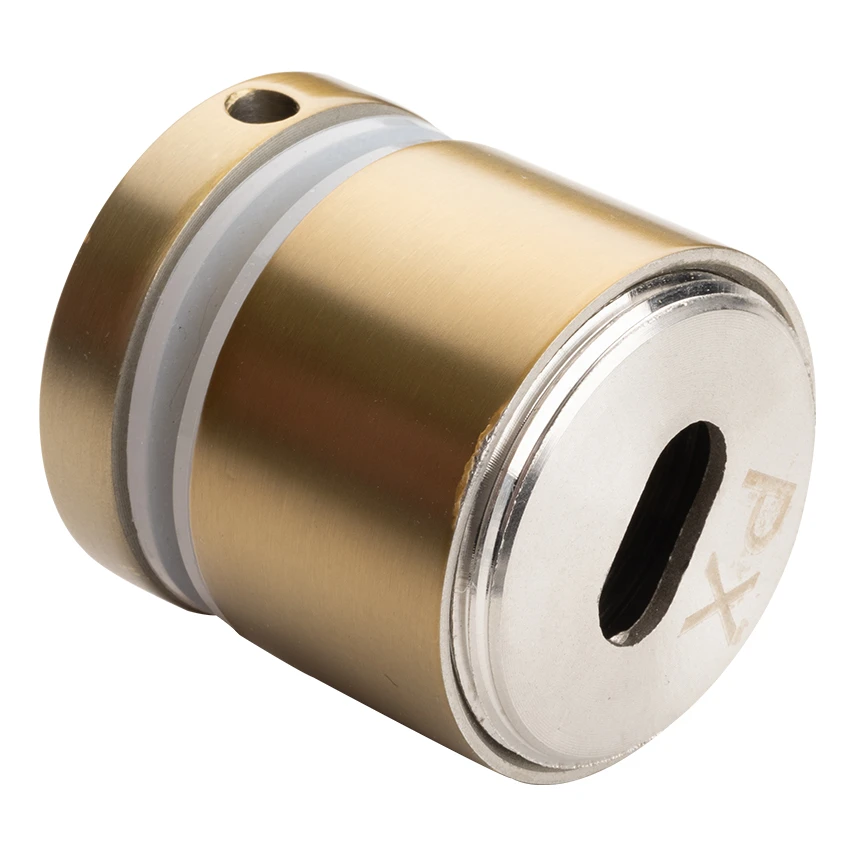

Point Fix Glass Clamp ø50 mm Satin Gold – AISI 304 Stainless Steel, PVD
Point fix glass clamp in an elegant satin gold finish — a professional fixing element designed for mounting glass panels with a thickness of 8 to 21.52 mm. Manufactured from AISI 304 stainless steel, it offers excellent resistance to corrosion and mechanical damage, making it suitable for both interior and exterior applications.
The surface of the clamp is coated with a PVD (Physical Vapour Deposition) layer applied under high-vacuum conditions. This technology creates a hard coating 3–5 microns thick that bonds with the steel substrate, providing durability and resistance to chipping, impact, and weathering. This is particularly important for installers working on exterior projects — glass balustrades, canopies, and structural glazing screens.
Design and Application
The clamp is designed for mounting on flat surfaces — secured by threading onto an M10 bolt. Its cylindrical body with a clamping cap allows for a secure and aesthetically clean glass fixing, while the included protective rubber gaskets prevent direct metal-to-glass contact and eliminate the risk of cracking.

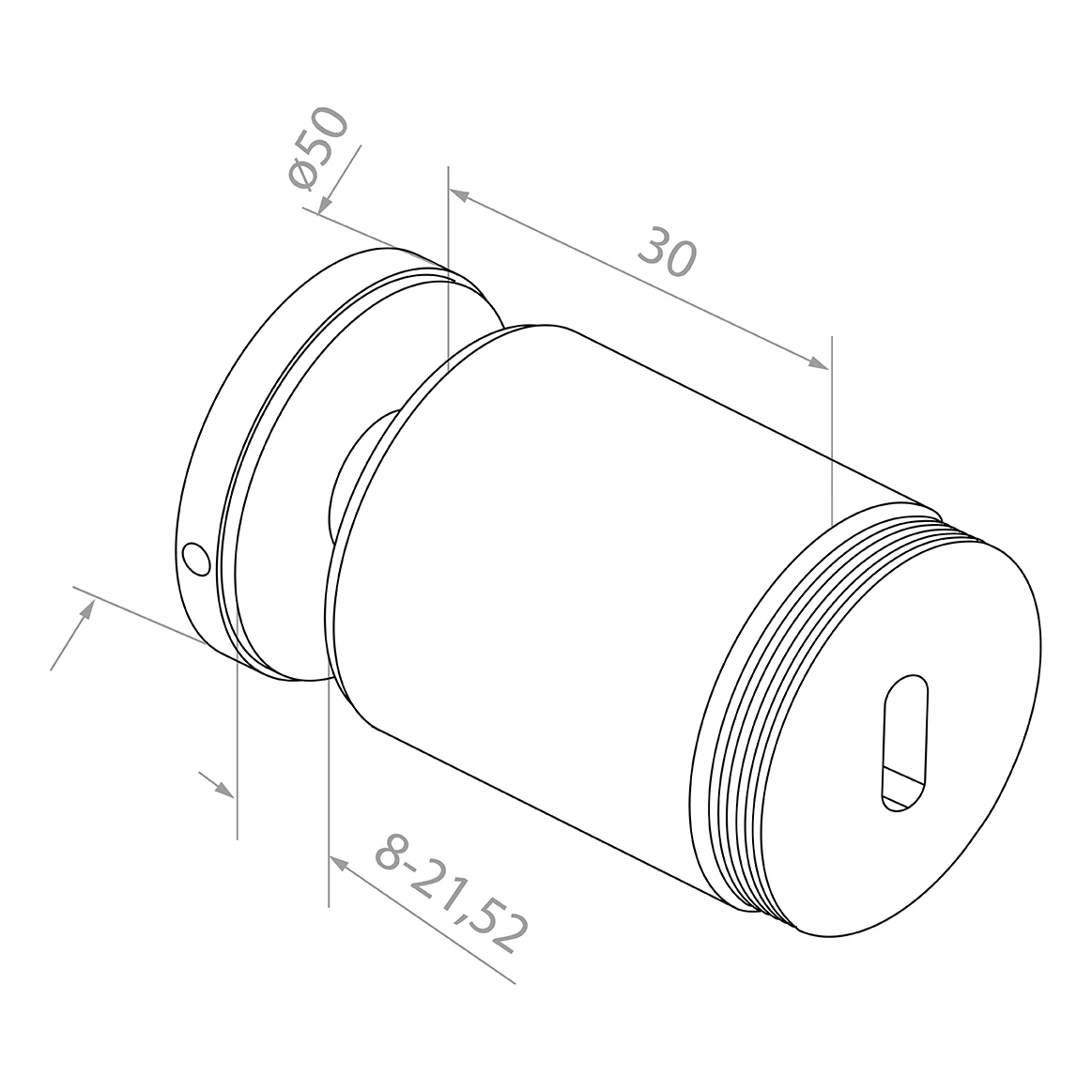

Technical Specifications
- Outer diameter: ø50 mm
- Base width (distance from wall): 30 mm
- Fixing thread: M10 × 40
- Compatible glass thickness: 8–21.52 mm
- Material: AISI 304 stainless steel
- Surface finish: satin gold – PVD coating
- PVD coating thickness: 3–5 µm
- Mounting type: flat surface, screw-in
- Colour: satin gold
- Weight: 0.38 kg
- EAN: 5903313204453
- Included: protective rubber gaskets
Benefits for Installers
The wide range of compatible glass thicknesses (8–21.52 mm) allows a single clamp type to be used across a variety of configurations — from single toughened panes to multi-layer laminated glass assemblies. The compact dimensions and elegant gold finish make this product an ideal choice for high-end installations: glass balustrades, office partitions, display cases, and terrace enclosures.
The combination of AISI 304 steel and a PVD coating guarantees long-lasting resistance to weathering, eliminating the need for frequent maintenance and reducing ongoing costs for the end client. This is a compelling argument when presenting premium-grade, durable solutions to discerning clients.
Technical data
| Material | AISI 304 |
| Finish | Gold PVD |
| Mounting System | Flat |
| Glass Thickness [mm] | 8-21,52 |
