Point fixing for glass 8-17.52mm fi 50/8/M10x50 AISI 304 flat system satin
Description

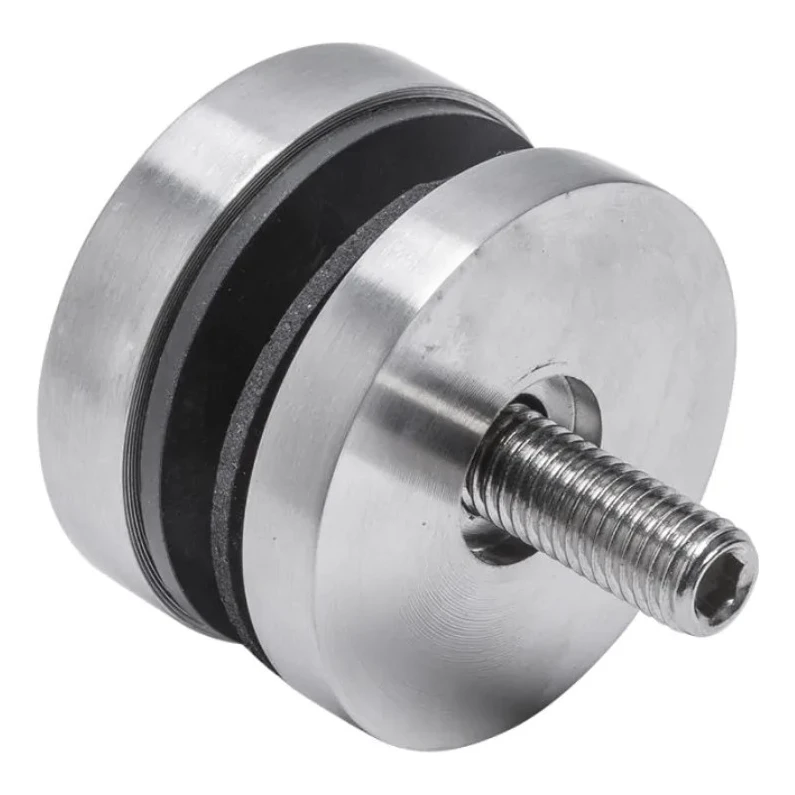

Point Fix Glass Fitting ø50 mm AISI 304 – M10 Thread, Satin Finish
Point fix glass fitting with a diameter of 50 mm is a robust fastening element manufactured from AISI 304 stainless steel with a satin finish. Designed for mounting glass panels with a thickness ranging from 8 to 17.52 mm, it is equally suited for use in balustrades, canopies, and façade constructions. Thanks to the hex socket in the threaded stud, installation is quick and straightforward — a simple Allen key is all that is required.
Design and Application
The fitting consists of two clamping discs separated by rubber gaskets, which protect the glass panel from damage and ensure flexible, even pressure. The M10 threaded stud with a length of 25 mm allows secure fixing into a flat surface — making this element ideally suited for use in glass balustrade systems, partition walls, entrance canopies, and decorative panels.
AISI 304 stainless steel provides excellent corrosion resistance, allowing the fitting to be used both indoors and outdoors. The satin surface finish gives the element an attractive, contemporary appearance and pairs perfectly with other stainless steel accessories.

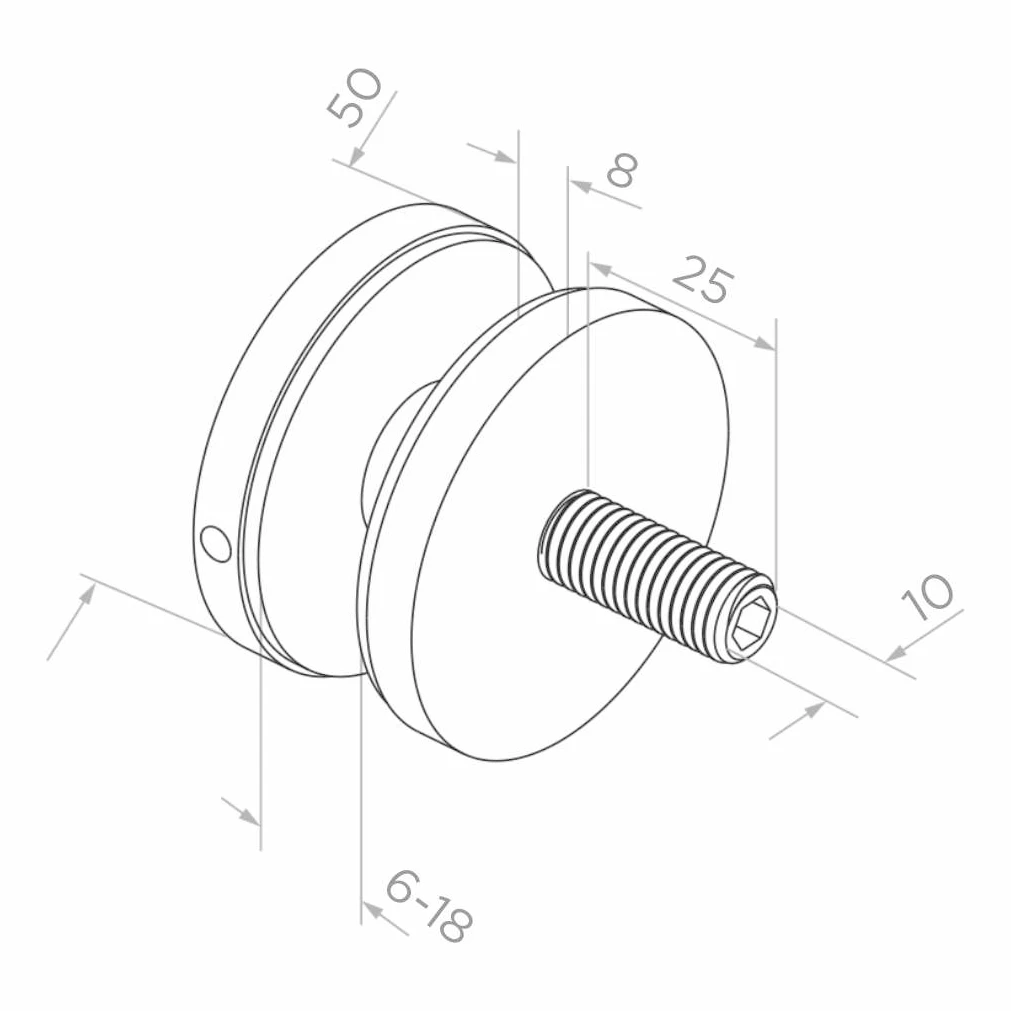

Dimensions and Technical Specifications
- Outer diameter: 50 mm
- Clamping disc thickness: 8 mm
- Stud thread: M10
- Threaded stud length: 25 mm
- Thread diameter: 10 mm
- Glass thickness range: 8–17.52 mm
- Clamping range (distance between discs): 6–18 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Mounting system: flat (screw-in to flat surface)
- Socket type: hex socket (Allen key)
- Weight: 0.275 kg
- Packaging volume: 250 cm³
- EAN: 5901289670418
Benefits for the Installer
- Wide glass thickness range (8–17.52 mm) — a single fitting compatible with many glass types, including toughened and laminated
- Fast installation — M10 thread with hex socket enables efficient fixing without specialist tools
- Rubber gaskets included protect the glass from scratches and ensure even, consistent pressure
- Corrosion resistance — AISI 304 steel guarantees durability in variable weather conditions
- Versatile application — balustrades, canopies, glass partitions, decorative panels
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 8-17,52 |
