Point fixing for glass 8-17.52mm ø 50/50/M10x90 AISI304 flat system satin
Description

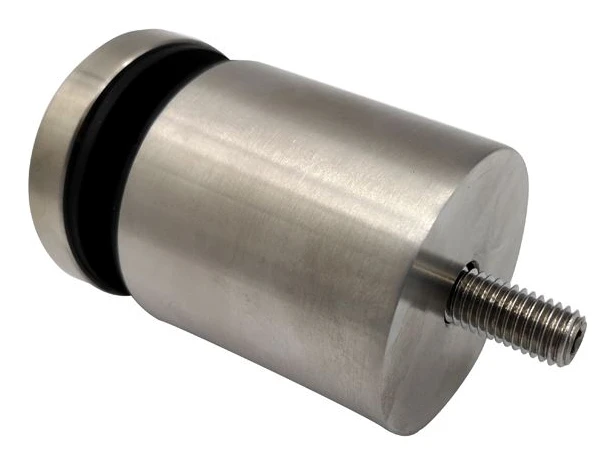

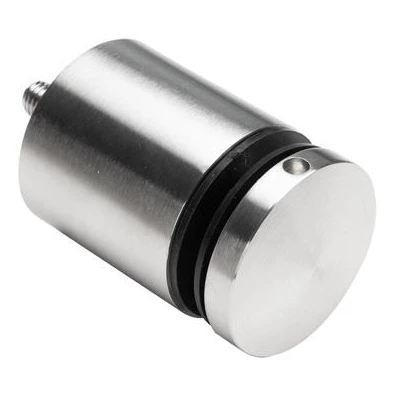

Point fixing for glass ø 50 mm – AISI 304 stainless steel, satin
Point fixing for glass with diameter 50 mm made from AISI 304 stainless steel with satin finish. Designed for mounting glass panels with thickness from 8 to 17.52 mm — handles both single-layer glass and VSG laminated glass. Thanks to the use of stainless steel, the fitting is suitable for installation both inside buildings and outdoors, maintaining durability and aesthetics even in demanding weather conditions.
Construction and installation
The fitting is a screw-in element, equipped with a threaded stud M10 with length 25 mm, which allows for secure connection to the load-bearing structure — post or steel profile. The spacer body with length 50 mm ensures stable spacing of the glass panel from the mounting substrate. Between the clamping plate and body there are rubber seals that protect the glass from mechanical damage and eliminate point stresses. The system is designed for mounting on flat surfaces.

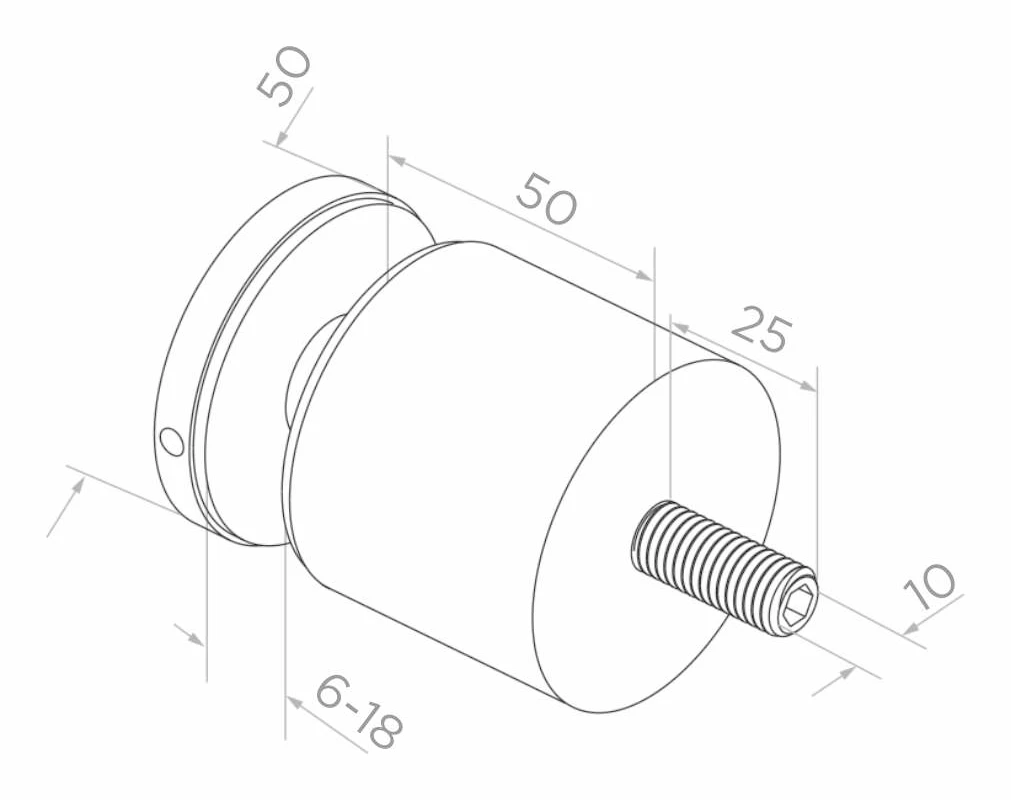

Dimensions and technical data
- External diameter (front and body): 50 mm
- Spacer body length: 50 mm
- Mounting stud thread: M10
- Threaded stud length: 25 mm
- Stud diameter: 10 mm
- Glass thickness range: 8–17.52 mm
- Mounting gap (adjustment range): 6–18 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Mounting system: flat (for flat surfaces)
- Fixing method: screw-in
- Weight: 0.95 kg
- Volume: 650 cm³
- EAN: 5901289670432
Application
The point fixing will work well wherever elegant and durable mounting of glass panels is required — in glass balustrades, partition walls, entrance installations, canopies over doors or fencing. The satin finish gives the installation a modern, professional character and complements both raw steel construction elements and minimalist architecture.
Benefits for installer
- Wide glass thickness adjustment range (8–17.52 mm) — one fitting type for various configurations
- M10 thread ensures compatibility with popular profiles and balustrade posts
- Rubber seals included protect glass and facilitate precise panel levelling
- AISI 304 stainless steel guarantees corrosion resistance — no need for additional protection
- Satin surface requires no polishing and masks minor wear marks
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 8-17,52 |
