Point fixing for glass 8-17.52 mm fi 50/8/M8x45 AISI 304 flat system satin
Description

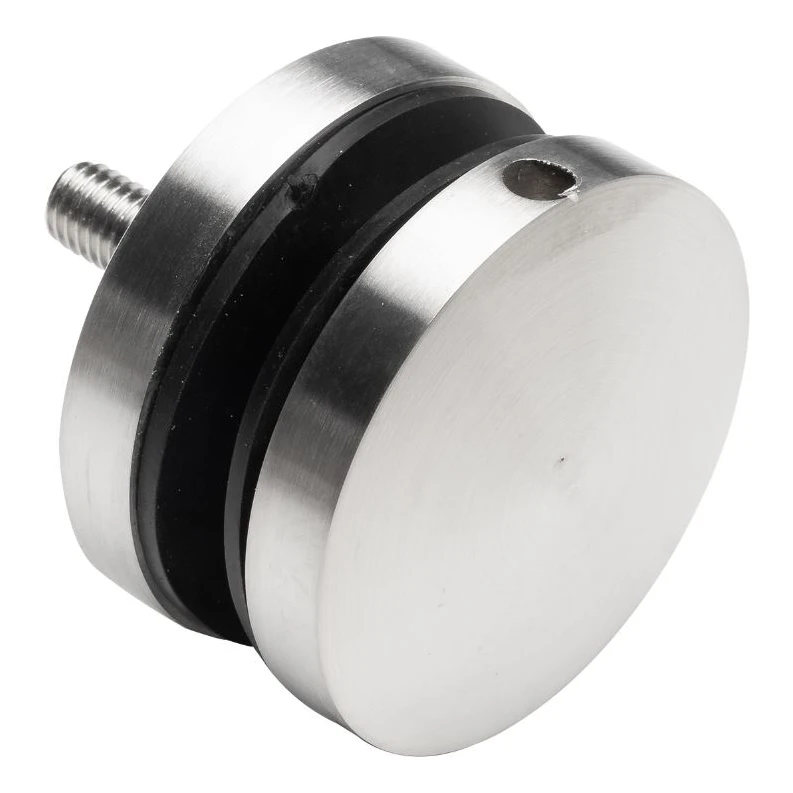

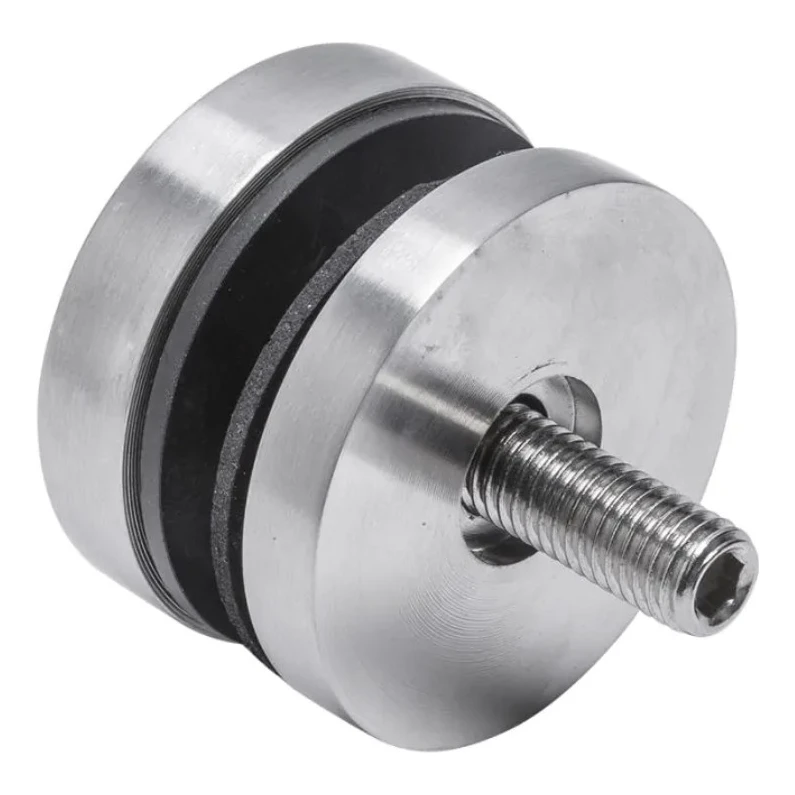

Point fixing for glass fi 50 mm – stainless steel AISI 304, satin finish
Point fixing for glass fi 50 mm is a robust fastening element designed for mounting glass panels with a thickness ranging from 8 to 17.52 mm. Manufactured from AISI 304 stainless steel with a satin finish, it offers lasting durability and an elegant appearance in both interior and exterior applications. Thanks to the flat system with an M8 thread, installation is quick and secure — simply screw the fixing into the prepared flat surface.
Versatile applications
This fixing is ideally suited for glass balustrades, all-glass enclosures, office partitions, and entrance canopies. The flat system allows mounting to surfaces such as steel columns, aluminium profiles, and welded structures. Rubber gaskets protect the glass from mechanical damage and compensate for minor surface irregularities, ensuring a safe and secure clamping of panels across a wide range of thicknesses — from single panes of 8 mm to laminated glass of 17.52 mm (e.g. 2 × 8.76 mm with a PVB interlayer).

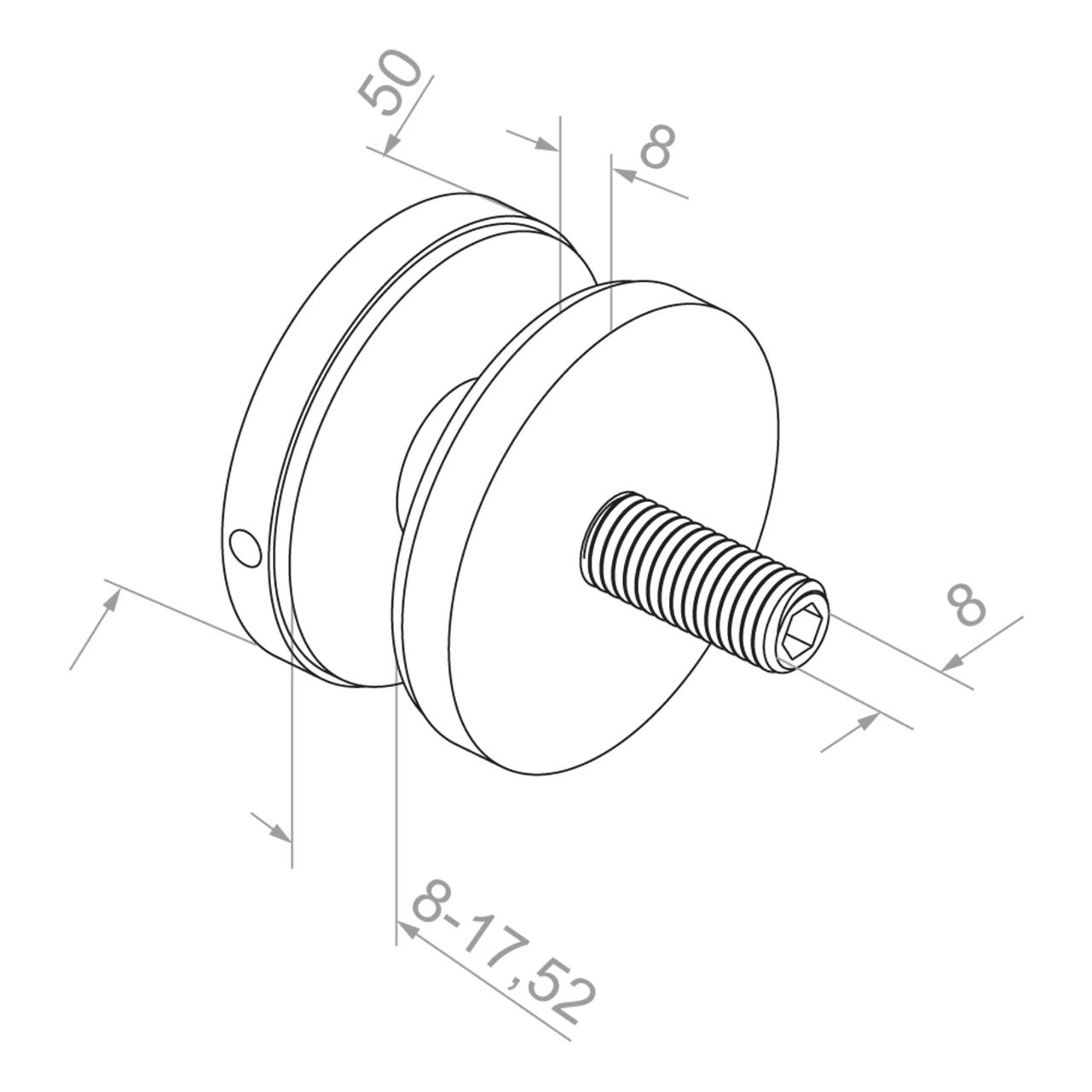

Dimensions and technical specifications
- Plate diameter: fi 50 mm
- Clamping plate thickness: 8 mm
- Glass thickness range: 8–17.52 mm
- Stud thread: M8 × 45 mm
- Stud diameter: 8 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Fixing system: flat (for flat surfaces)
- Installation method: screw-in
- Weight: 0.29 kg
- Volume: 225 cm³
- EAN: 5901289670395
Benefits for the installer
The compact design and low weight (0.29 kg) make transportation and storage straightforward, even for large orders. The M8 thread is a widely used standard, allowing compatibility with common anchors and chemical fixings readily available on the market. The satin finish of AISI 304 stainless steel requires no additional maintenance, retaining its refined appearance for years to come. The broad glass thickness tolerance (8–17.52 mm) means that a single fixing type accommodates numerous configurations — from toughened panes to laminated assemblies — simplifying logistics and reducing the number of stock-keeping units.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 8-17,52 |
