Point fixing for glass 8-17.52 mm fi 50/8/M8x45 AISI 304 flat system black
Description

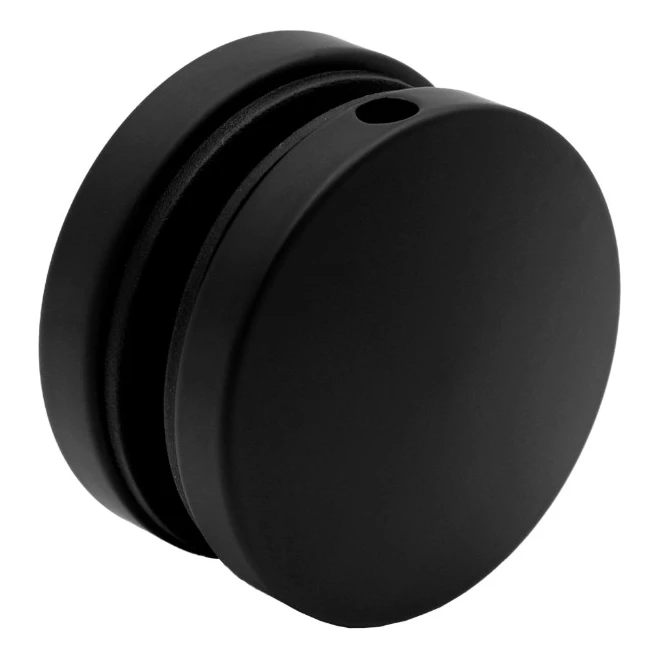

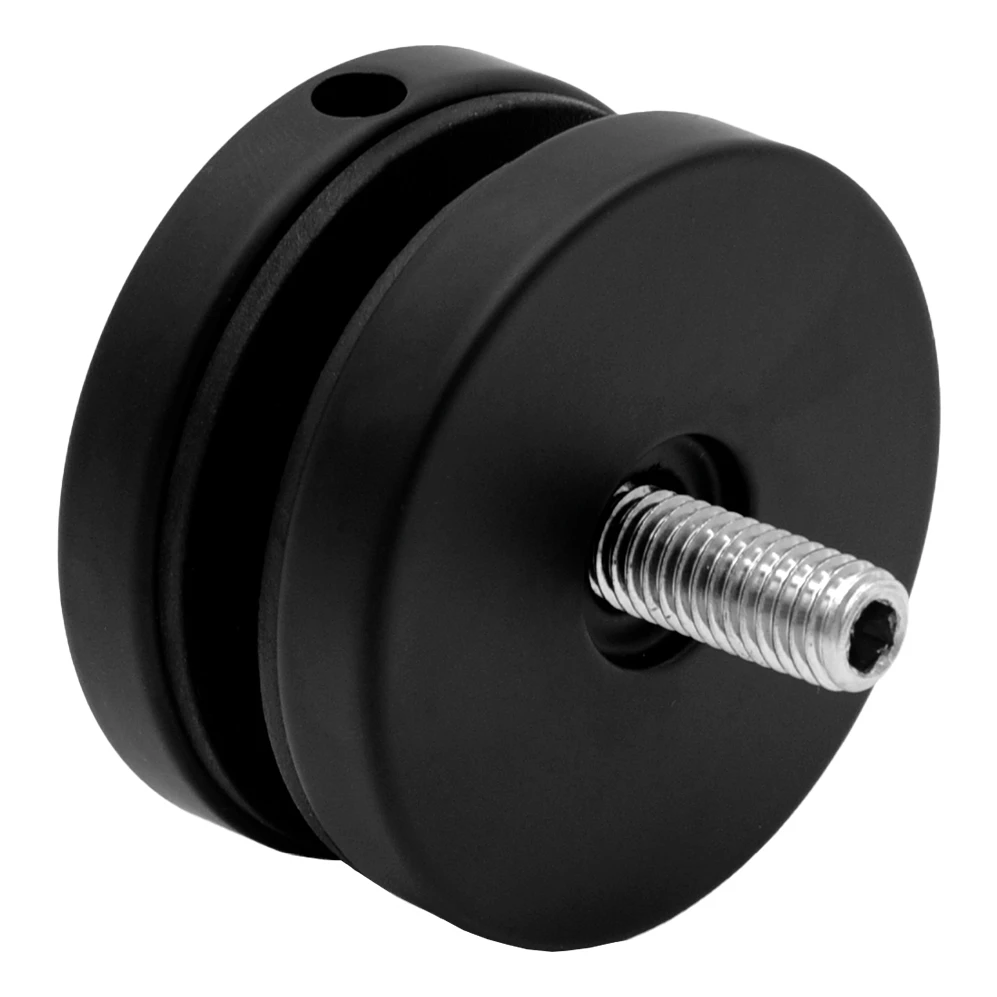

Point Fix Glass Fitting fi 50 mm Matt Black – AISI 304 Steel, Glass 8–17.52 mm
Point fix glass fitting of the rotule type with a diameter of 50 mm, designed for mounting on flat surfaces. Manufactured from AISI 304 stainless steel and finished with matt black powder coating, it combines excellent corrosion resistance with an elegant, contemporary appearance. Suitable for both interior and exterior applications — fully resistant to weathering.
The fitting accommodates glass thicknesses from 8 mm to 17.52 mm, making it a versatile solution for both single-pane and laminated glass (e.g. VSG/laminated safety glass). The M8×45 threaded stud ensures a secure and stable fixing into the substrate, while the 16 mm mounting hole allows for precise positioning.

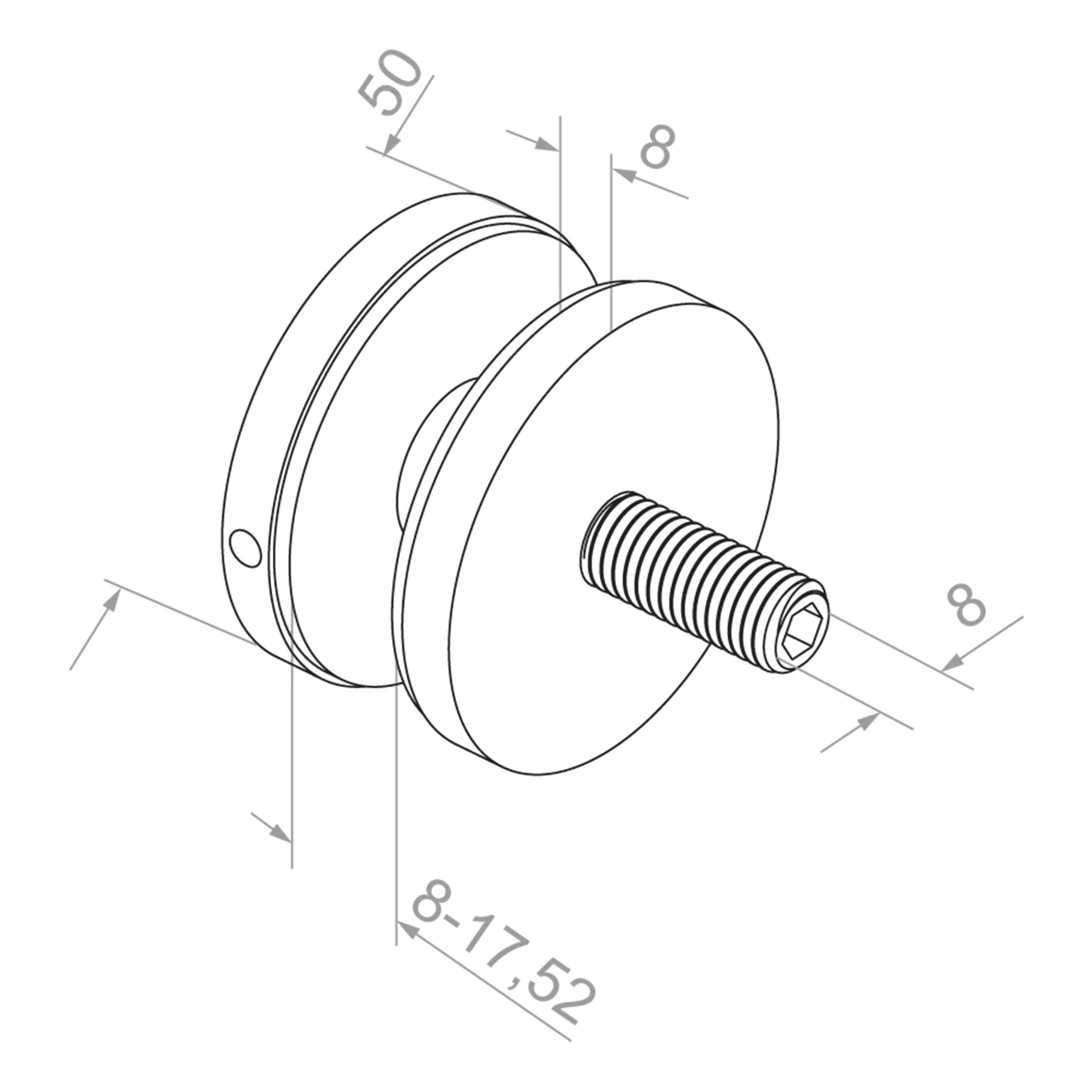

Dimensions and Mounting Data
- Fitting diameter: 50 mm
- Standoff distance (from surface): 8 mm
- Accepted glass thickness: 8–17.52 mm
- Mounting thread: M8×45
- Mounting hole diameter: 16 mm
- Front disc thickness: 8 mm
Technical Specification
- Material: AISI 304 stainless steel
- Finish: powder coated – matt black
- Mounting system: flat (for flat surfaces)
- Colour: matt black
- Weight: 0.28 kg
- EAN: 5903313204286
Applications and Installer Benefits
This point fix fitting is ideal for installing glass balustrades, partition walls, shower enclosures and decorative glass panel features. The wide accepted glass thickness range (8–17.52 mm) means a single fitting model can be used across a variety of projects — eliminating the need to stock multiple variants. The powder coat finish significantly enhances corrosion resistance, ensuring a lasting, attractive appearance even in external applications exposed to moisture and fluctuating temperatures.
Technical data
| Material | AISI 304 |
| Finish | Painted black |
| Mounting System | Flat |
| Glass Thickness [mm] | 8-17,52 |
