Point fixing for glass 8-17.52 mm fi 30/30 M8x80 AISI 304 flat system satin
Description

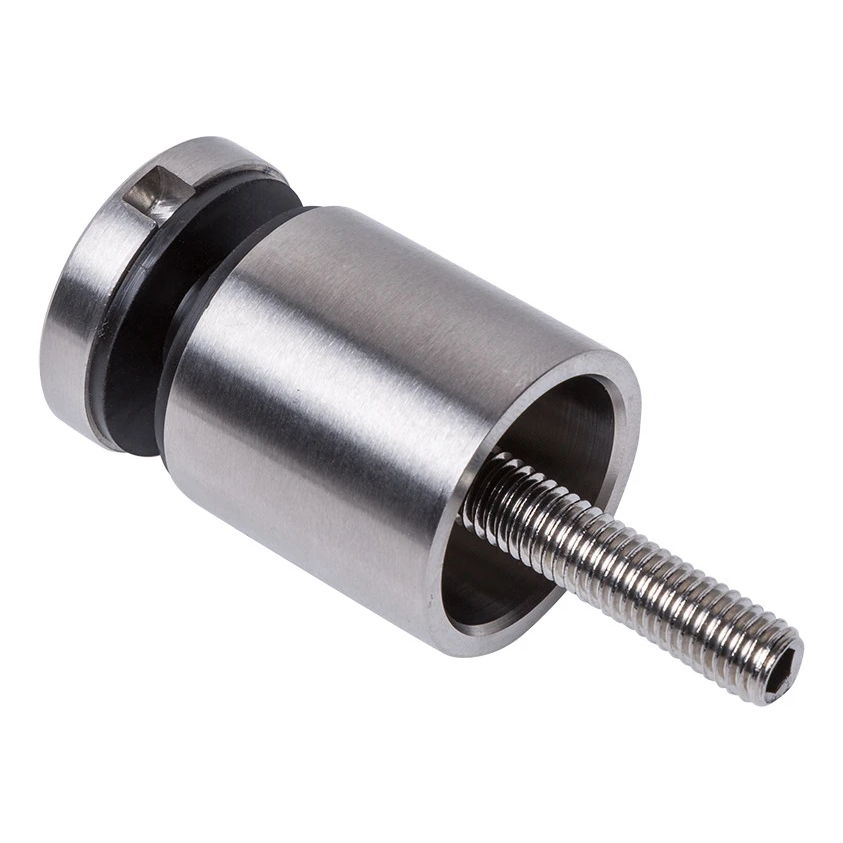

Point fixing for glass fi30 M8 stainless steel AISI 304 satin
Point fixing for glass in AISI 304 stainless steel with a satin finish — a robust mounting component designed for securing glass panels with a thickness of 6 to 18 mm to flat surfaces. The precision-machined body with a diameter of 30 mm and M8 thread provides a secure and durable fixing for glass panels in both interior and exterior applications.
Versatile applications
This screw-in point fixing is ideally suited for glass balustrades, partition walls, shower enclosures, glass canopies and other structures where a glass panel must be fixed at a single point to a flat surface. The adjustable glass thickness range (6–18 mm) accommodates both single-layer toughened glass and laminated VSG glass. The satin finish lends a refined, contemporary aesthetic that complements brushed stainless steel elements seamlessly.

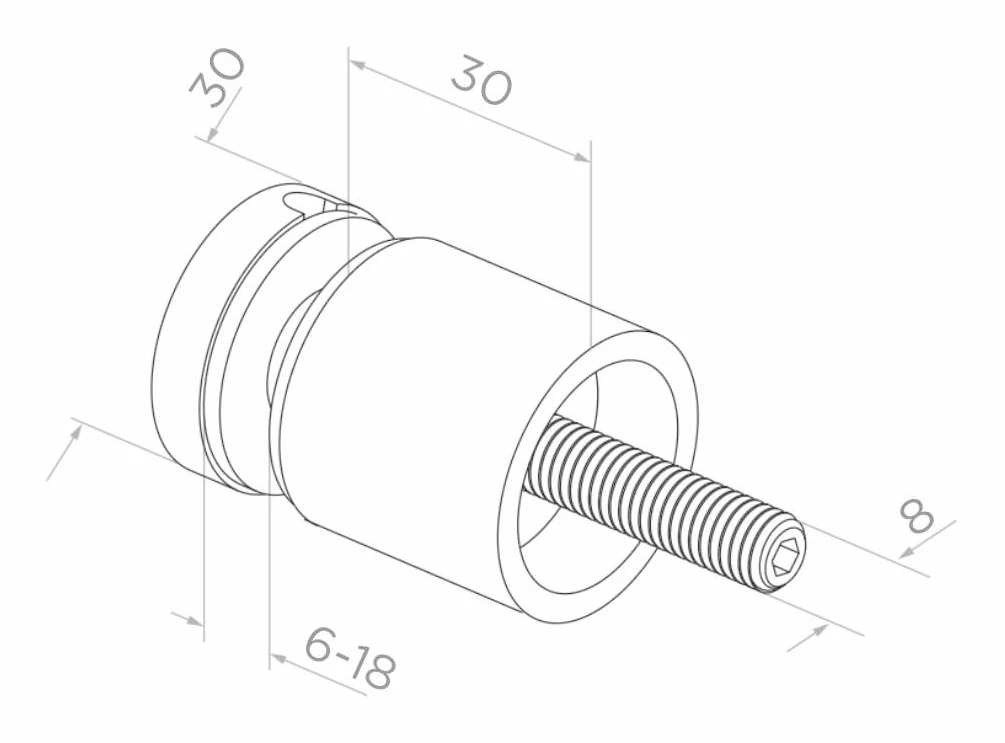

Dimensions and technical specifications
- Body diameter: 30 mm
- Standoff length (distance of glass from surface): 30 mm
- Stud thread: M8
- Compatible glass thickness range: 6–18 mm
- Material: AISI 304 stainless steel
- Surface finish: satin (brushed)
- Fixing type: screw-in to flat surface
- Weight: 0.125 kg
- Volume: 66.6 cm³
- EAN: 5901289675024
AISI 304 stainless steel is an austenitic grade offering high corrosion resistance, ensuring long-term, trouble-free performance in both dry interiors and moisture-exposed environments. A rubber gasket between the fixing components protects the glass from direct contact with metal, eliminating the risk of stress fractures.
Quick on-site installation
The fixing design allows for efficient installation — the M8 threaded stud screws directly into a pre-drilled hole in the load-bearing flat surface (e.g. steel profile, post, or worktop), and the glass panel is clamped between the spacer elements with gaskets. The adjustable glass thickness range of 6–18 mm eliminates the need to order separate variants for different glazing types, simplifying logistics and reducing stock requirements.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 8-17,52 |
