Point fixing for glass 6-12 mm fi 30/13/M8x40 AISI 304 flat system copper
Description

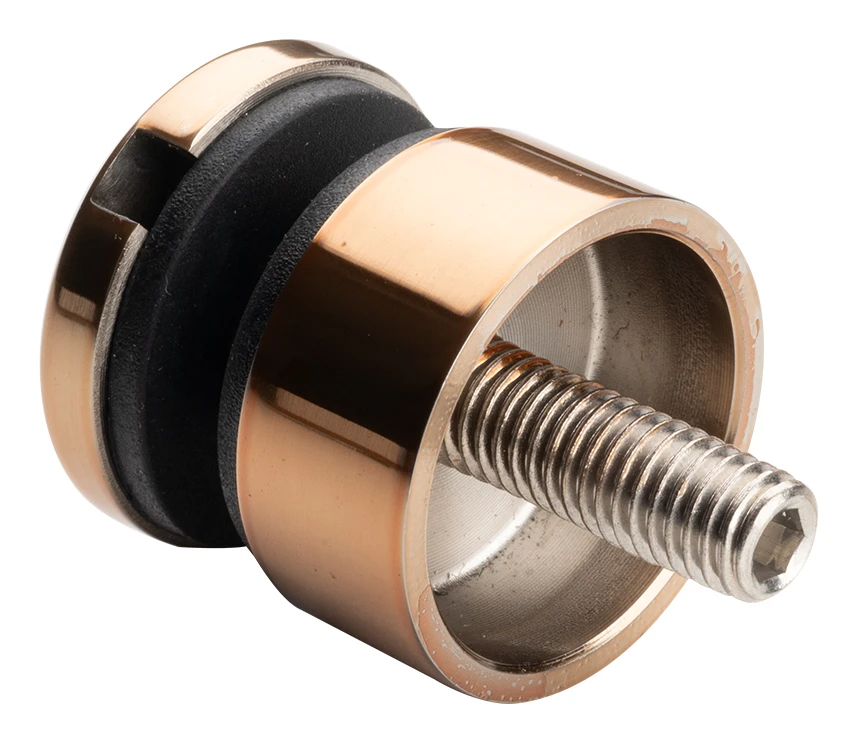

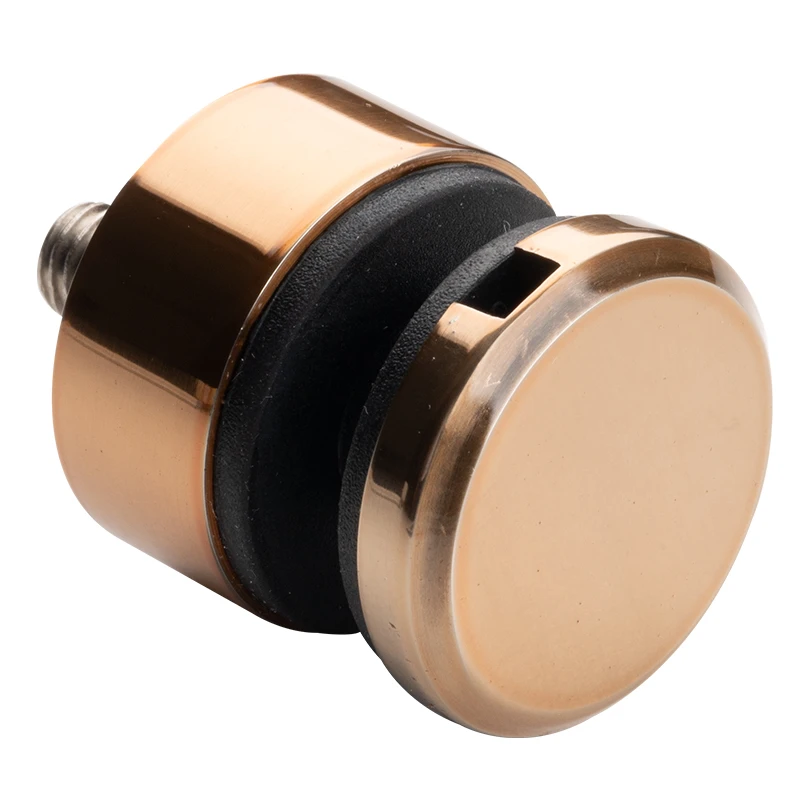

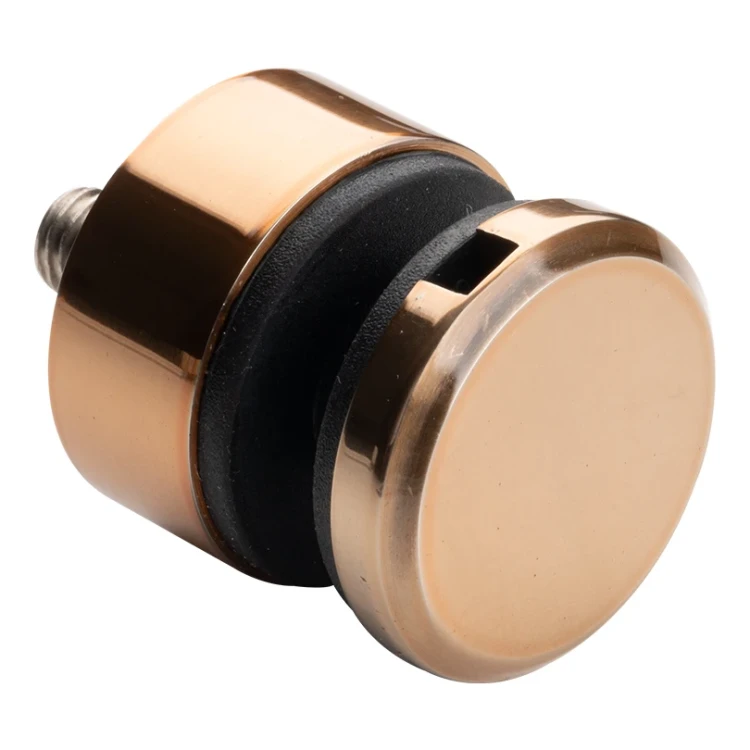

Point Fix Glass Fitting fi 30 mm – Copper Gloss, Glass 6–12 mm
Point fix glass fitting with a 30 mm diameter in an elegant copper gloss finish — an ideal mounting component for glass balustrades, enclosures and glass panel structures. Thanks to the PVD (Physical Vapour Deposition) coating, the fitting offers exceptional resistance to scratching, discolouration and corrosion, making it suitable for both interior and exterior applications.
The product is manufactured from AISI 304 stainless steel, guaranteeing durability and resistance to weathering. The fitting is designed for mounting on flat surfaces and accommodates glass thicknesses from 6 to 12 mm. The set includes rubber pressure pads with a full adjustment range, eliminating the need to source gaskets separately and speeding up on-site installation.

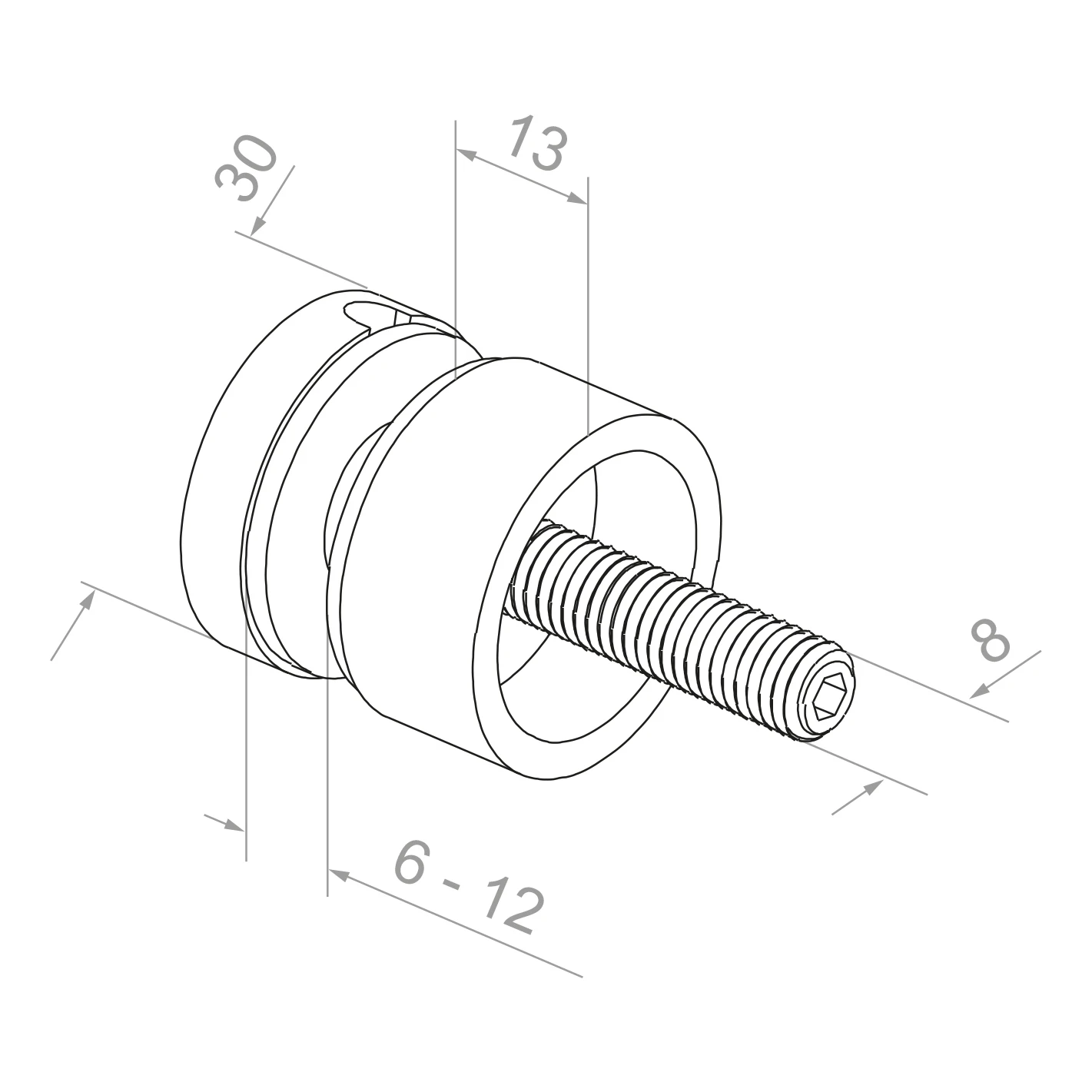

Dimensions and Technical Specifications
- Body diameter: 30 mm
- Standoff length: 13 mm
- Mounting bolt: M8 × 40 mm
- Glass thickness: 6–12 mm
- Mounting type: flat surface
- Material: AISI 304 stainless steel
- Finish: copper gloss (PVD coating)
- Weight: 0.08 kg
- EAN: 5903313204385
The PVD coating, applied using a vacuum deposition process, delivers significantly greater surface hardness compared to conventional painting. The layer is resistant to abrasion, UV radiation and contact with detergents, making this fitting an excellent choice for exposed installations — in both commercial and residential settings. The polished copper finish lends the structure a modern, premium character that pairs beautifully with contemporary interior design trends.
The complete set with rubber pressure pads enables quick installation without the need to order additional accessories — one order, one fixing point ready to install.
Technical data
| Material | AISI 304 |
| Finish | Copper PVD |
| Mounting System | Flat |
| Glass Thickness [mm] | 6-12 |
