Point fixing for glass 6-12 mm fi 30/13/M8x40 AISI 304 flat system black
Description

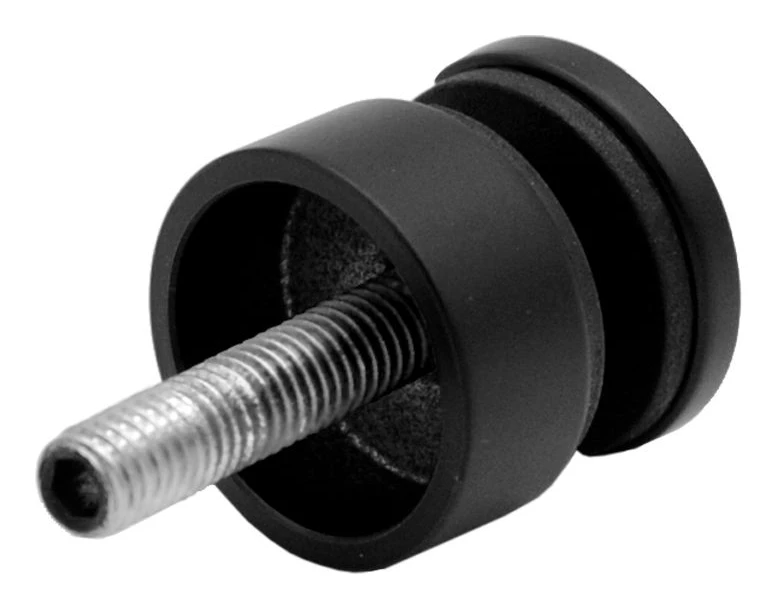

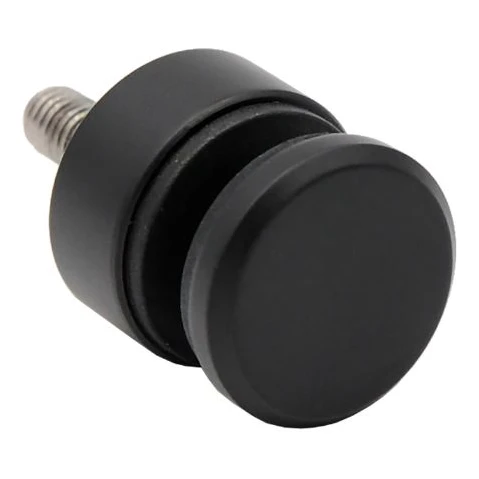

Point fixing for glass fi 30 mm matt black – M8 thread, glass 6–12 mm
Point fixing for glass of the rotula type, designed for mounting glass panels on flat surfaces. The compact, cylindrical body with a diameter of 30 mm combines the aesthetics of a matt black finish with the durability of stainless steel. Thanks to powder coating, the fixing gains enhanced corrosion resistance, making it suitable for both interior and exterior use — in balustrades, canopies, wind screens and façades.
The fixing accommodates glass panels with a thickness of 6 to 12 mm. The set includes pressure rubbers with an adjustable range to suit different glass thicknesses, eliminating the need to source gaskets separately and reducing installation time.

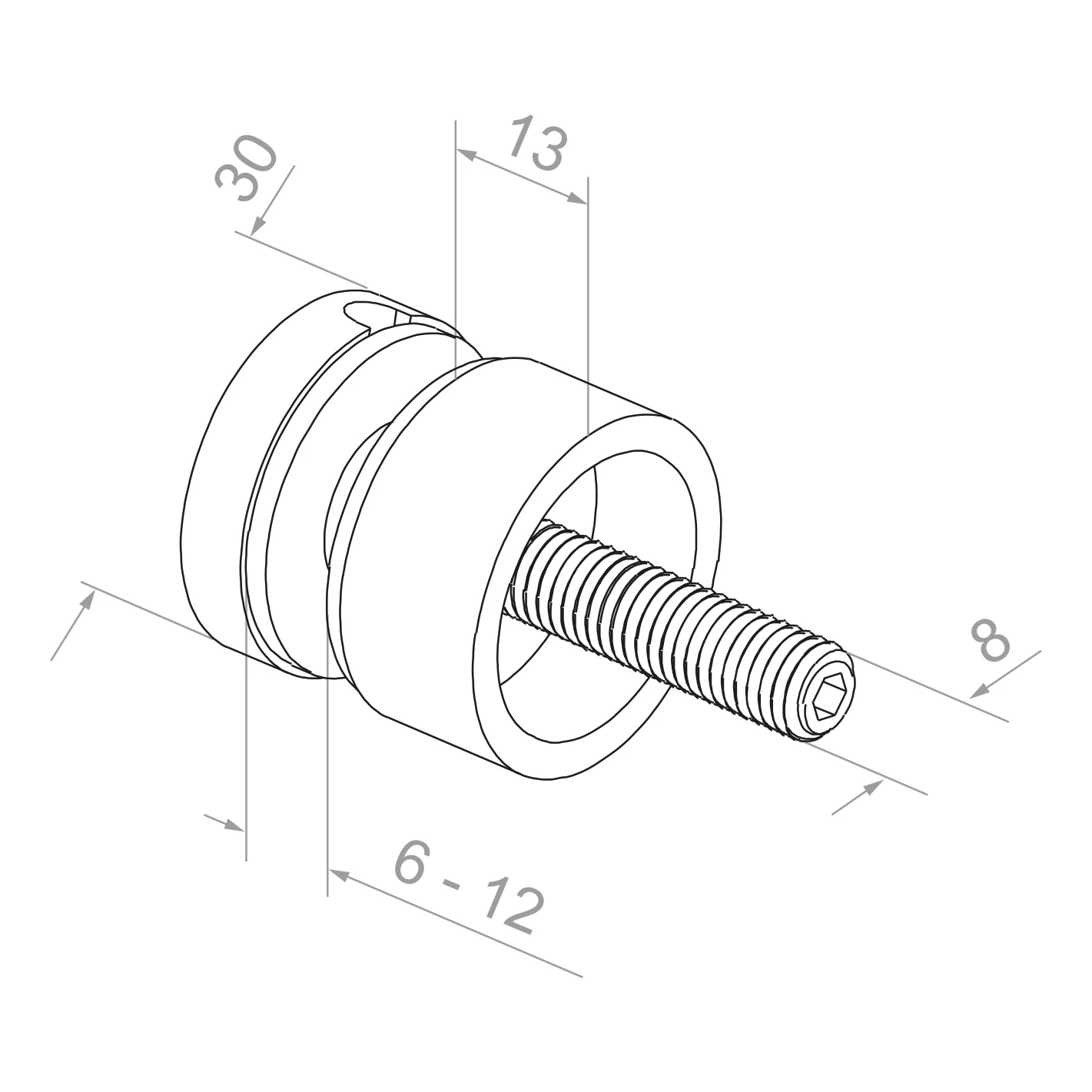

Dimensions and technical data
- Body diameter: 30 mm
- Standoff length (distance from surface to glass): 13 mm
- Glass thickness: 6–12 mm
- Fixing hole: fi 13 mm
- Stem thread: M8
- Bolt: M8×40
- Material: stainless steel AISI 304
- Finish: powder coating – matt black
- Mounting type: flat surface
- Weight: 0.08 kg
- EAN: 5903313204255
Material and weather resistance
The body is made from AISI 304 stainless steel, providing high resistance to corrosion and chemical agents. The additional layer of powder coat paint in matt black not only gives the fixing an elegant appearance but significantly enhances its anti-corrosion protection — making it well suited to exposure to weather conditions, UV radiation and moisture.
Contents of the set
- Point fixing with threaded stem M8×40
- Pressure rubbers with adjustable range 6–12 mm
Technical data
| Material | AISI 304 |
| Finish | Painted black |
| Mounting System | Flat |
| Glass Thickness [mm] | 6-12 |
