Pass-through holder for rod/tube fi 12 mm. system for tube 42.4 mm, AISI 304 satin

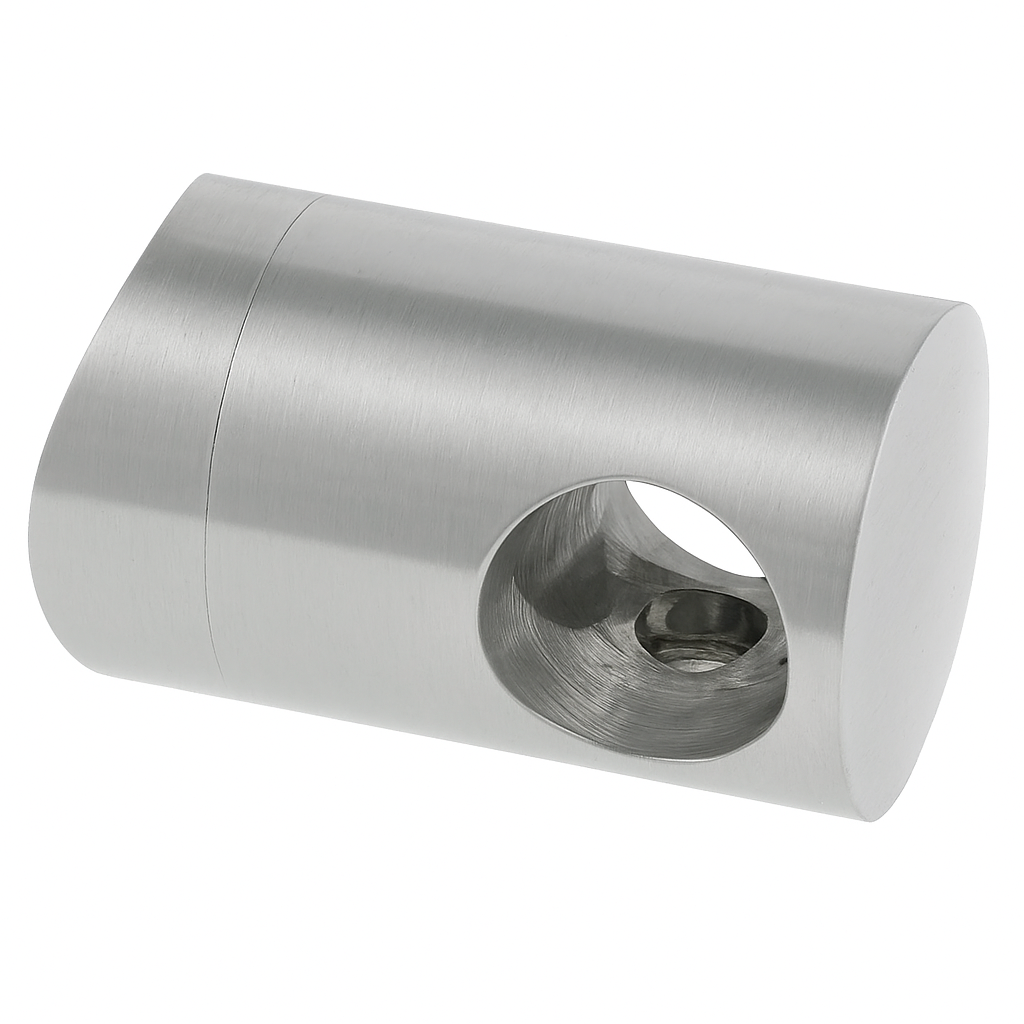

Through-fix holder designed for mounting rods with a diameter of 12 mm onto a ø 42.4 mm support tube. The component connects the balustrade infill to the post, giving the structure rigidity and a cohesive, aesthetic appearance. Manufactured from AISI 304 stainless steel with a satin finish, providing excellent corrosion resistance and an elegant, matt surface character.

Thanks to the through-fix design, the rod passes completely through the holder, which greatly simplifies the installation of continuous horizontal infills in balustrades. An ideal solution for installation teams fitting stainless steel balustrade systems in residential, commercial and public buildings.

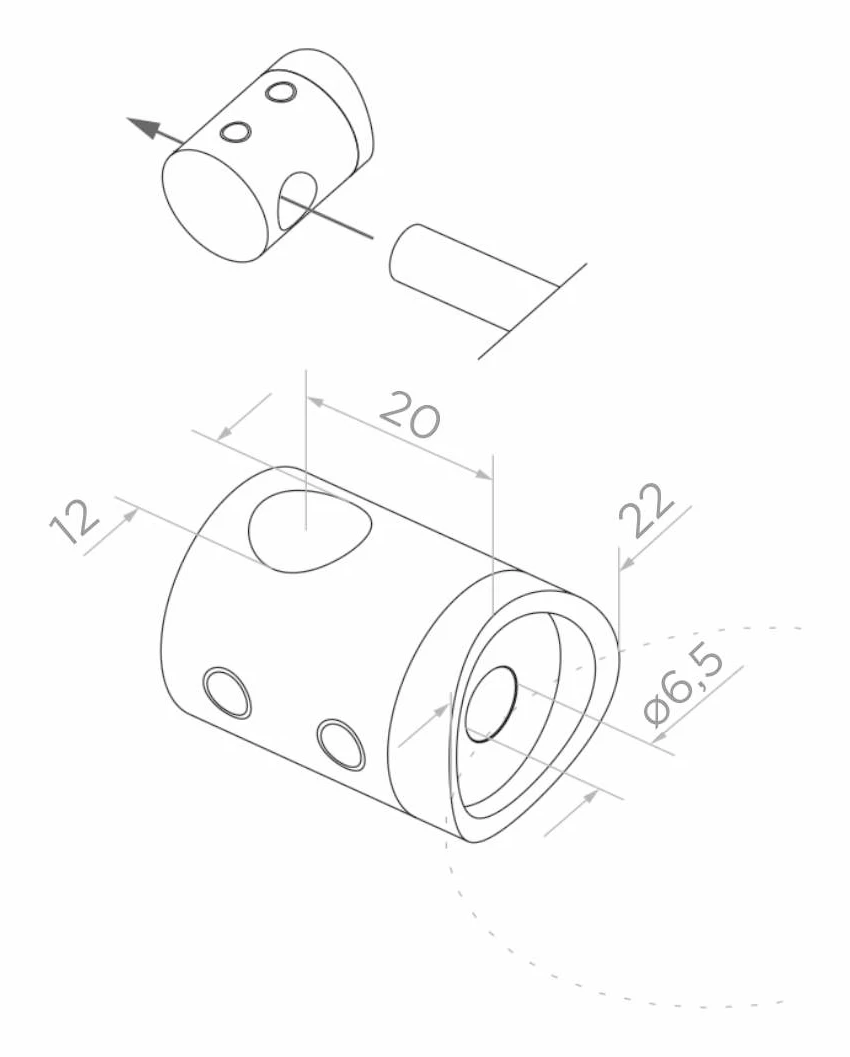

Dimensions and Technical Specification

• Through-bore diameter for rod: ø 12 mm
• Compatible support tube: ø 42.4 mm
• Holder width: 20 mm
• Holder height: 22 mm
• Fixing hole diameter: ø 6.5 mm
• Material: AISI 304 stainless steel
• Surface finish: satin
• System: 42.4 mm
• Weight: 0.055 kg
• Volume: 38.52 cm³
• EAN: 5901289671217

Application and Installation

The holder is mounted directly onto the stainless steel balustrade post. The two-part construction (body + cap) enables quick installation — the infill rod is inserted through the through-bore, and the holder is then secured to the support tube. The component connects the individual infill rods to the posts, ensuring structural integrity and a neat, finished appearance.

AISI 304 grade stainless steel guarantees durability in both indoor and outdoor conditions, while the satin finish harmonises seamlessly with other components of stainless steel balustrade systems.
