PSG welding gate hinge 24 × 140 mm – steel, turned
Leave feedback on the product

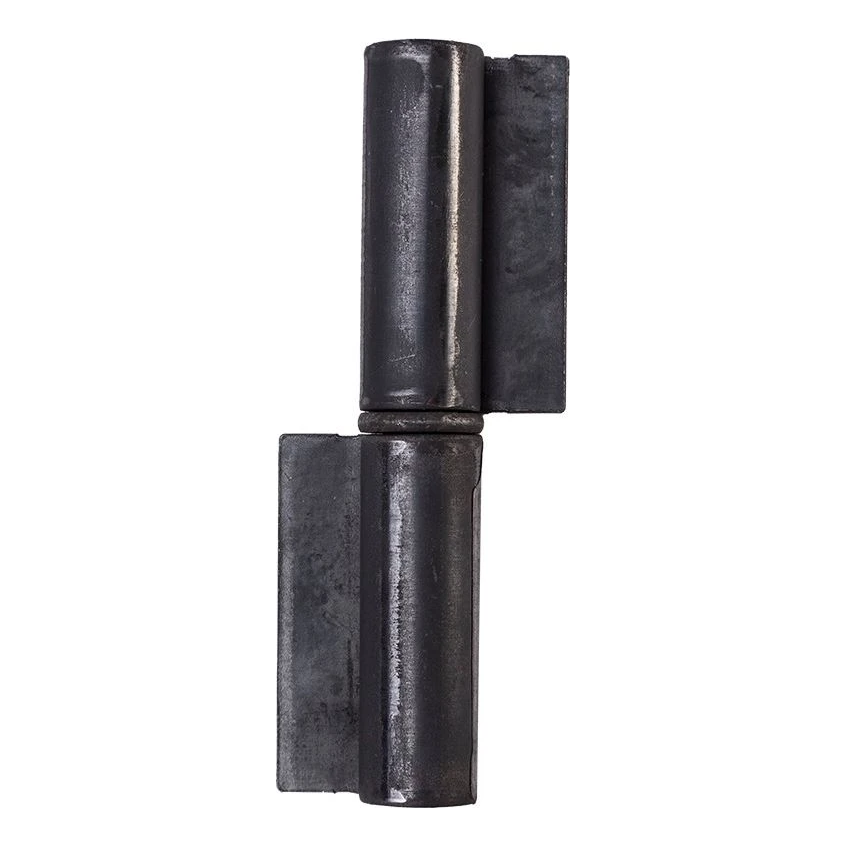

PSG welding gate hinge made of steel, turned. Dimensions 24 × 140 mm, height 150 mm, sleeve diameter Ø14 mm. Wing plate thickness 5 mm, weight 0.685 kg. For gates, wicket gates and fencing elements.
Product code: 001-476
Product features
[PIM] zawiasy #113
- Mounting Method Weld-On
- Material Steel
Description
PSG welding gate hinge 24 × 140 mm – steel, turned
Steel turned welding hinge designed for mounting gates, wicket gates and other fencing elements. Thanks to its solid steel construction and precisely turned sleeve, it ensures a durable and reliable welded connection that withstands intensive use in outdoor conditions.
The hinge is mounted by welding from both sides — one wing is welded to the post, the other to the gate or wicket gate wing, creating an integral whole. The turned construction guarantees smooth operation of the rotation axis and even distribution of loads. The PSG brand product will work well wherever durable, permanent hinge mounting is required.
Before installation, ensure precise levelling of elements — this type of hinge does not allow subsequent adjustment after welding.

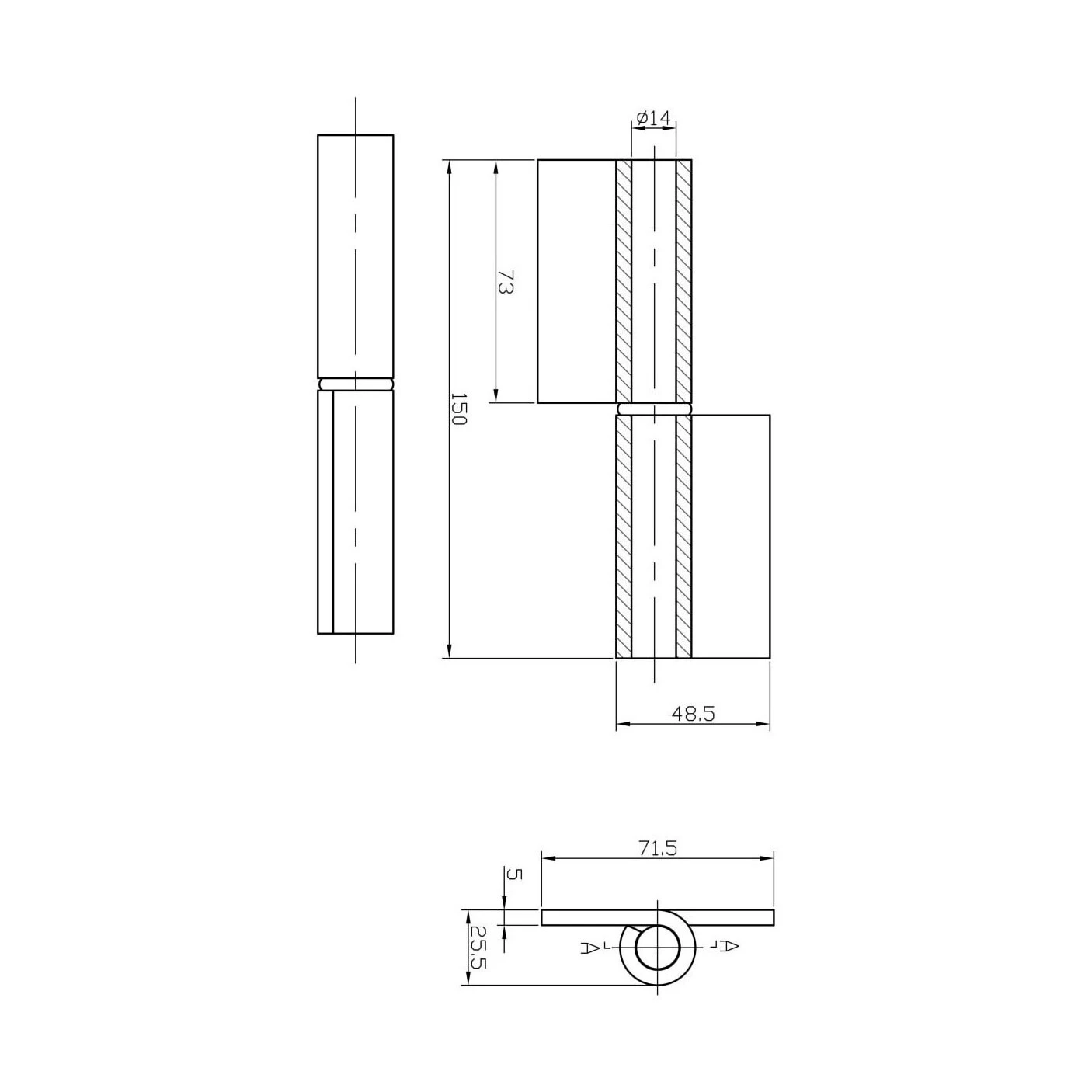

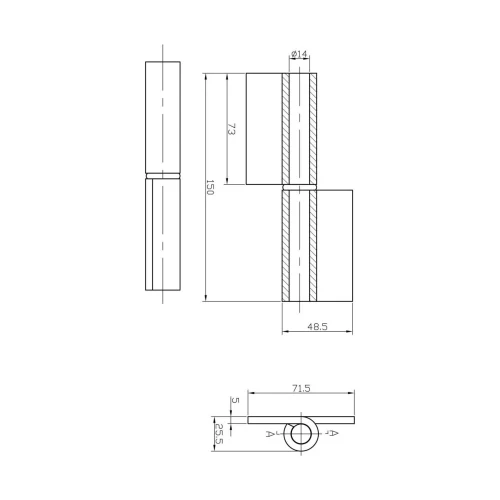

Dimensions and technical parameters
- Total height: 150 mm
- Height of one element (sleeve with wing): 73 mm
- Sleeve diameter (pin hole): Ø14 mm
- Wing width (total): 71.5 mm
- Distance from rotation axis to wing edge: 48.5 mm
- Wing plate thickness: 5 mm
- Depth (from rear surface to sleeve front): 25.5 mm
- Dimensional designation: 24 × 140 mm
- Material: steel
- Type: turned, for welding
- Weight: 0.685 kg
- Manufacturer: PSG
- EAN: 5901289676717
Applications
- Entrance and sliding gates
- Fencing wicket gates
- Welded fencing elements
- Steel constructions requiring permanent rotary suspension
