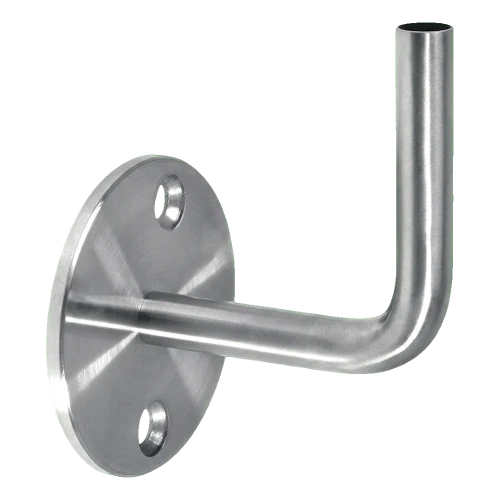

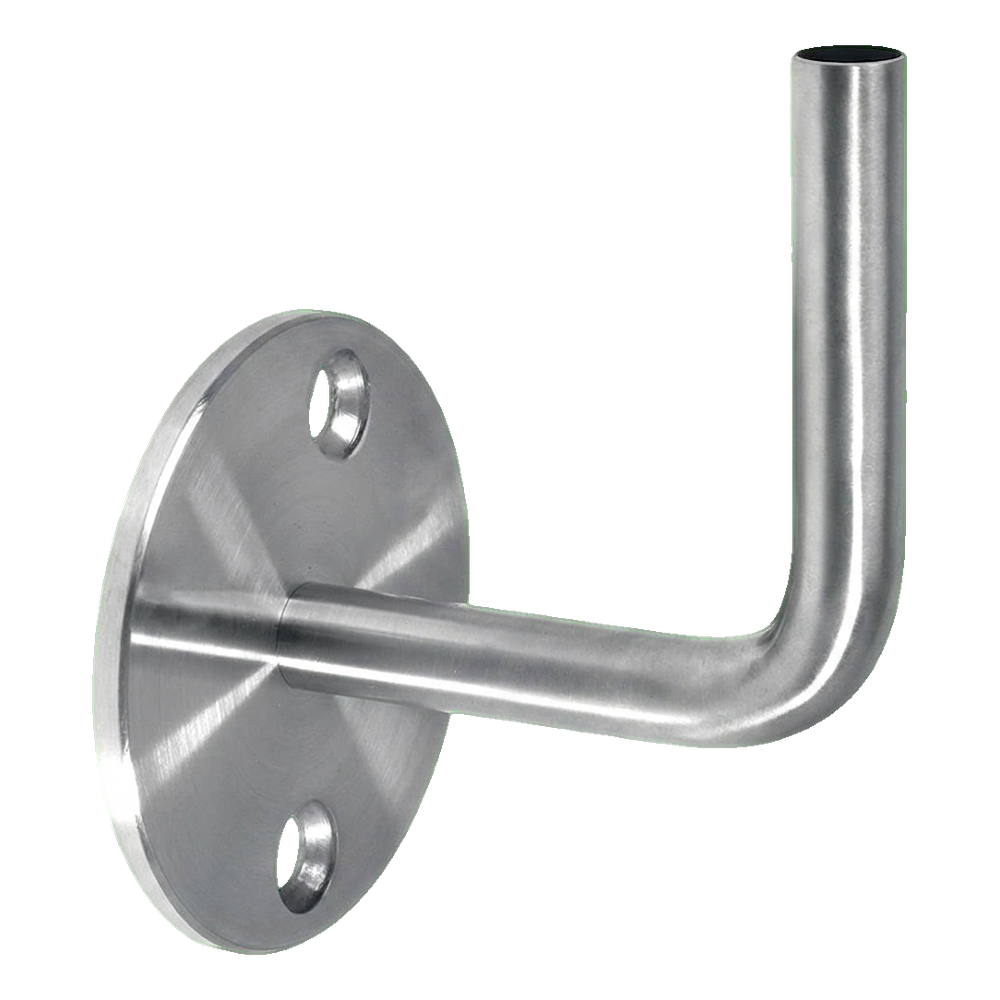

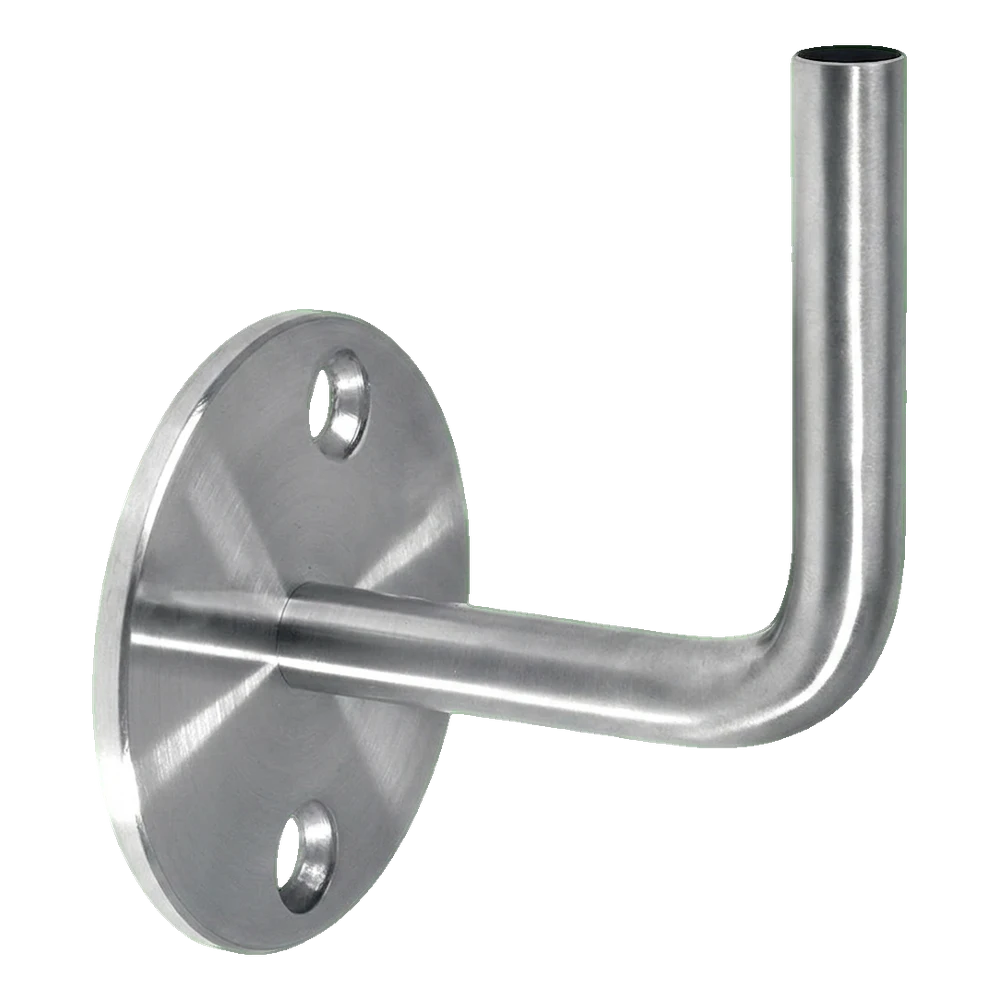

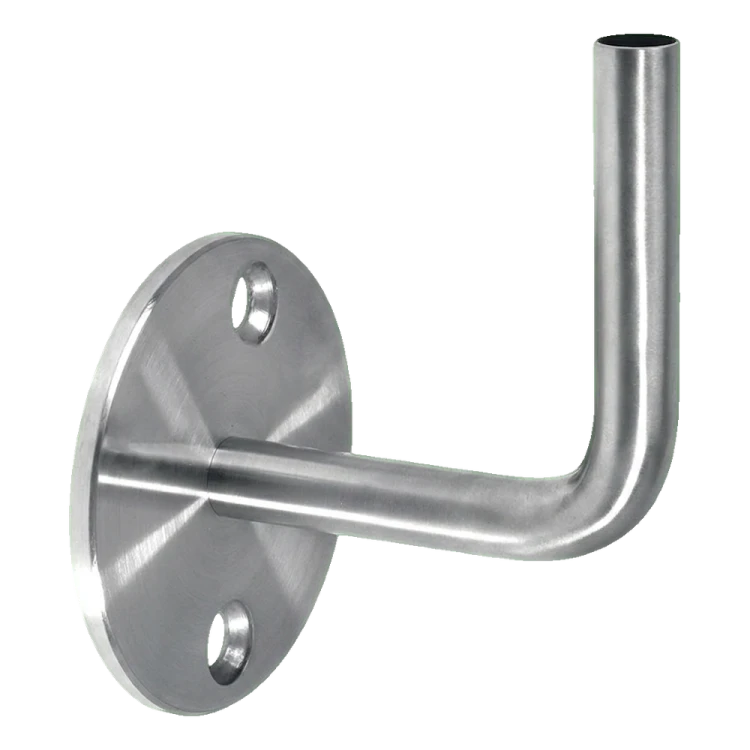

PSG wall bracket for balustrade handrail Ø42.4 mm – AISI 304 stainless steel satin
Description
PSG wall bracket for balustrade handrail Ø42.4 mm – AISI 304 stainless steel satin
Simple, robust wall bracket for handrail designed for mounting balustrade handrail with diameter Ø42.4 mm directly to the wall. Thanks to construction from AISI 304 stainless steel in satin finish, the product ensures years of durability and aesthetic appearance without the need for additional maintenance. The L-shaped construction with round mounting rosette enables quick and secure mounting at two fixing points — an ideal solution for installation teams working on internal and external balustrades.
The bracket does not have a mounting plate — the handrail connects to the arm via M6 thread. This is a universal construction that works well in both residential construction and public utility buildings.

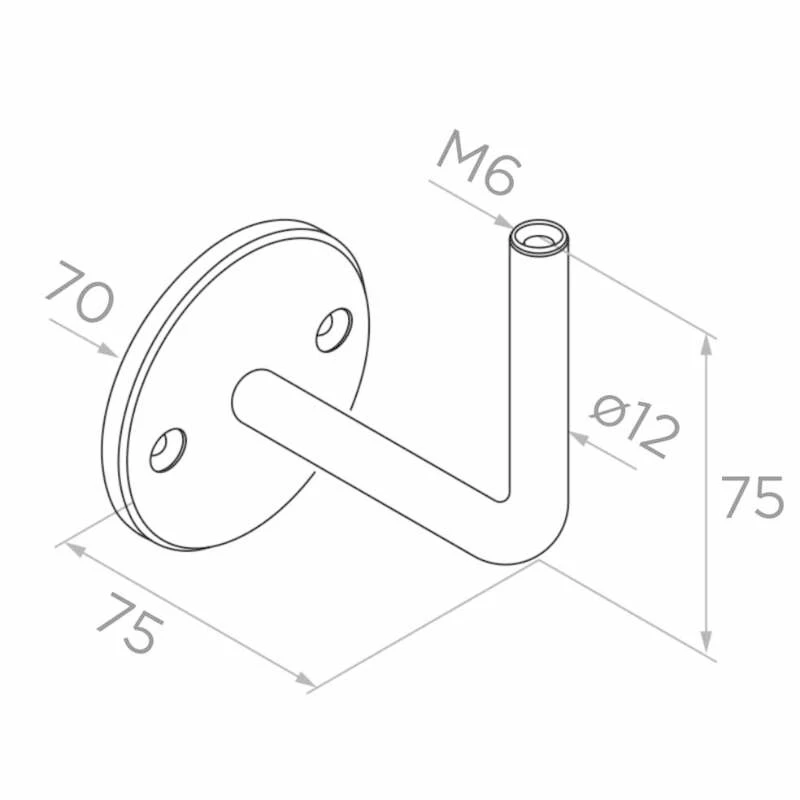

Dimensions and technical parameters
- Mounting rosette diameter: 70 mm
- Wall projection: 75 mm
- Height: 75 mm
- Arm diameter: Ø12 mm
- Internal thread: M6
- Number of mounting holes: 2
- Handrail compatibility: Ø42.4 mm
Material and finish
- Material: AISI 304 stainless steel
- Finish: satin (brushed)
- Weight: 0.23 kg
- EAN: 5901289671620
The satin surface is easy to keep clean — most dirt can be removed with a dry, soft microfibre cloth, and greasy stains with special stainless steel cleaner. The bracket is suitable for both internal applications and external building use — AISI 304 steel guarantees corrosion resistance in typical atmospheric conditions.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
