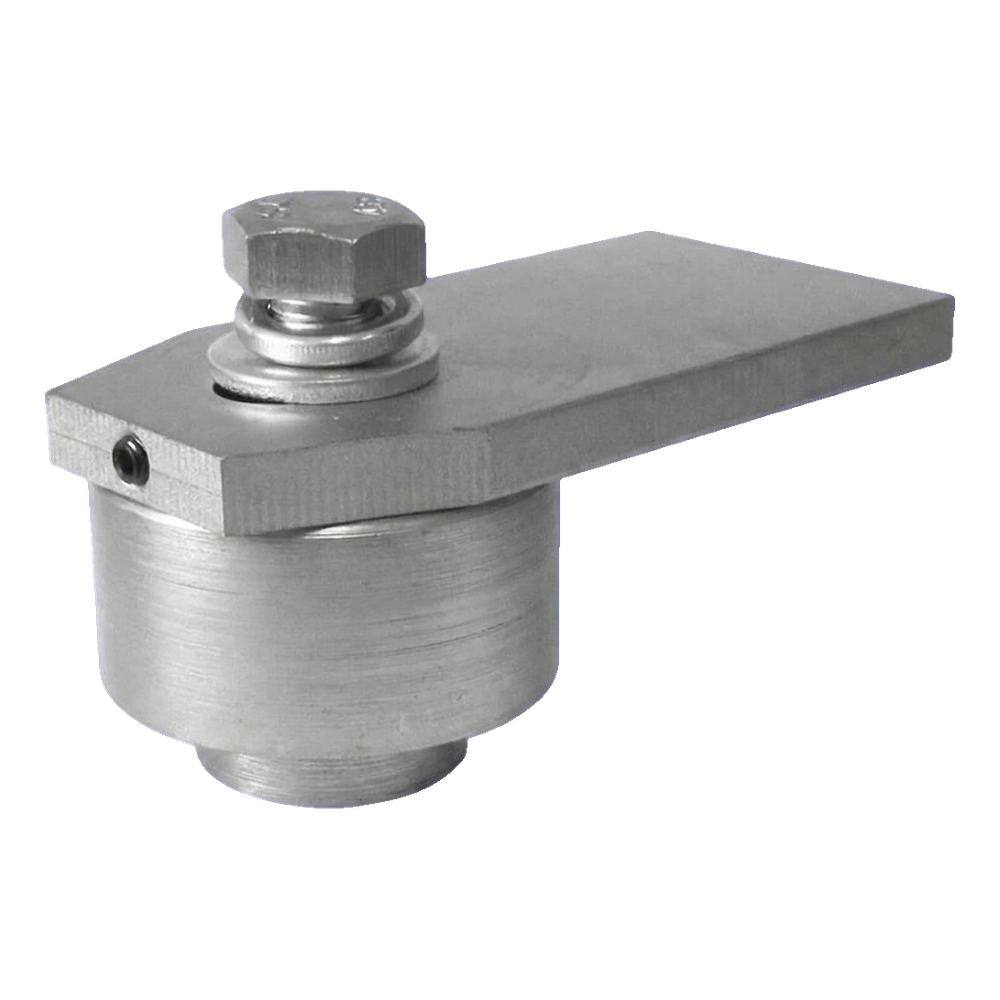

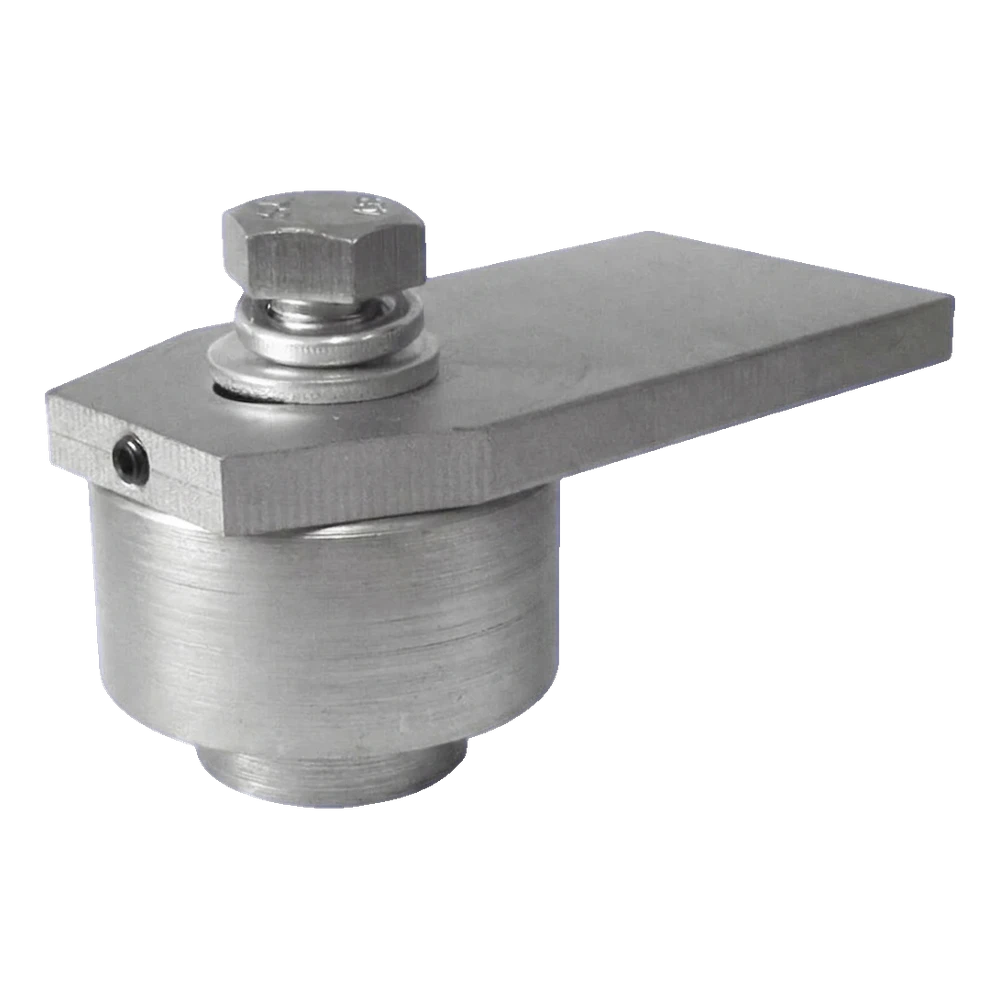

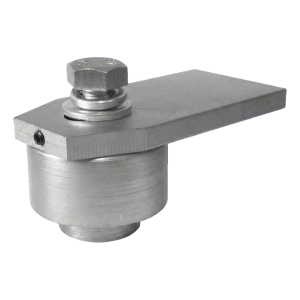

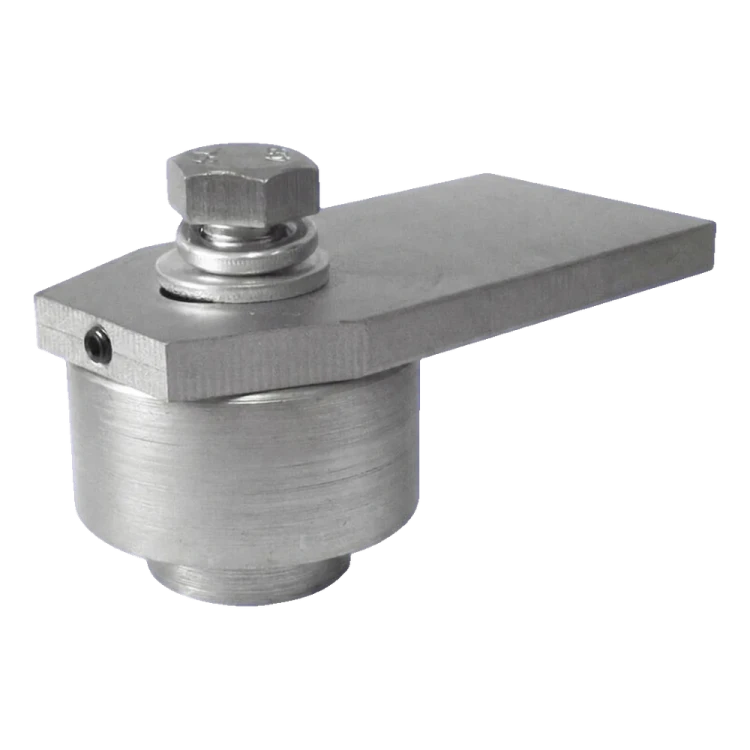

PSG upper gate hinge with bearing fi 50 mm steel
Leave feedback on the product
PSG upper gate hinge with bearing fi 50 mm steel. Pin diameter 50 mm, mounting plate 100x50 mm, thickness 8 mm. Bearing assembly height 36 mm. Weight 0.62 kg. Permissible load for pair 200 kg for 2 m gate leaf.
Product code: 001-414
Product features
[PIM] zawiasy #113
- Diameter 50
- Mounting Method Wall-Embedded
- Material Steel
Description
PSG upper gate hinge with bearing fi 50 mm steel
PSG upper gate hinge fi 50 mm is a durable, bearing-equipped suspension element designed for gate leaves and swing gates. Thanks to its solid steel construction and precision bearings, it ensures smooth gate operation for years of service — even under significant loads.
A pair of hinges (upper + lower) allows for hanging a gate leaf with a length of 2 m and mass up to 200 kg, making this solution suitable for both standard gates and heavy entrance gates on private properties and commercial facilities.

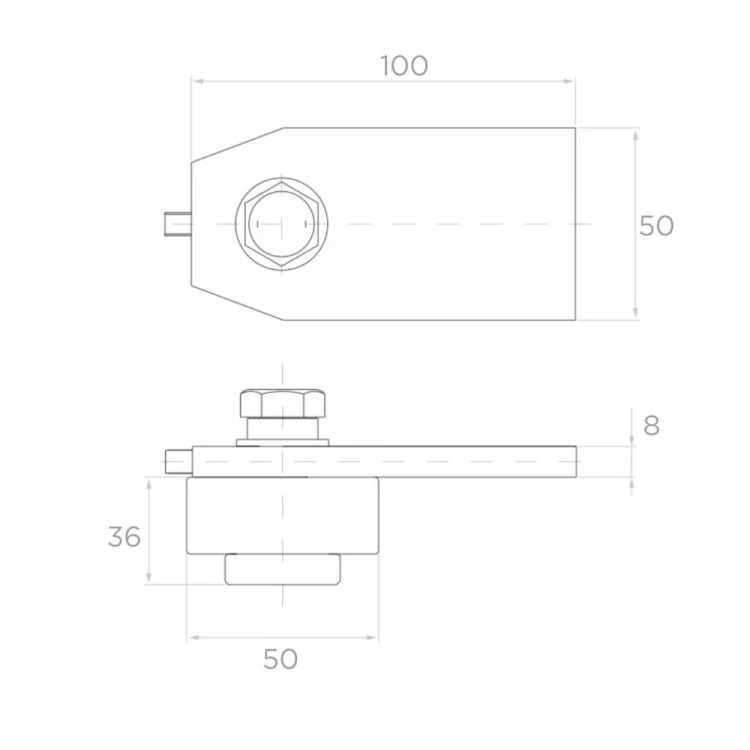

Dimensions and technical data
- Type: upper hinge
- Pin diameter (fi): 50 mm
- Mounting plate length (L): 100 mm
- Mounting plate width: 50 mm
- Mounting plate thickness: 8 mm
- Bearing assembly height (H): 36 mm
- Bearings: yes
- Material: steel
- Weight: 0.62 kg
- Permissible load for pair of hinges (2 m gate leaf): 200 kg
- EAN: 5901289676335
Application and installation
The hinge is mounted as the upper element of a gate or gate leaf. The flat mounting plate with dimensions 100 × 50 mm enables stable bolting to a post or frame. The bearing construction minimises friction and ensures quiet, smooth gate operation — which is particularly important for heavy gates operated multiple times throughout the day.
Product by PSG — a Polish manufacturer of accessories for fencing and gate systems, valued for solid construction and dimensional consistency in series deliveries.
