PSG upper gate hinge steel bearing fi 40 mm
Description
PSG upper gate hinge steel bearing fi 40 mm

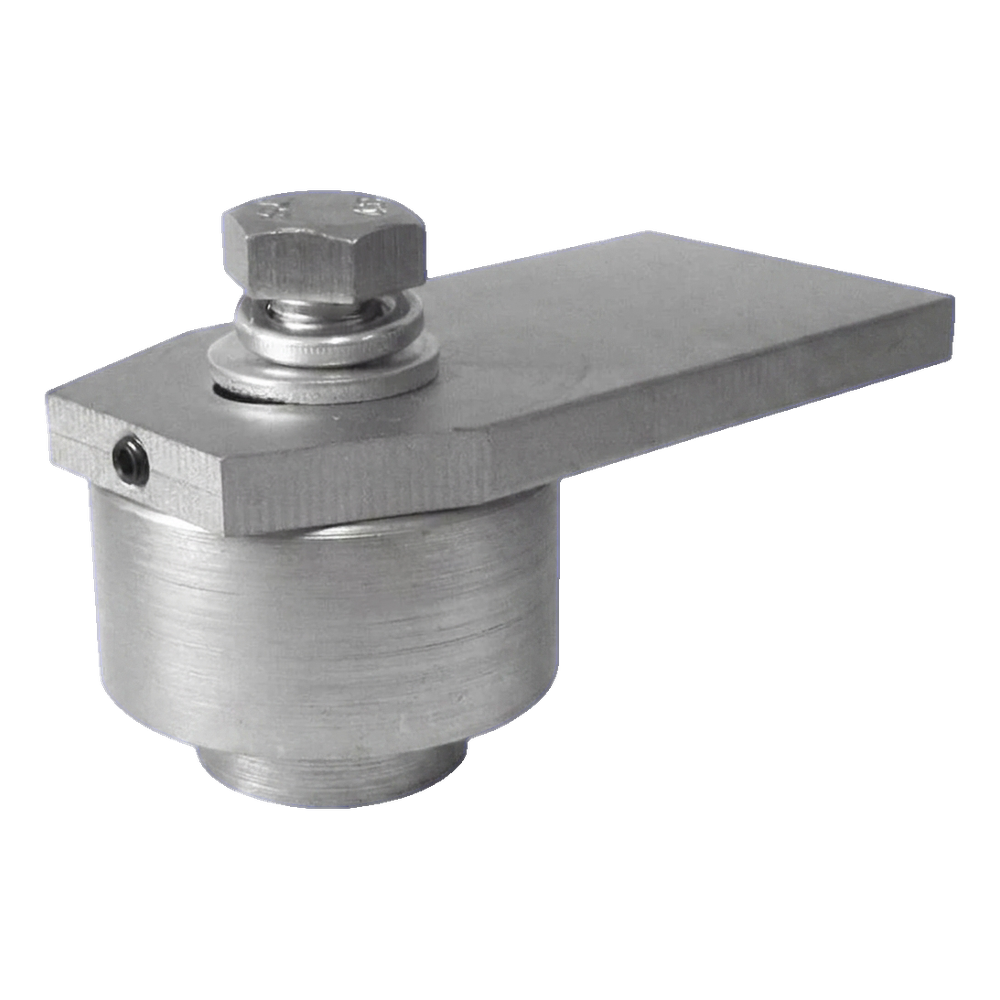

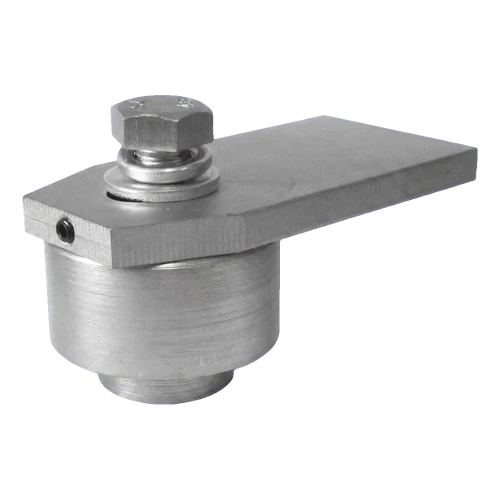

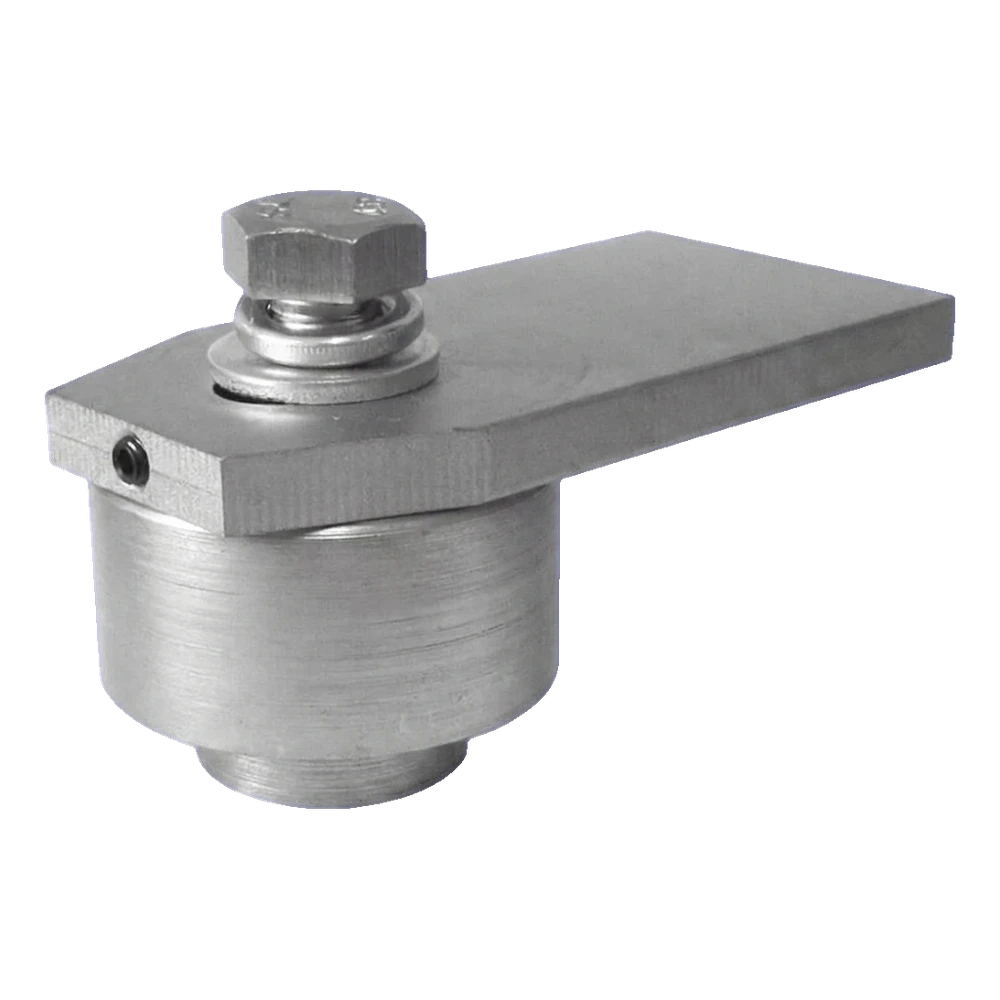

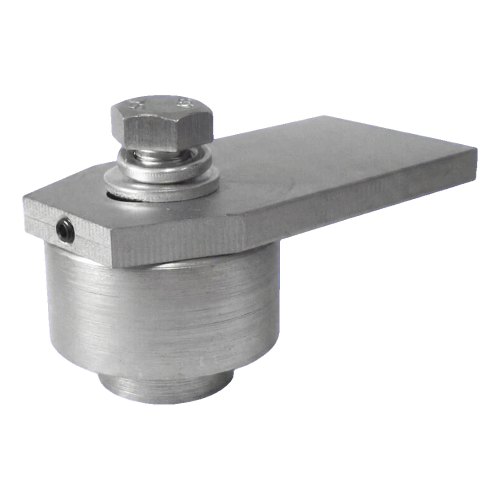

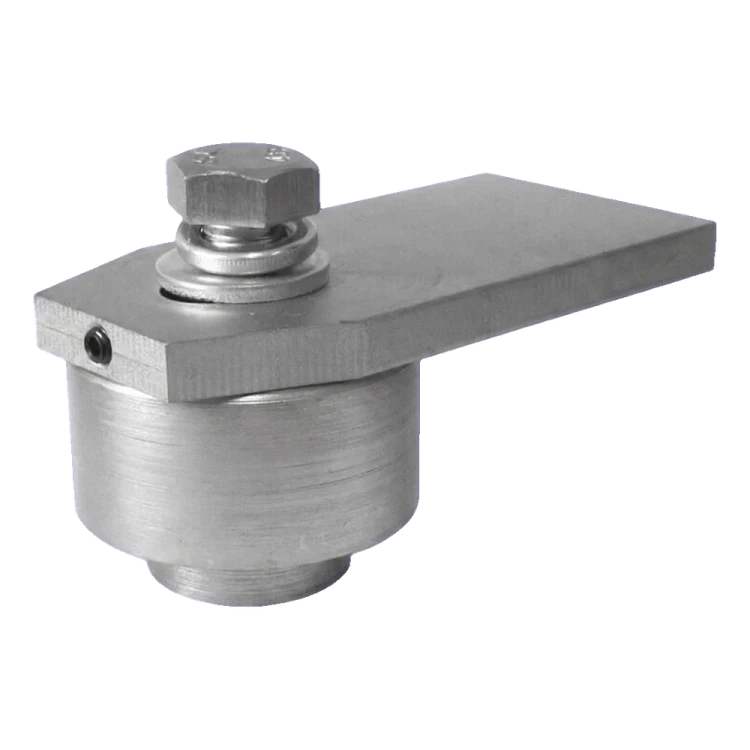

Steel upper hinge fi 40 mm by PSG is a bearing rotating element designed for mounting swing gates and wickets. Thanks to the bearing application, the hinge ensures smooth and quiet operation of the gate leaf, whilst the solid steel construction guarantees long-lasting durability even with intensive use.
The permissible load of a pair of hinges mounted on a leaf of 2 m length is 160 kg, which allows for their use in both wickets and moderately loaded entrance gates. The hinge is mounted as an upper element — combined with an appropriate lower hinge, it forms a complete, reliable rotating node.
Dimensions and technical data
- Type: upper hinge
- Pin diameter: fi 40 mm
- Mounting plate length: 90 mm
- Mounting plate width: 40 mm
- Mounting plate thickness: 7 mm
- Rotating sleeve height: 37 mm
- Material: steel
- Bearing: yes
- Weight: 0.426 kg
- Load capacity of hinge pair (2 m leaf): 160 kg
- Manufacturer: PSG
- EAN: 5901289676328

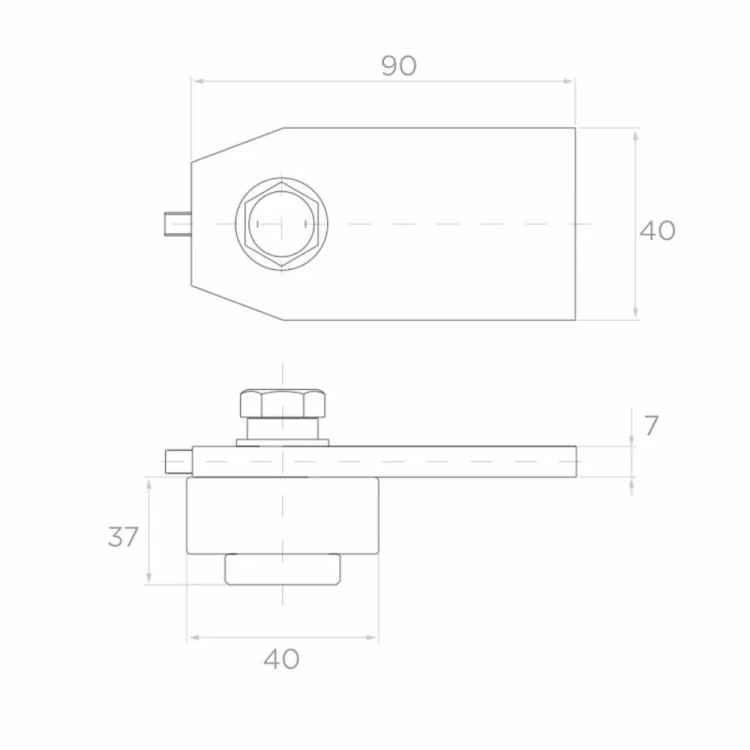

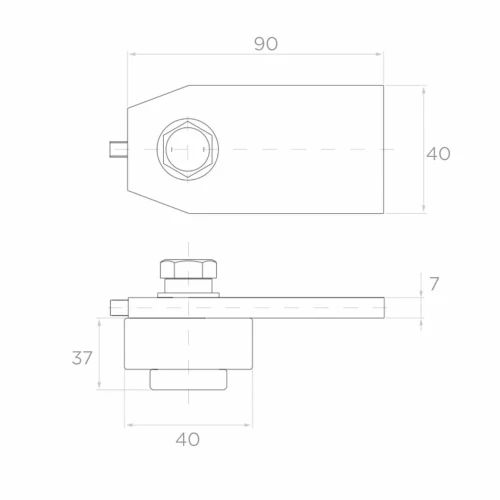

Compact dimensions (90 × 40 × 7 mm plate + sleeve ø40 × 37 mm) facilitate mounting on typical posts and fence frames. The steel construction allows for welding or bolting the element to the load-bearing structure, giving the installer flexibility in choosing the mounting method according to site conditions.
Technical data
| Diameter | 40 |
| Mounting Method | Wall-Embedded |
| Material | Steel |
