PSG upper gate hinge bearing-mounted fi 50 mm steel
Leave feedback on the product
Upper gate hinge PSG fi 50 mm steel bearing-mounted. Load capacity of a pair up to 250 kg for a 2 m wing. Dimensions: length 83 mm, base width 50 mm, arm height 70 mm. Sheet thickness 8 mm. With serrated adjustment and mounting plate.
Product code: 001-420
Product features
[PIM] zawiasy #113
- Diameter 50
- Mounting Method Wall-Embedded
- Material Steel
Description

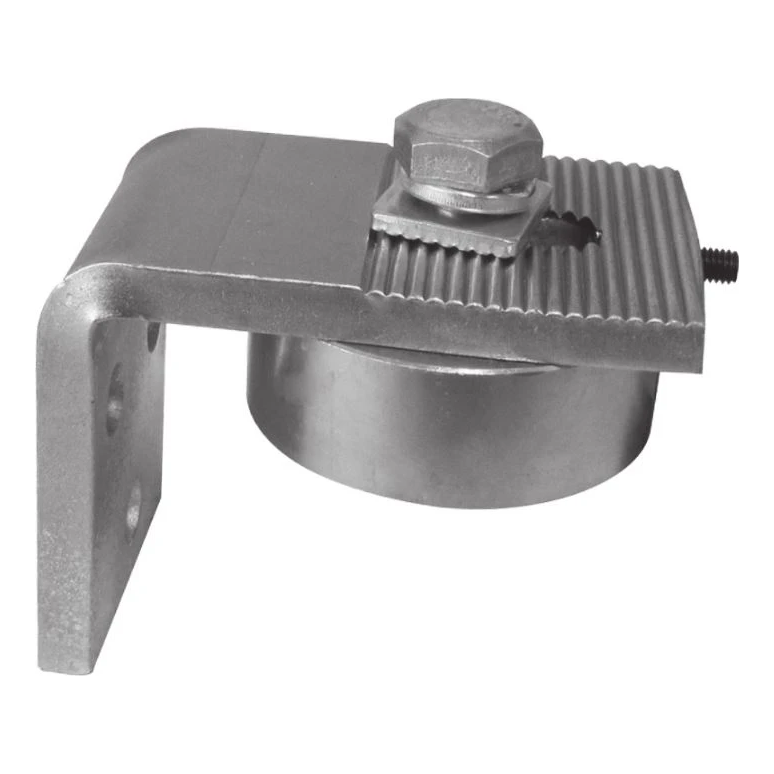

PSG upper gate hinge bearing-mounted fi 50 mm steel
Steel upper hinge fi 50 mm from PSG brand designed for mounting gates and swing gate wings. The bearing construction ensures smooth and quiet operation of the wing, whilst the serrated adjustment surface enables precise position setting after installation. Equipped with mounting bracket with fixing plate — ready for quick installation without additional adapters.
Application and load capacity
The hinge is designed for upper suspension of gate or gate wing. A pair of hinges (upper + lower) provides permissible load up to 250 kg for a wing length of 2 m. The bearing eliminates metal-to-metal friction, which translates to long service life and maintenance-free operation even with intensive use.
The serrated contact surface between the adjustment plate and the bracket enables precise adjustment of angle and hinge position after mounting — simply loosen the central screw, correct the setting and tighten again.

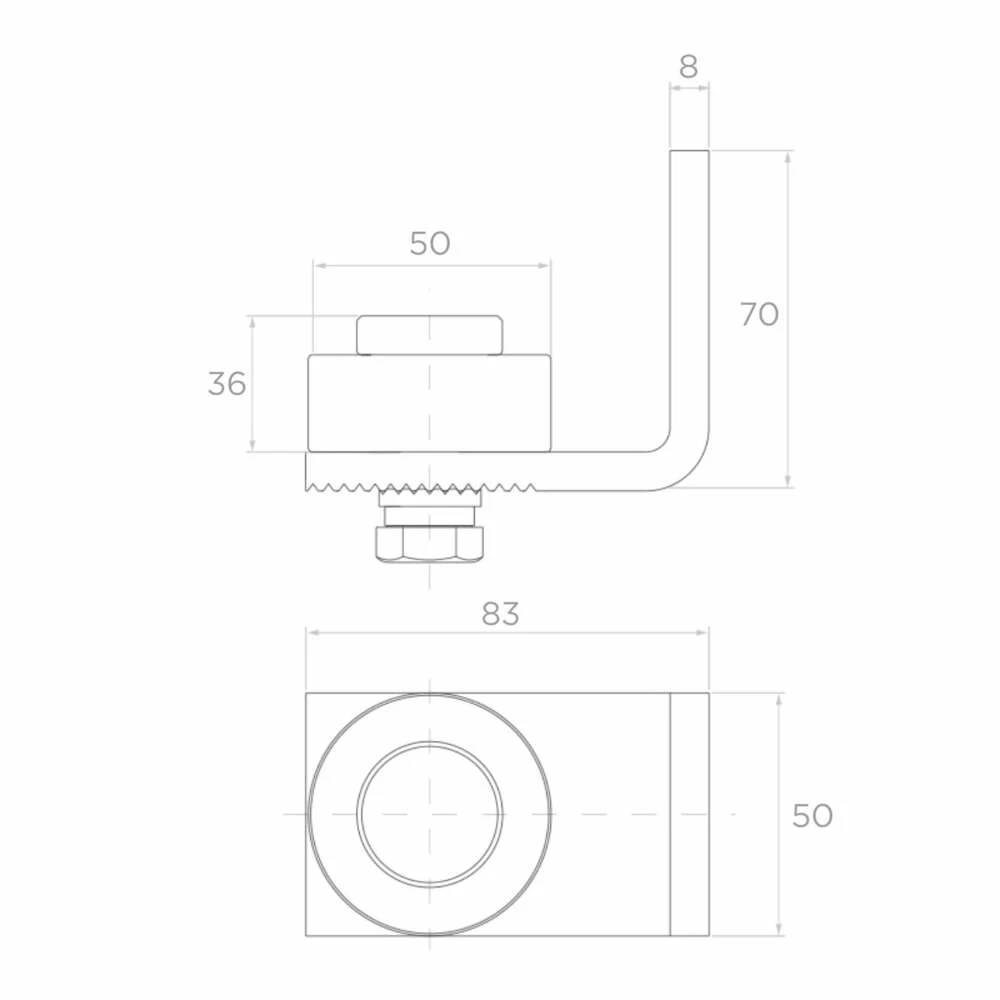

Dimensions and technical data
- Pin diameter: fi 50 mm
- Overall length: 83 mm
- Base width: 50 mm
- Vertical arm height (bracket): 70 mm
- Rotating element height: 36 mm
- Bracket sheet thickness: 8 mm
- Material: steel
- Type: bearing-mounted
- Mounting: upper
- Weight: 0.75 kg
- Permissible load of hinge pair (2 m wing): 250 kg
- EAN: 5901289676366
Benefits for the installer
- Bearing mounting — quiet and smooth operation without need for lubrication
- Serrated adjustment — quick and precise wing setting during installation
- Massive construction — 8 mm sheet thickness and fi 50 mm diameter guarantee high load capacity
- Mounting plate included — no need to purchase additional mounting elements
