PSG turned gate hinge FI 20×70 mm for swing gates
Leave feedback on the product
PSG turned hinge FI 20×70 mm made of steel, two-piece. Diameter 20 mm, height 70 mm, weight 0.18 kg. Sleeve and pin for welding. For swing gates and wicket gates.
Product code: 001-468
Product features
[PIM] zawiasy #113
- Diameter 20
- Mounting Method Wall-Embedded
- Material Steel
Description
PSG turned gate hinge FI 20×70 mm for swing gates
PSG turned hinge FI 20×70 mm is a durable, two-piece hinge designed for mounting swing gates and wicket gates. Thanks to its turned construction, it ensures smooth operation of the gate leaf and high resistance to mechanical loads. Compact dimensions and simple design allow for quick welded assembly, which translates to shorter project completion time.

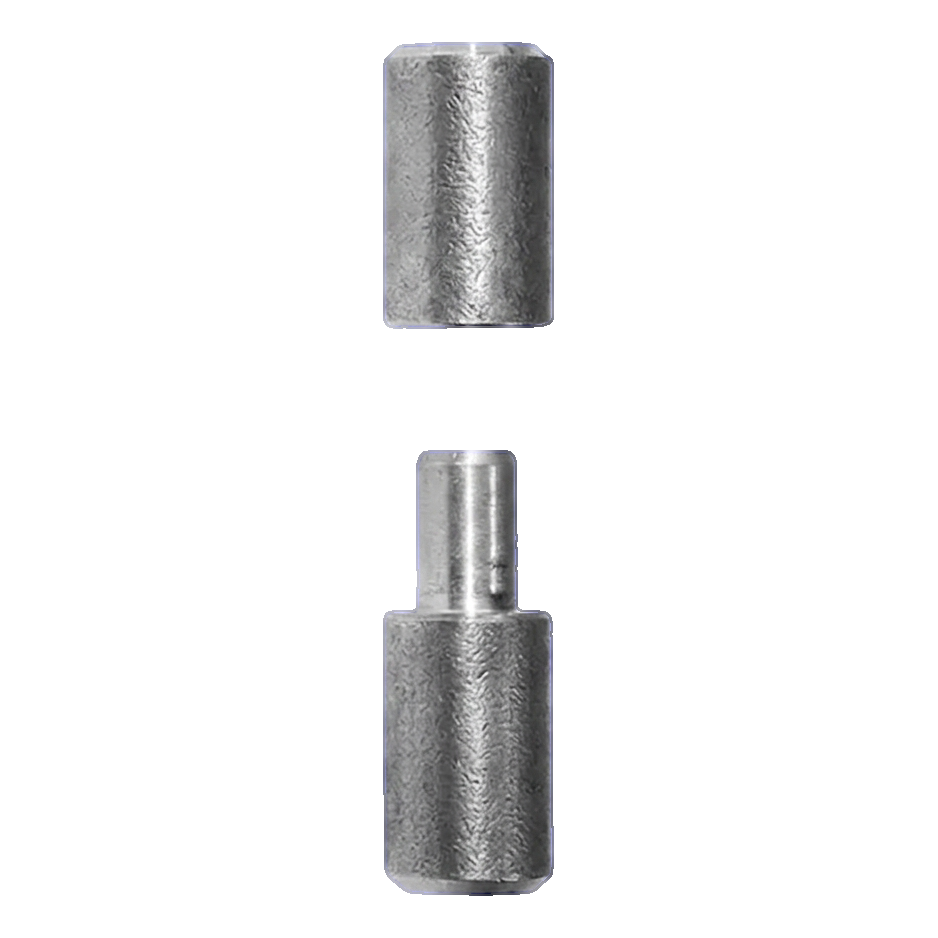

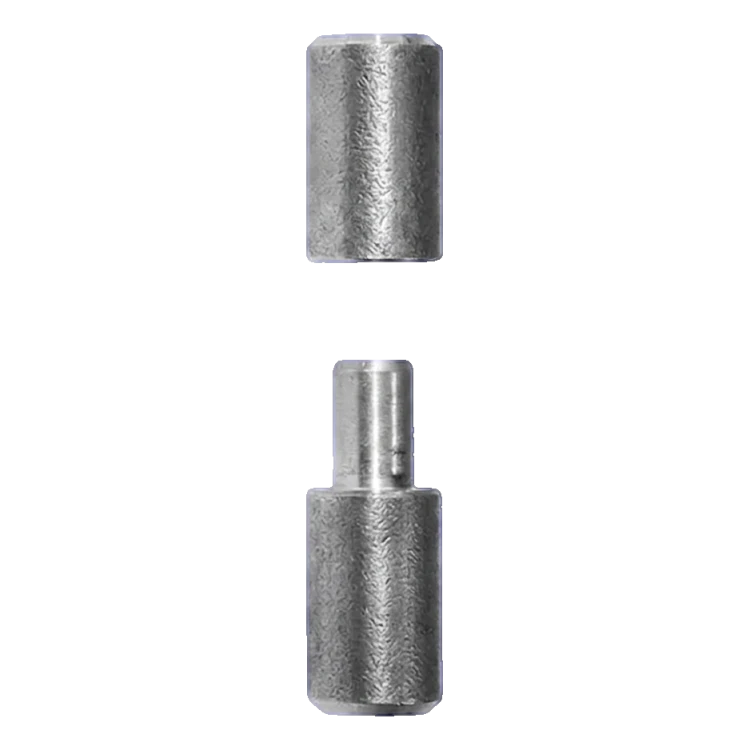

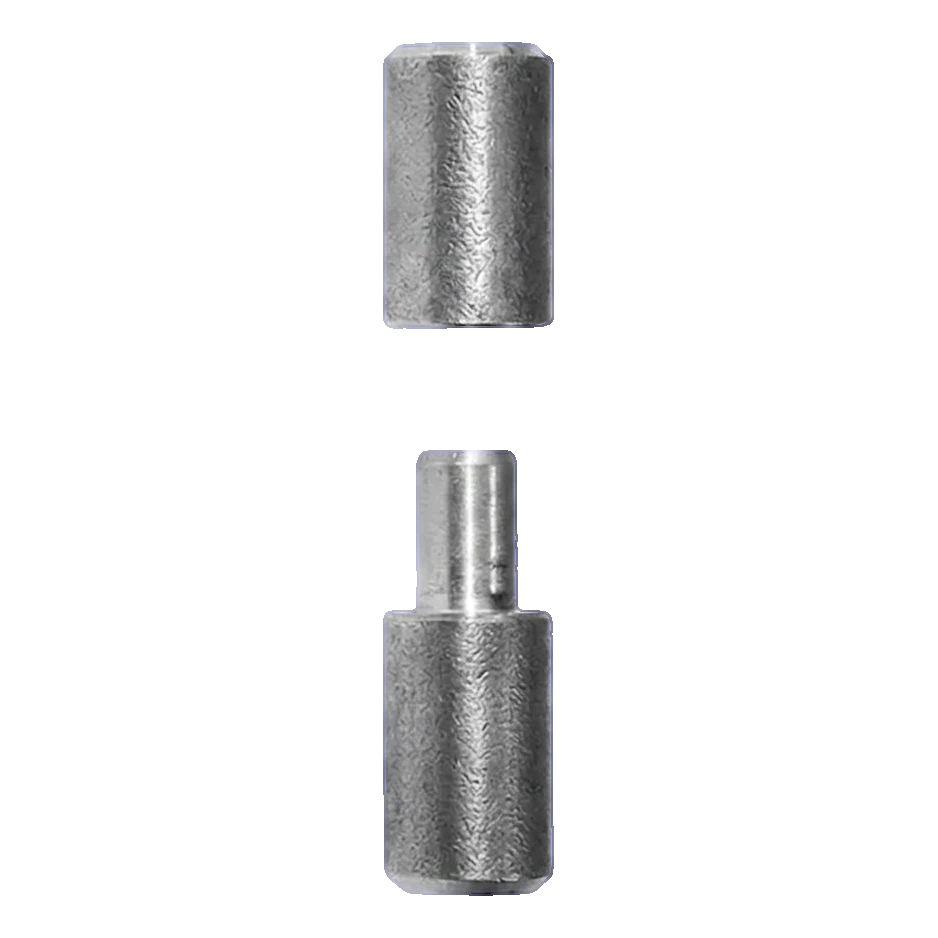

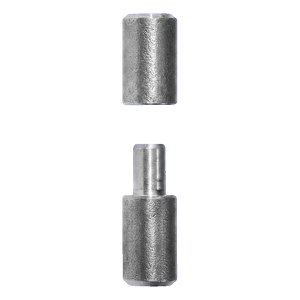

The hinge consists of two elements — a sleeve (socket) and a pin — which when assembled create a reliable rotating connection. The turned surface ensures precise fitting of both parts, minimising clearances and excessive wear during operation.

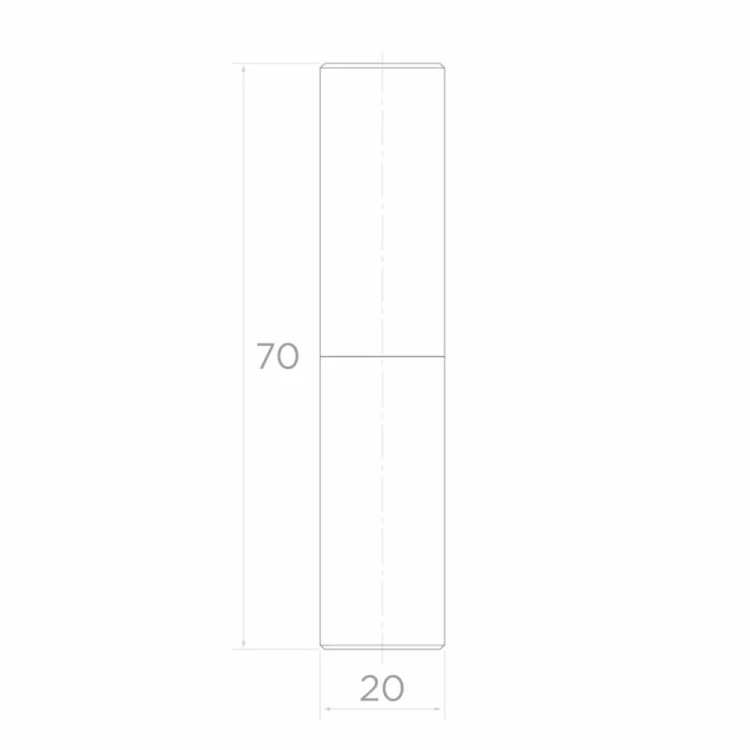

Dimensions and technical parameters
- Diameter (FI): 20 mm
- Total height (H): 70 mm
- Weight: 0.18 kg
- Volume: 28 cm³
- Construction: turned, two-piece (sleeve + pin)
- Material: steel
- Manufacturer: PSG
- EAN: 5901289676618
Application
The turned hinge FI 20×70 is dedicated primarily to swing gates and wicket gates in fencing systems. It works well wherever a solid, welded rotating connection with small dimensions is required. Ideal for daily installation work when mounting entrance gates, property fencing and industrial gates with light and medium-weight leaves.
