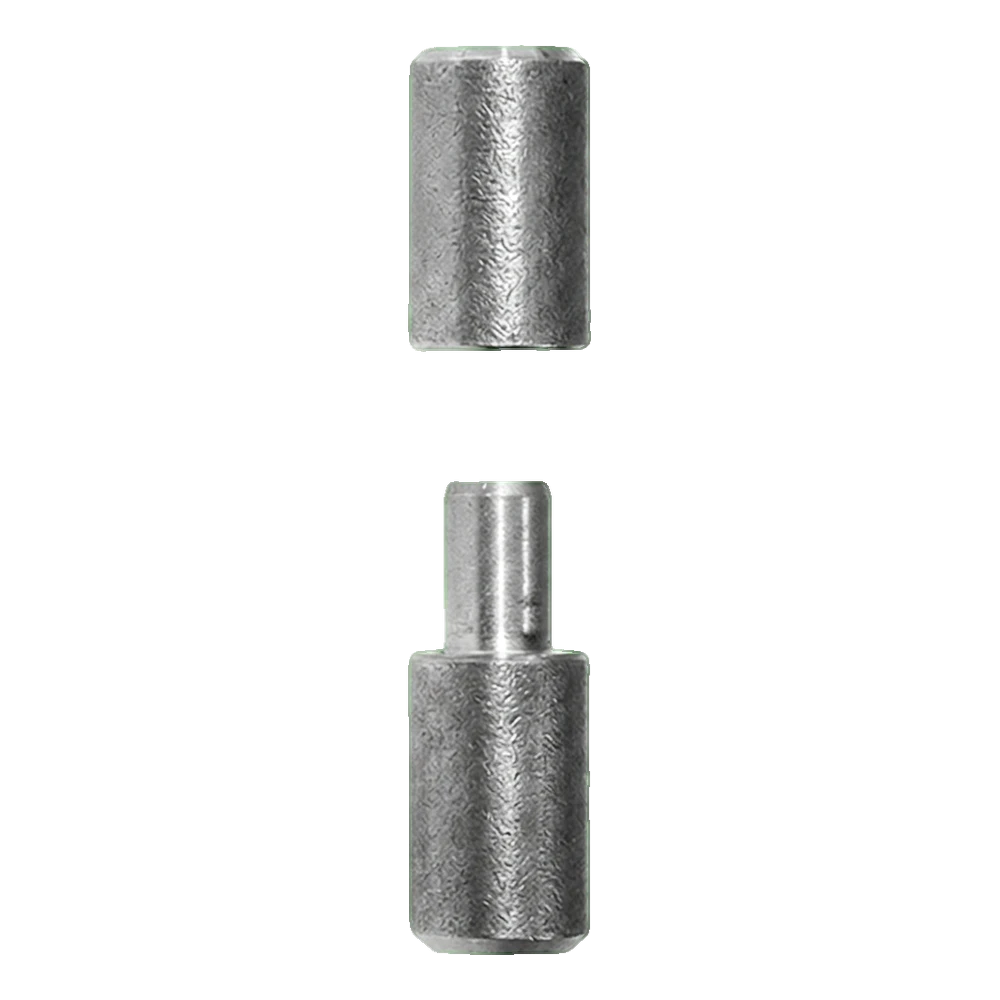

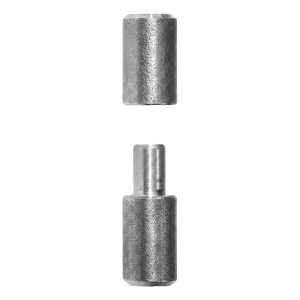

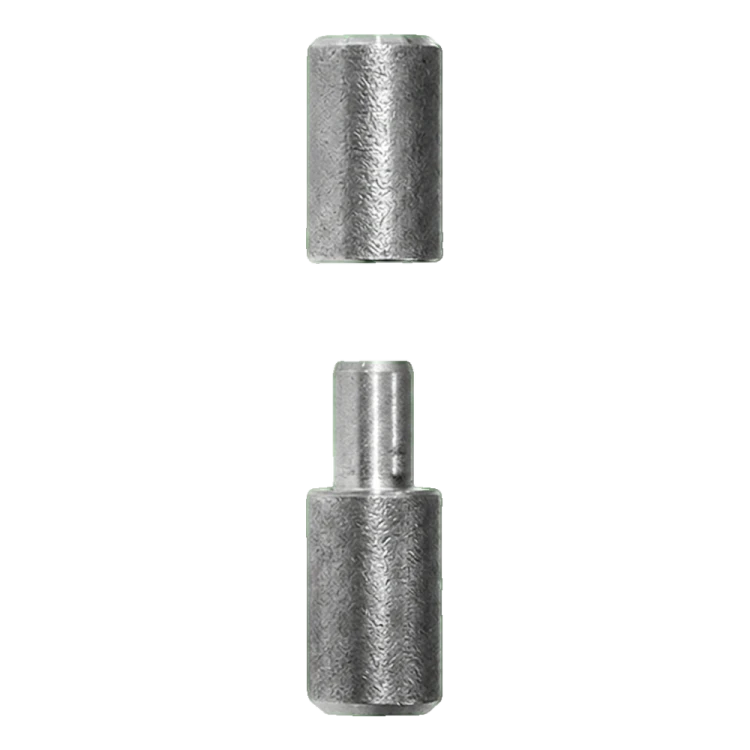

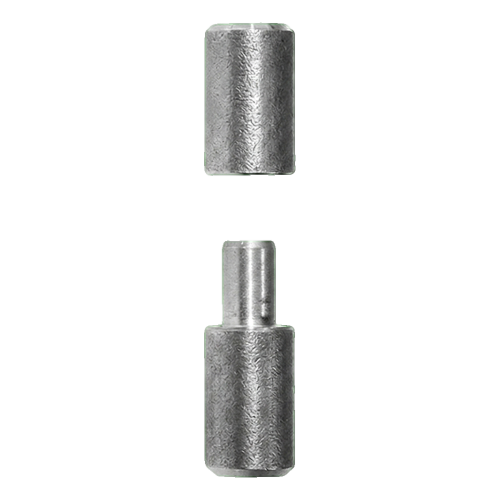

PSG turned gate hinge ø 30×120 mm steel for welding
Leave feedback on the product
PSG turned gate hinge ø 30×120 mm steel for welding. External sleeve diameter 30 mm, pin ø 17 mm length 30 mm. Total height 120 mm, weight 0.645 kg. Easily weldable steel, raw steel colour.
Product code: 001-478
Product features
[PIM] zawiasy #113
- Diameter 30
- Mounting Method Weld-On
- Material Steel
Description
PSG turned gate hinge ø 30×120 mm steel for welding
PSG turned hinge ø 30×120 mm is a durable gate hardware component designed for mounting swing gates and garden gates. Both hinge parts — sleeve and pin — are adapted for welding, ensuring permanent and inseparable connection to the post and gate leaf. Made from high-quality steel, the hinge features easy weldability and resistance to atmospheric conditions, making it suitable for external applications for many years.
Precision turning guarantees smooth hinge operation without the need for additional sleeves or washers. During installation, the highest precision in axis alignment must be maintained to ensure proper gate opening and closing.

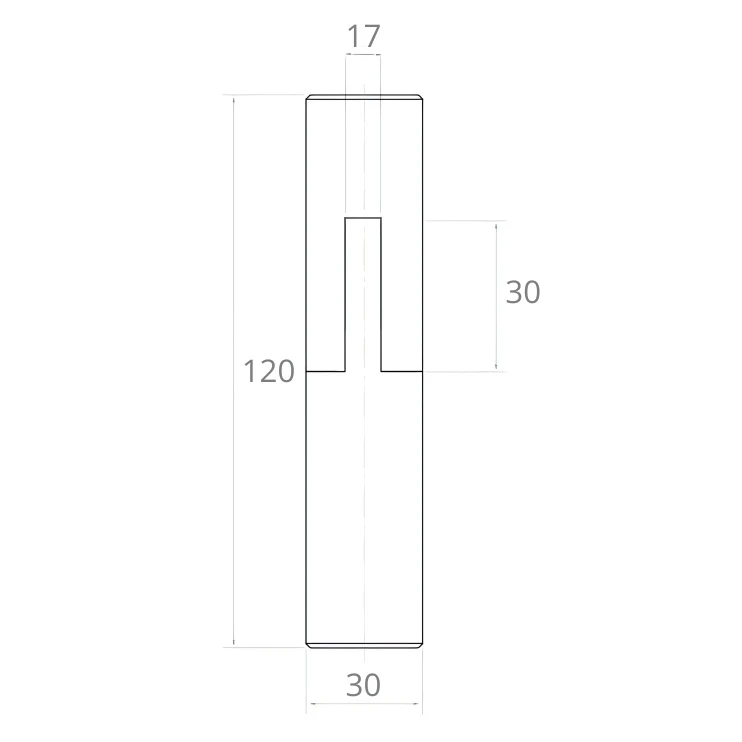

Dimensions and technical parameters
- Total hinge height: 120 mm
- External diameter (sleeve): 30 mm
- Pin diameter: 17 mm
- Pin length: 30 mm
- Material: steel (easily weldable)
- Weight: 0.645 kg
- Colour: steel / raw
- EAN: 5901289676786
Application and features
- Designed for swing gates and garden gates
- Installation by welding both parts — to post and gate leaf
- Made from high-quality steel resistant to atmospheric conditions
- Easily weldable — requires no special surface preparation
- Precision turning ensures smooth operation of the hinge
