PSG toothed rack for sliding gate 3×333 mm with steel core – up to 800 kg
Description
PSG toothed rack for sliding gate 3×333 mm with steel core – up to 800 kg
PSG toothed rack made from plastic with steel core is a reliable solution for driving self-supporting sliding gates weighing up to 800 kg. The plastic coating over the steel core ensures quiet and smooth operation, which is particularly important in residential installations and facilities requiring low noise levels.
The set contains three sections of rack, each 333 mm long, connected together using interlocking joints — this allows you to quickly achieve a continuous toothed line with a total length of 999 mm. The set also includes self-drilling screws with washers, enabling quick installation without the need to drill holes. Each rack section is equipped with two mounting brackets, ensuring secure and simple attachment to the gate wing.
Wide compatibility
The rack works with tooth module M4 and is compatible with gate operators from leading manufacturers: FAAC, CAME, NICE, BFT, BENINCA and other drives equipped with module 4 pinions. This means you can use it in most installations, regardless of the chosen automation system.
Technical parameters
- Manufacturer: PSG
- Material: plastic with steel core
- Maximum gate load: 800 kg
- Tooth module: M4
- Number of sections in set: 3 pcs
- Length of single section: 333 mm
- Rack width: 20 mm
- Distance between mounting points: 237 mm
- Mounting brackets per section: 2 pcs
- Section connection: interlocking system
- Included: self-drilling screws with washers
- Set weight: 1.35 kg
- EAN: 5901289675161
Set contents

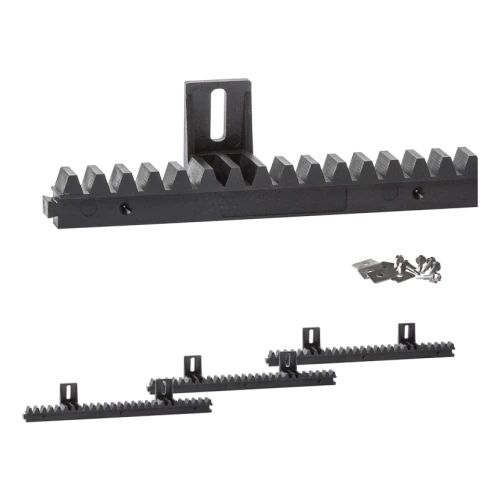

- 3 toothed rack sections 333 × 20 mm with mounting brackets
- Complete set of self-drilling screws with washers
Technical data
| Material | Steel |
