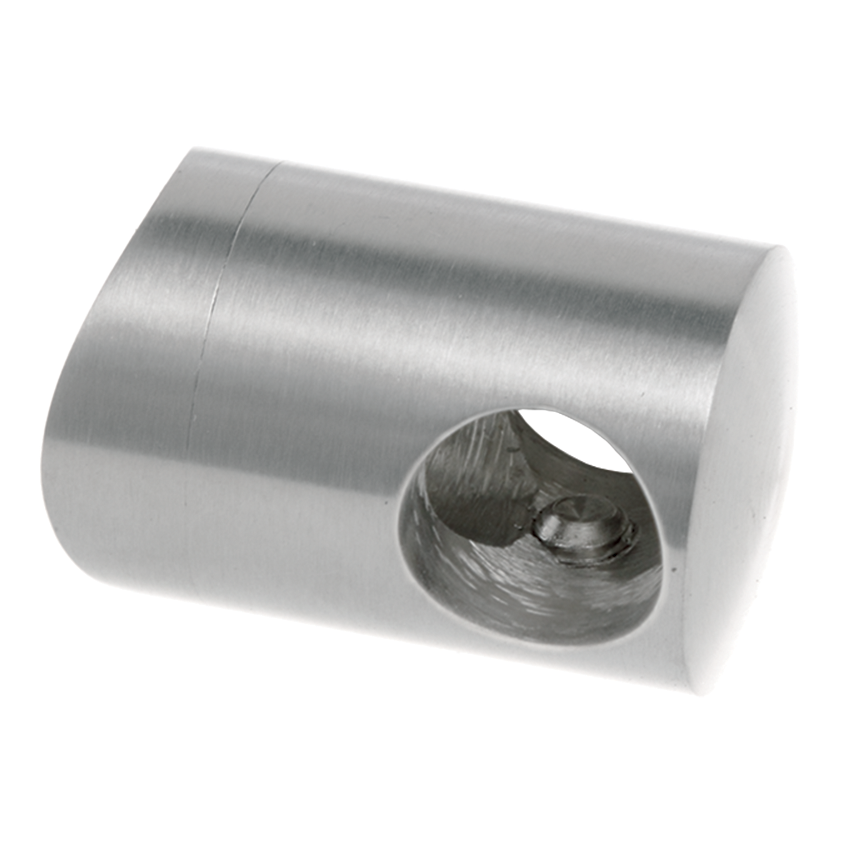

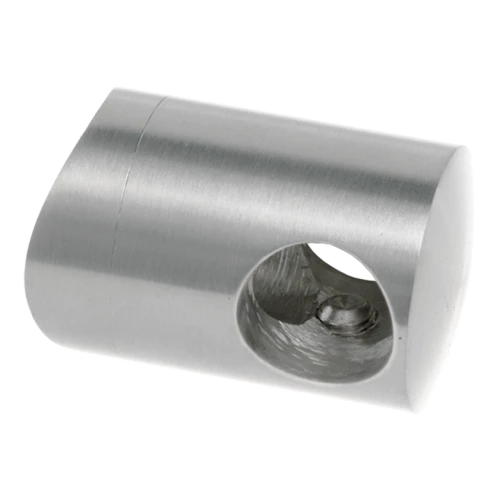

PSG through-type balustrade bracket for rod Ø 14 mm – tube 42.4 mm AISI 304 satin
Description
PSG through-type balustrade bracket for rod Ø 14 mm – tube 42.4 mm AISI 304 satin
Through-type bracket for rod Ø 14 mm from PSG is a precisely manufactured connecting element for infill and posts of stainless steel balustrades. Mounted directly to the load-bearing tube with diameter 42.4 mm, it ensures stable and aesthetically pleasing guidance of horizontal or vertical rods in balustrade constructions.
Thanks to its construction from AISI 304 stainless steel, the bracket is resistant to corrosion and atmospheric conditions, allowing its use both inside and outside buildings. The satin surface finish gives the product a modern, elegant appearance, consistent with other elements of stainless steel balustrade systems.
The through-type construction of the bracket allows free passage of the rod or thin tube through the body of the element, which significantly speeds up installation and facilitates precise positioning of balustrade infills. Compact dimensions and low self-weight ensure that the bracket does not visually burden the construction, maintaining the light, minimalist character of the balustrade.

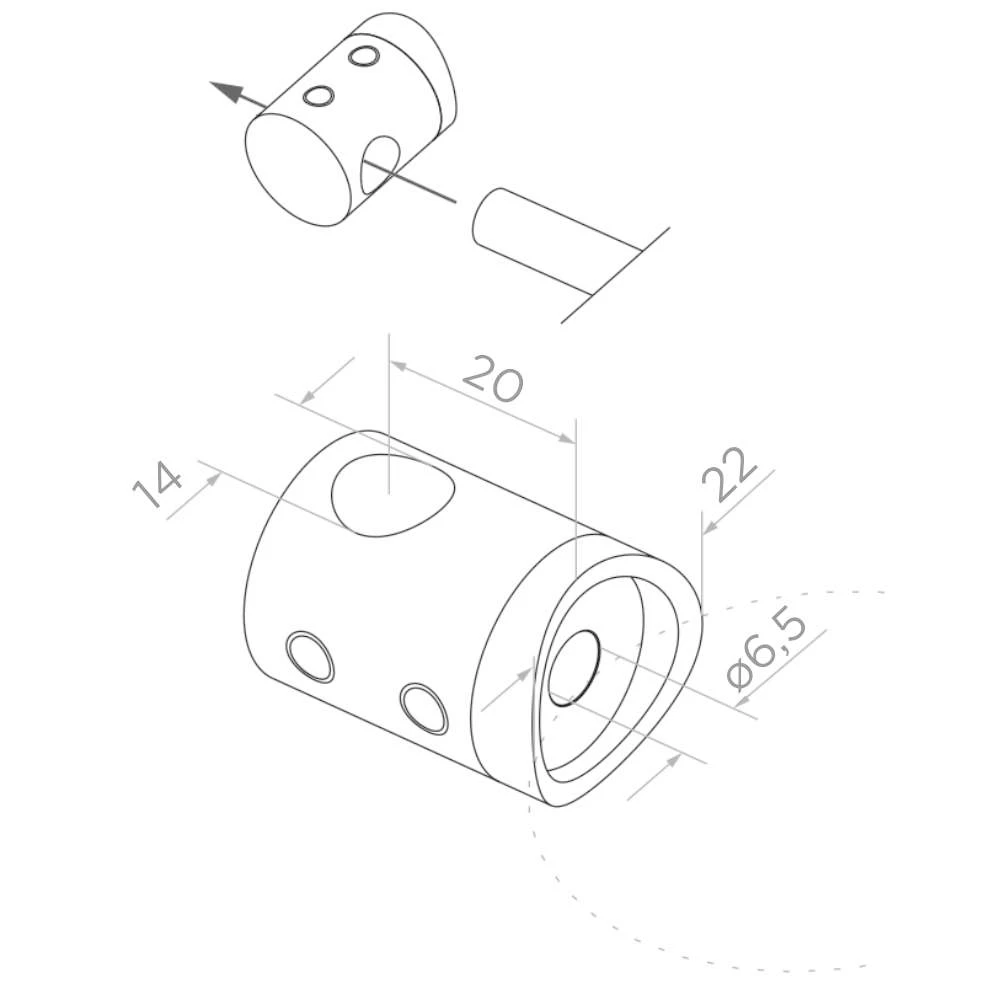

Technical specification
- Type: through-type bracket for rod/tube
- Rod diameter: Ø 14 mm
- Mounting to tube: Ø 42.4 mm
- System: 42.4
- Material: stainless steel AISI 304
- Surface finish: satin
- Weight: 0.05 kg
- EAN: 5901289671262
Application
The bracket is intended for stainless steel balustrade systems based on load-bearing tube Ø 42.4 mm with rod infill Ø 14 mm. It works perfectly in stair balustrades, balcony balustrades, terrace balustrades as well as ramps and landings. Compatible with other elements of the PSG balustrade system with diameter 42.4 mm.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
