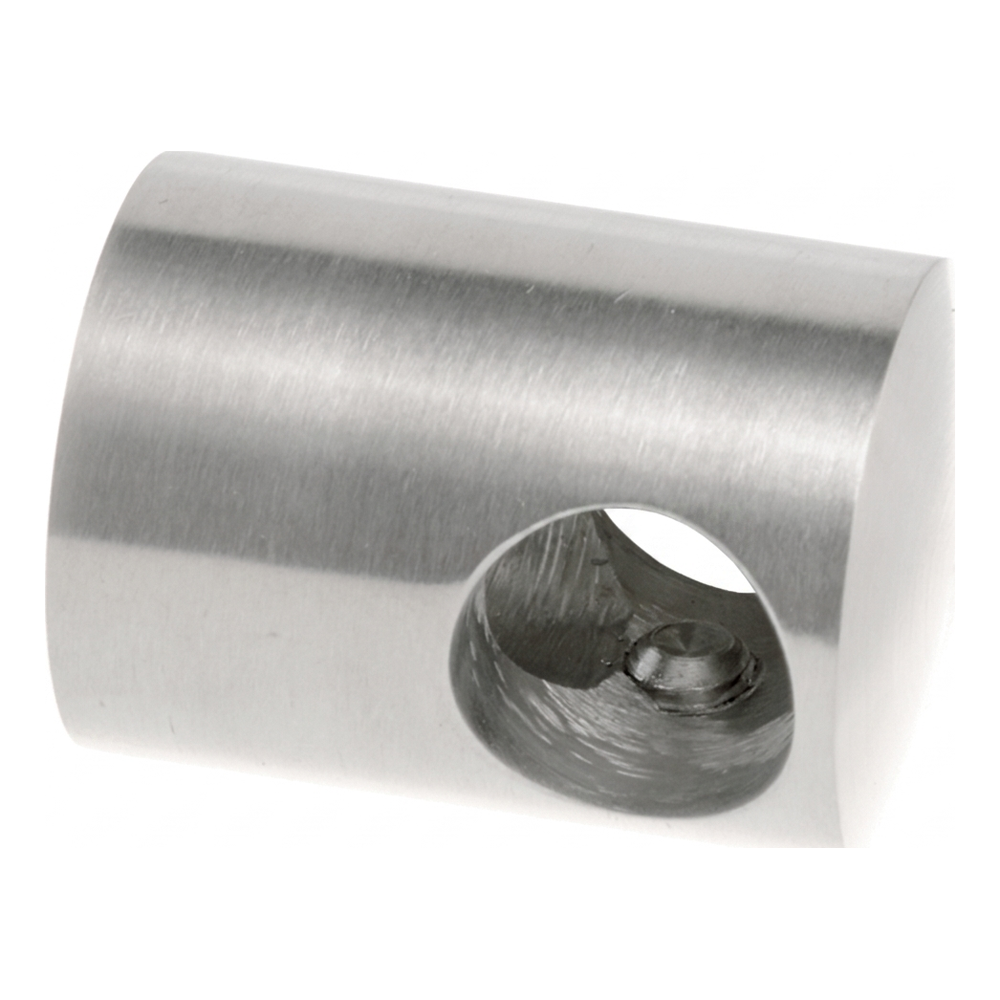

PSG through-rod balustrade holder for ø 10 mm rod – AISI 304 satin, surface mounting
Description
PSG through-rod balustrade holder for ø 10 mm rod – AISI 304 satin, surface mounting
Through-rod holder for ø 10 mm rod by PSG is a compact balustrade component designed for mounting rods or tubes with a diameter of 10 mm directly to flat surfaces. Made from AISI 304 stainless steel with a satin finish, it performs excellently in flat balustrade systems — on balconies, staircases and terraces. Thanks to its compact dimensions and simple construction, installation is quick and requires no specialist tools.
Dimensions and construction

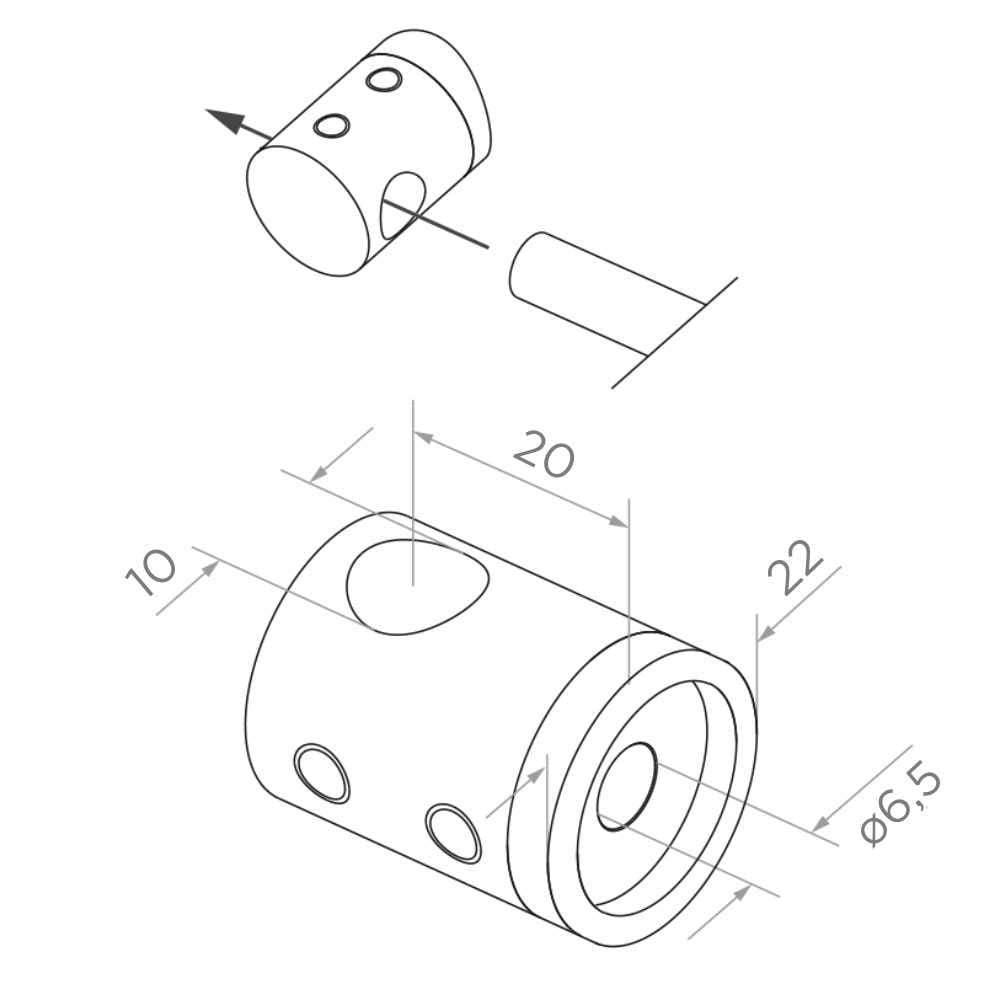

The holder body has a cylindrical shape with a transverse through-hole for the rod. The mounting hole in the centre of the component allows the holder to be screwed to a flat surface (e.g. post, profile). The mounting view in the technical drawing shows the intuitive method of inserting the rod into the holder.
- External body diameter: 22 mm
- Distance of rod hole axis from base: 20 mm
- Through-hole diameter for rod: 10 mm
- Mounting hole diameter: ø 6.5 mm
- Mounting system: flat (surface mounting)
- Mounting method: screwed
Material and finish
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 0.055 kg
- EAN: 5901289671194
AISI 304 stainless steel guarantees high corrosion resistance — the holder is suitable for both internal and external applications. The satin surface finish provides an aesthetic, understated appearance that is consistent with other components of brushed steel balustrade systems.
Application
The holder is designed for mounting rod infill in balustrades — it performs perfectly in systems with horizontal or vertical rods with a diameter of 10 mm. Mounted directly to the flat surface of a post or profile, it provides a solid and aesthetic solution for professional installation companies carrying out stainless steel balustrade projects.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
