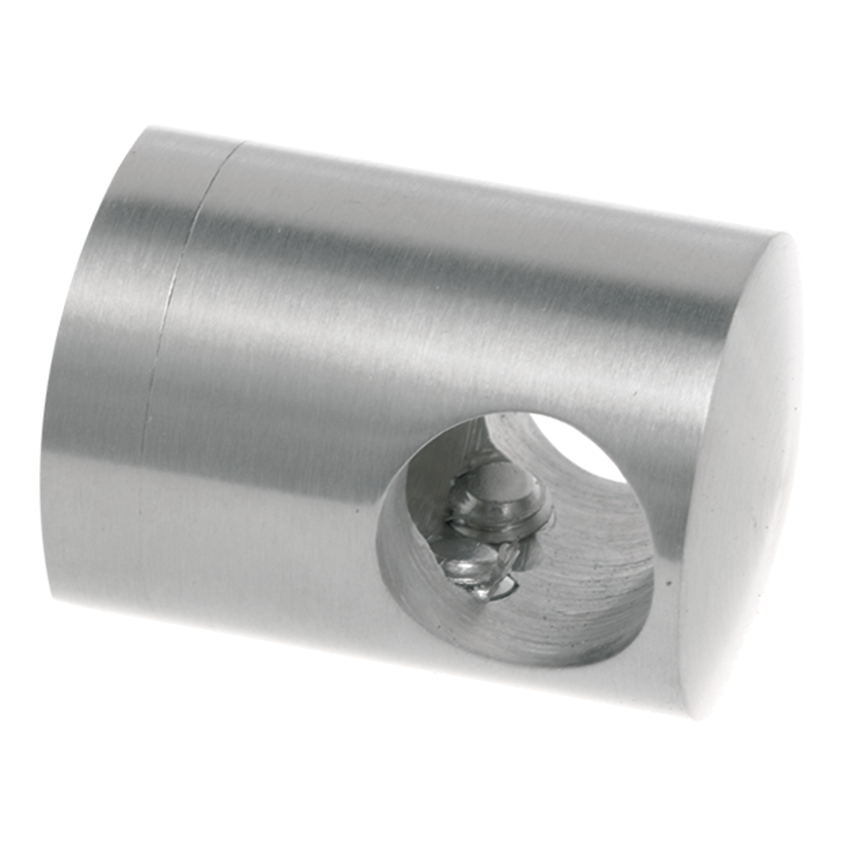

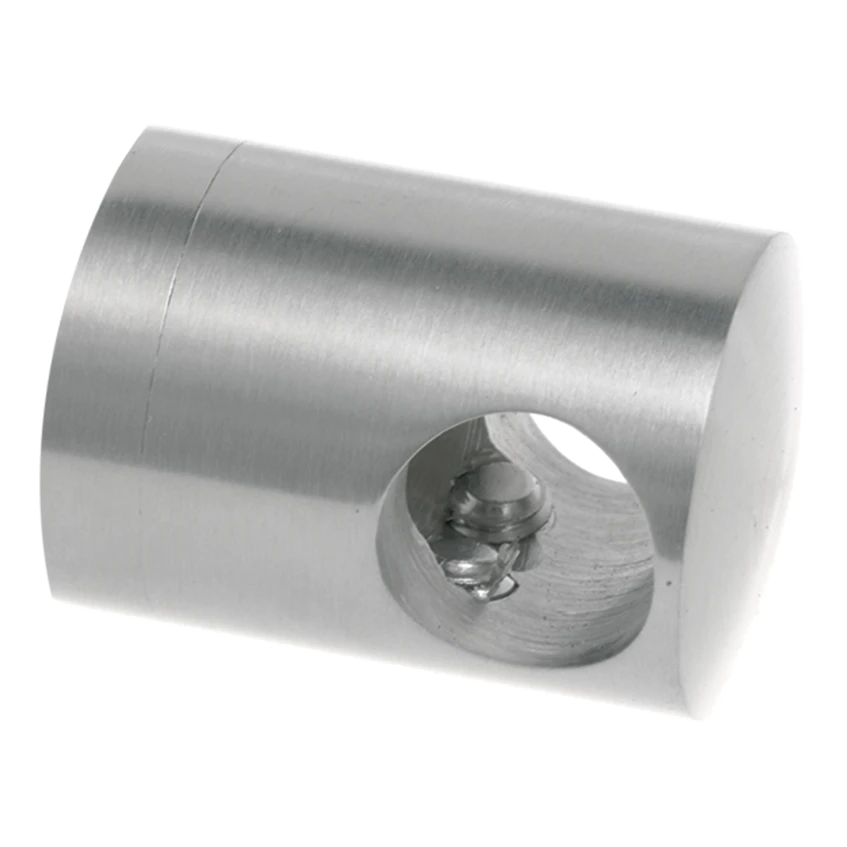

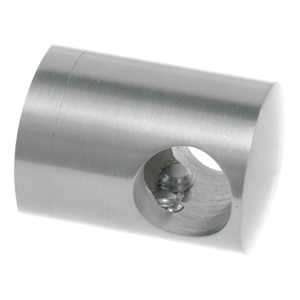

PSG through-passage balustrade bracket for 12mm diameter rod – AISI 304 satin, surface mounting
Description
PSG through-passage balustrade bracket for 12mm diameter rod – AISI 304 satin, surface mounting
Through-passage bracket for rod or tube with 12mm diameter, designed for mounting on flat surfaces. Thanks to its compact, cylindrical construction made from AISI 304 stainless steel with satin finish, this component perfectly complements modern balustrade systems and glass-metal infills. The bracket ensures stability and required rigidity of the entire structure — the rod passes completely through the body, guaranteeing secure and durable connection.
The through-passage design of the bracket allows for quick installation of balustrade infills — simply thread the rod through the opening and secure with the clamping screw. This solution reduces installation time for fitting teams and eliminates the need for additional connectors.

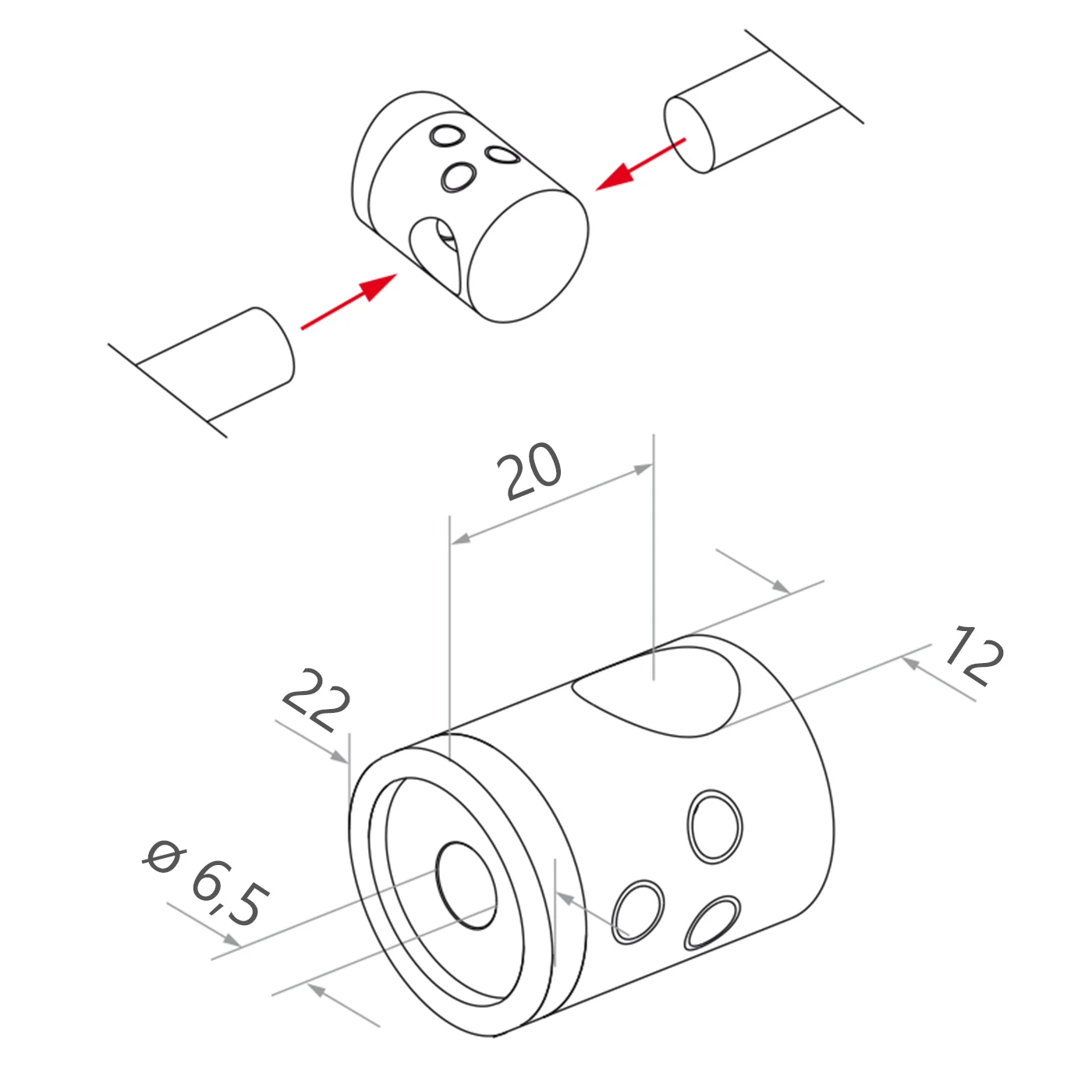

Dimensions and technical parameters
- External body diameter: 22mm
- Through-hole diameter (for rod/tube): 12mm diameter
- Distance from front to through-hole axis: 20mm
- Mounting hole diameter (axial): 6.5mm diameter
- Material: AISI 304 stainless steel
- Surface finish: satin
- Mounting system: surface (to flat surface)
- Weight: 0.054kg
- EAN: 5901289671453
Application and mounting
The through-passage bracket is designed for balustrade systems with rod or tube infill. It is mounted directly to flat surfaces — posts, profiles or sheet metal — using the axial hole 6.5mm diameter. The rod with 12mm diameter passes through the transverse hole, ensuring even load distribution and eliminating play. AISI 304 stainless steel guarantees high corrosion resistance, making this component suitable for both internal and external applications.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
