PSG through handrail holder for 12 mm rod – 42.4 mm tube AISI 316 satin
Description

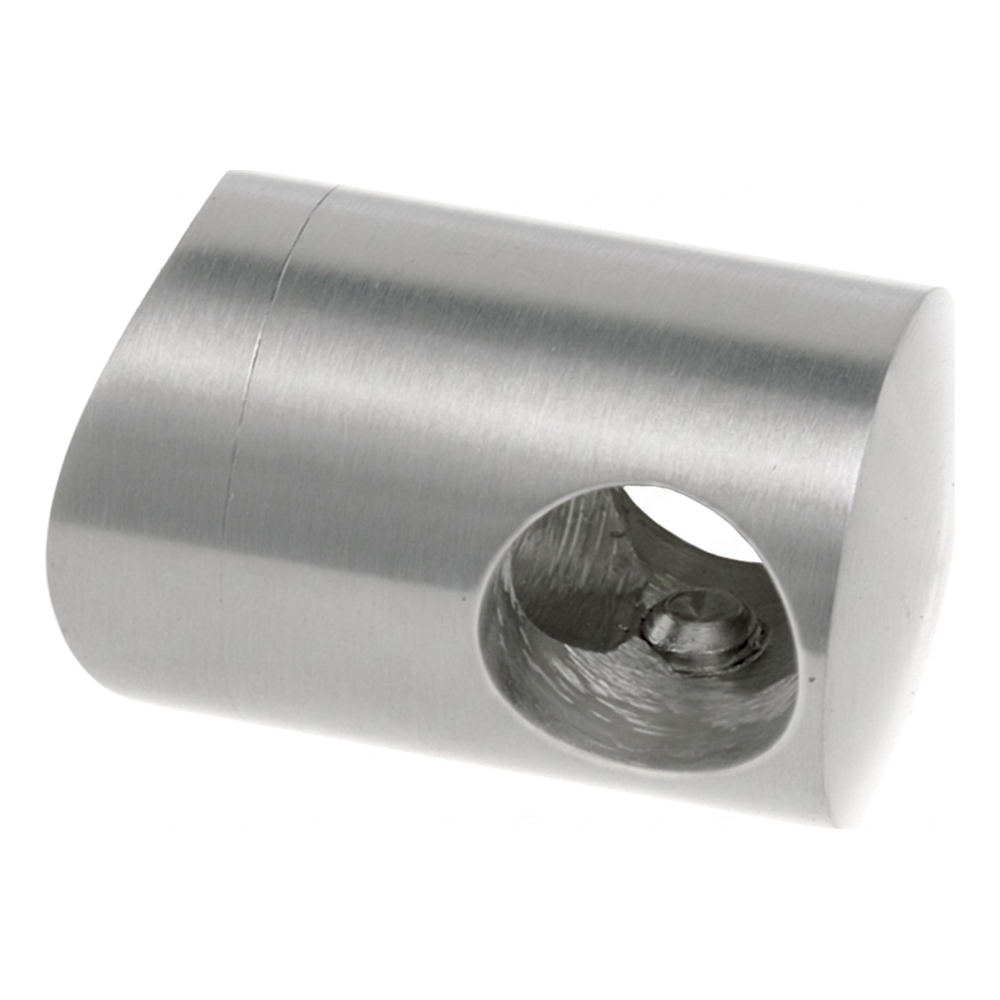

PSG through handrail holder for 12 mm rod – 42.4 mm tube AISI 316 satin
Through holder for 12 mm rod, designed for mounting on tubes with diameter 42.4 mm. Connecting element for stainless steel balustrade infill with post — the rod passes through the holder completely, ensuring rigid and aesthetic connection of the entire structure.
The holder is made of stainless steel AISI 316 with satin finish. Grade 316 guarantees enhanced corrosion resistance — including resistance to chlorides — making this element suitable for both indoor and outdoor use, including marine environments.
Compact, cylindrical form with precisely machined through hole facilitates installation and ensures aesthetic, minimalist appearance. Internal clamping screw enables secure rod fixing without the need for welding.

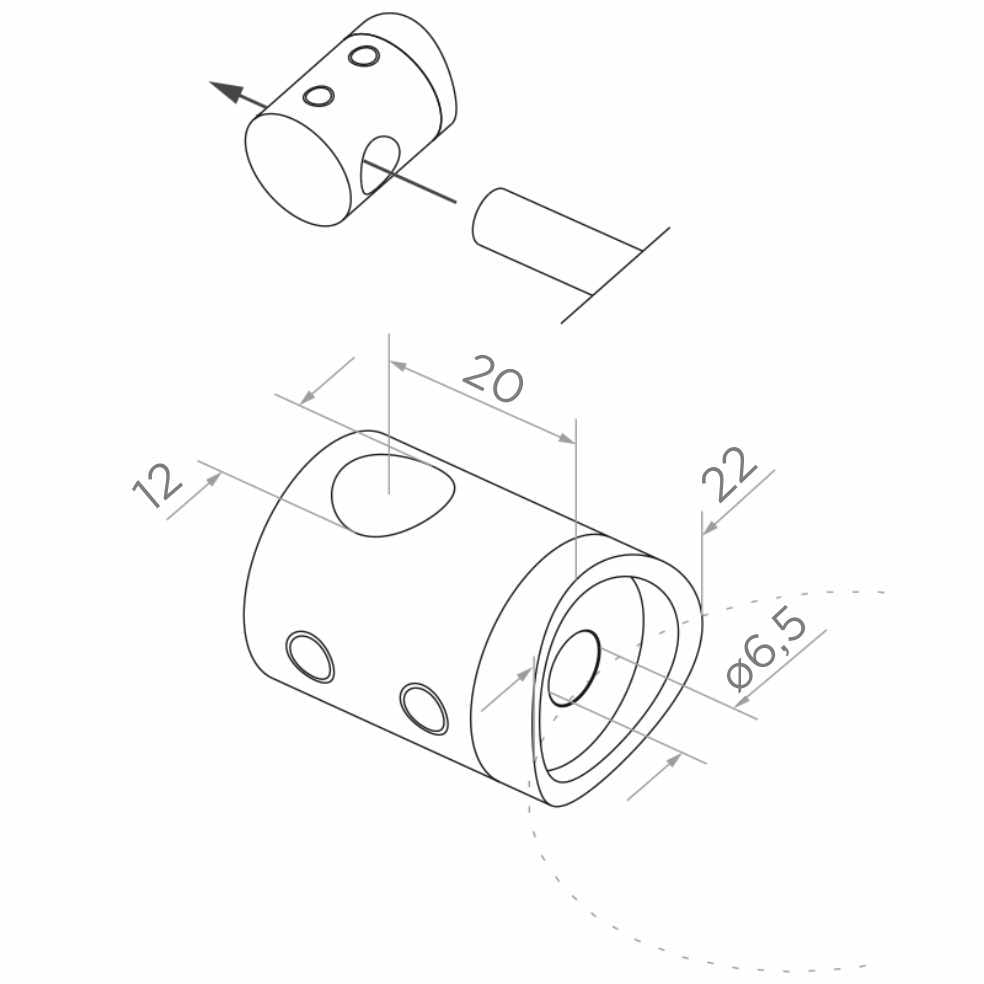

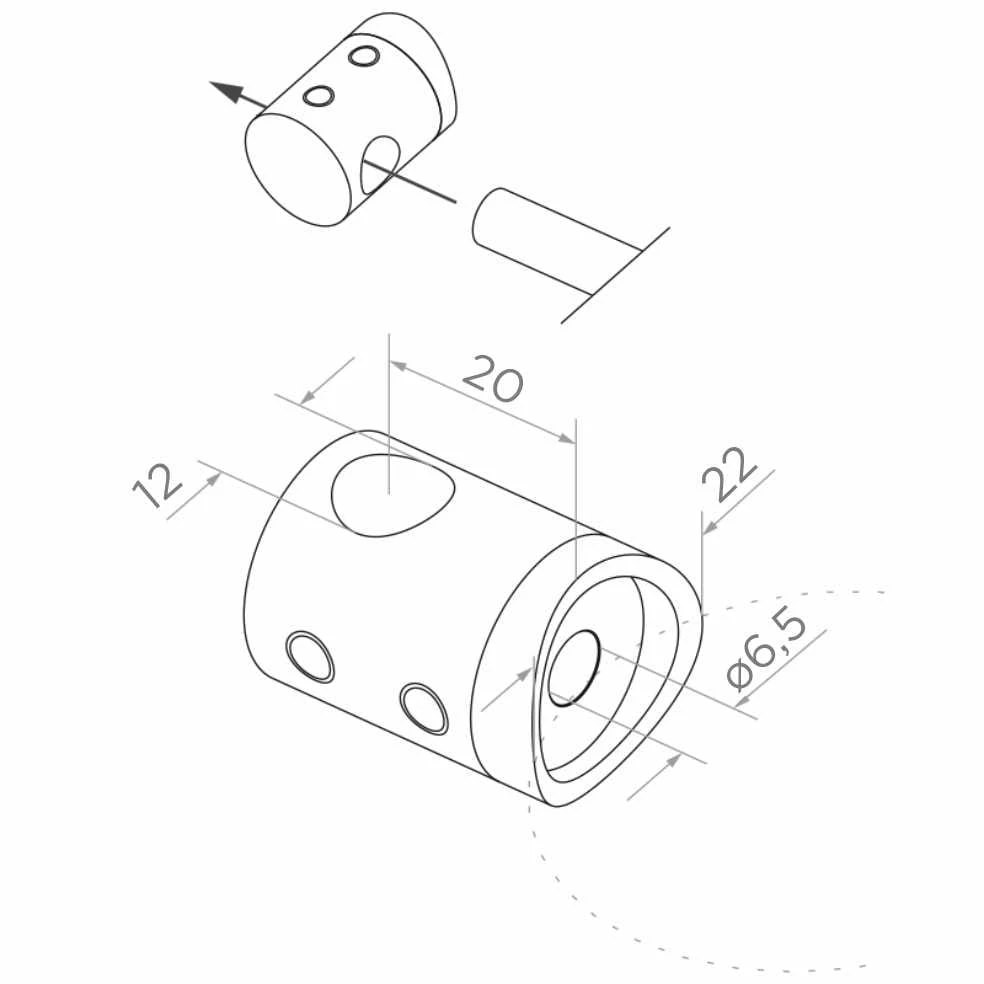

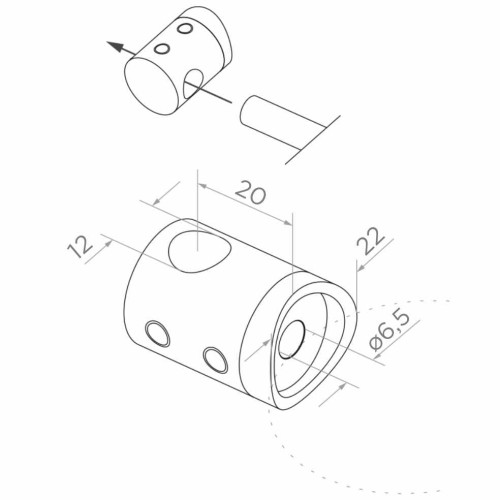

Dimensions and technical data
- Rod hole diameter: 12 mm (through)
- External body diameter: 22 mm
- Hole axis distance from base: 20 mm
- Mounting hole diameter (clamping screw): ø 6.5 mm
- Designed for tube: ø 42.4 mm
- Material: stainless steel AISI 316
- Finish: satin
- System: 42.4
- Weight: 0.05 kg
- EAN: 5901289671248
Application
The holder is designed for stainless steel balustrade systems based on ø 42.4 mm load-bearing tube with ø 12 mm rod infill. Mounted on posts, it connects horizontal or vertical rods forming the balustrade infill, giving the structure solidity and cohesive appearance. Ideal for stair, balcony, terrace and parapet balustrades.
Technical data
| Material | AISI 316 |
| Finish | Satin |
| Mounting System | 42.4 mm |
