PSG through handrail bracket for 16mm rod – 42.4mm tube, AISI 304 satin
Description

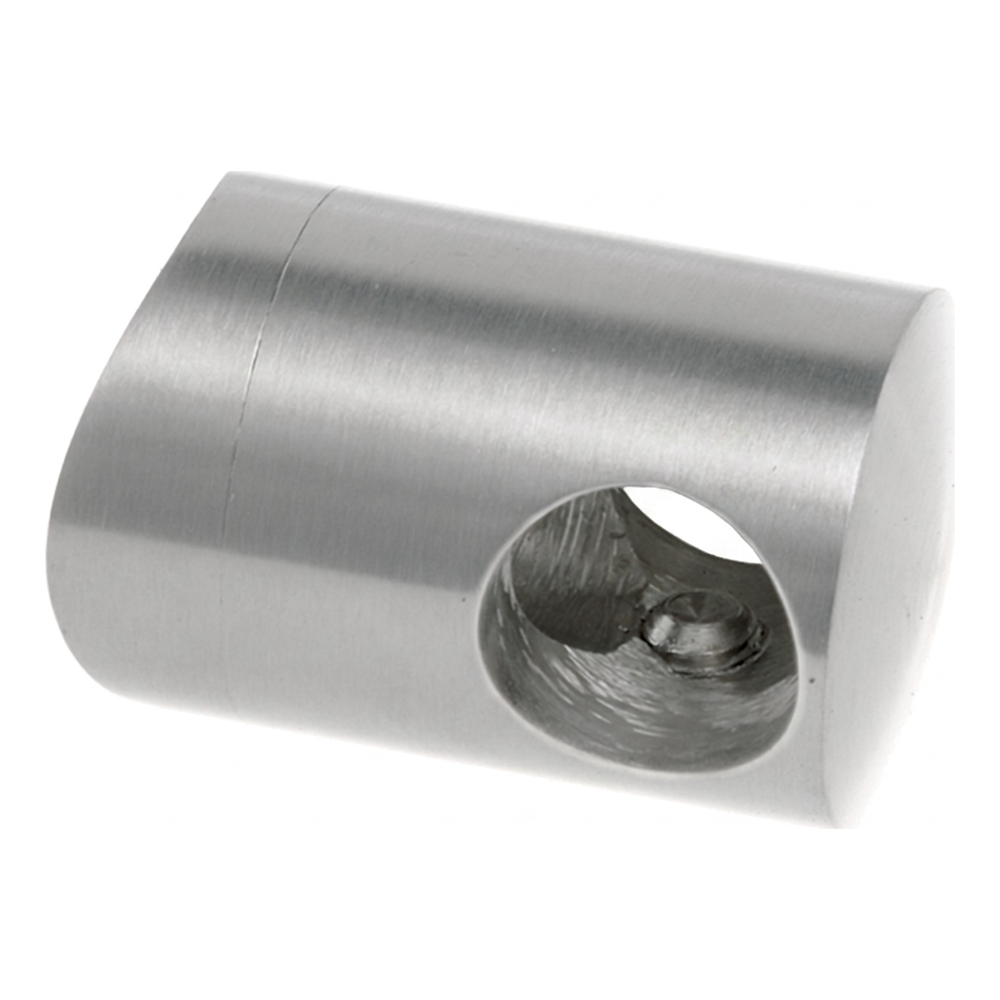

PSG through handrail bracket for 16mm rod – 42.4mm tube, AISI 304 satin
Through bracket for 16mm rod designed for construction of stainless steel balustrades. The component connects infill rods to the balustrade post with tube diameter 42.4mm, providing the structure with rigidity and an aesthetic, cohesive appearance. The satin finish harmoniously complements other elements of the 42.4mm balustrade system.
The bracket is mounted directly onto the post — the balustrade rod passes through the through hole with diameter 16mm, and the whole assembly is secured with compression screws hidden in the body. This makes installation quick, and the connection stable and durable.

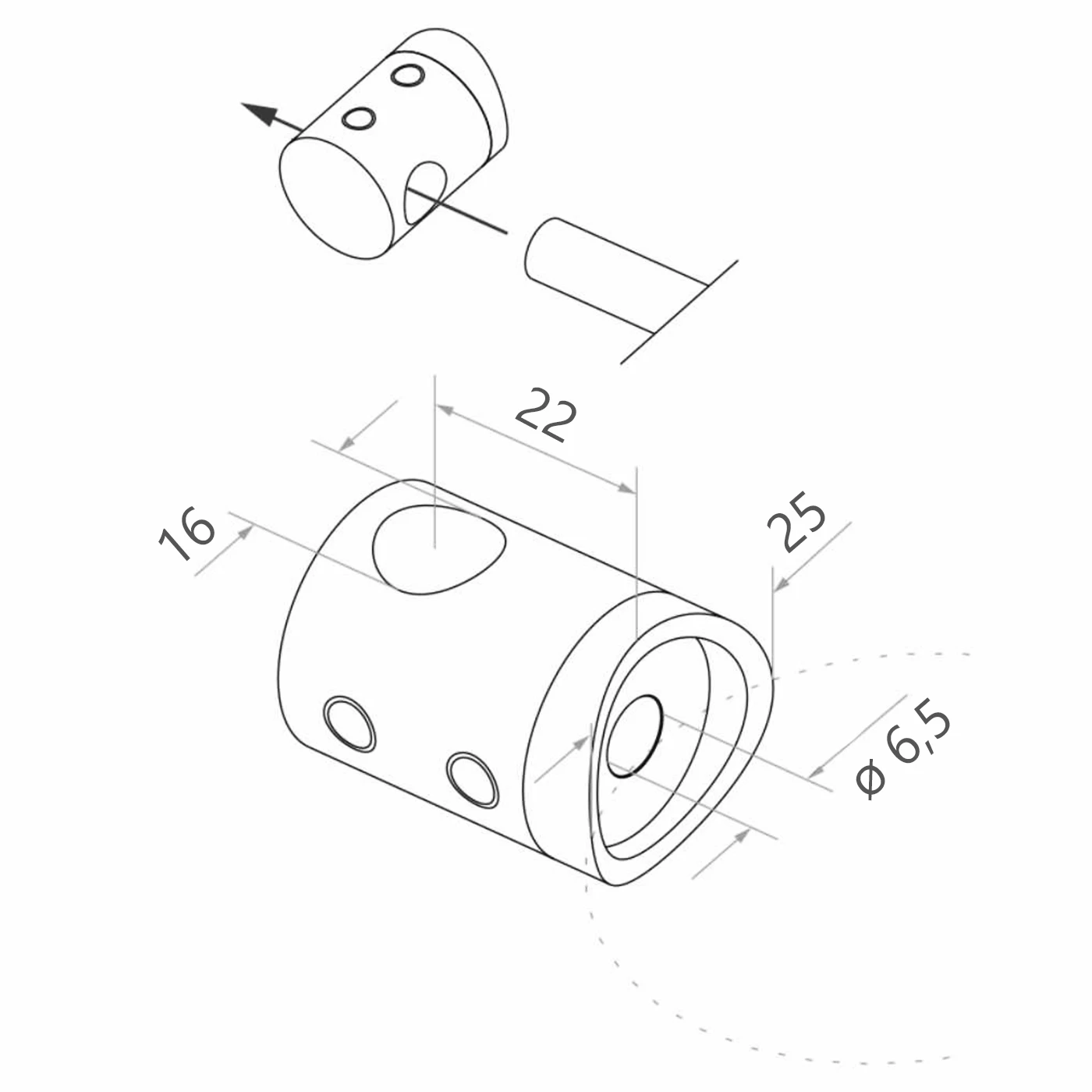

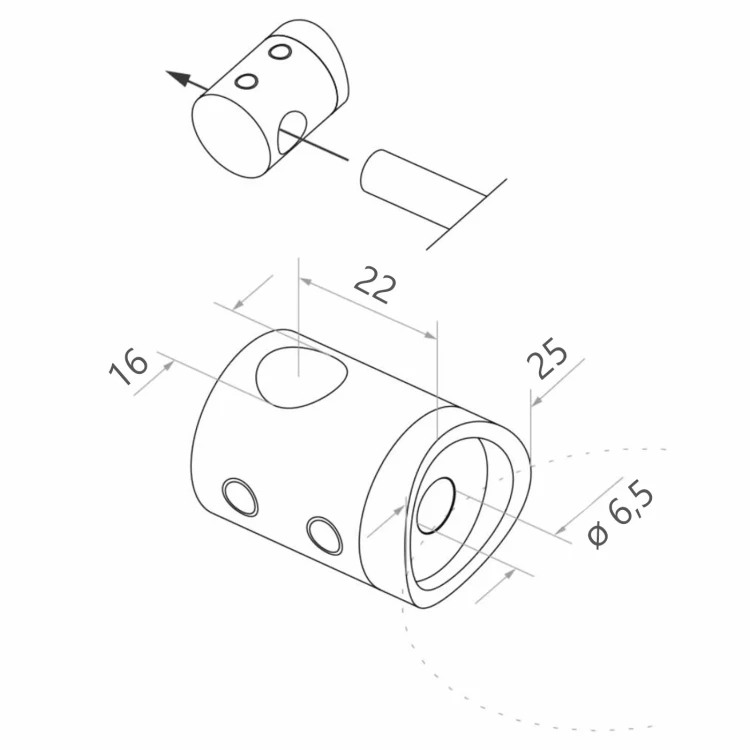

Dimensions and technical data
- Through hole diameter (for rod): 16mm diameter
- External body diameter: 25mm
- Distance of hole axis from mounting base: 22mm
- Mounting hole diameter: 6.5mm diameter
- Compatibility with post tube: 42.4mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 0.08kg
- System: 42.4mm
- EAN: 5901289671309
AISI 304 stainless steel ensures high corrosion resistance, allowing the bracket to be used both inside buildings and outdoors — on balconies, terraces or staircases. The satin finish is resistant to fingerprints and easy to keep clean, resulting in lower maintenance costs for the investor.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
