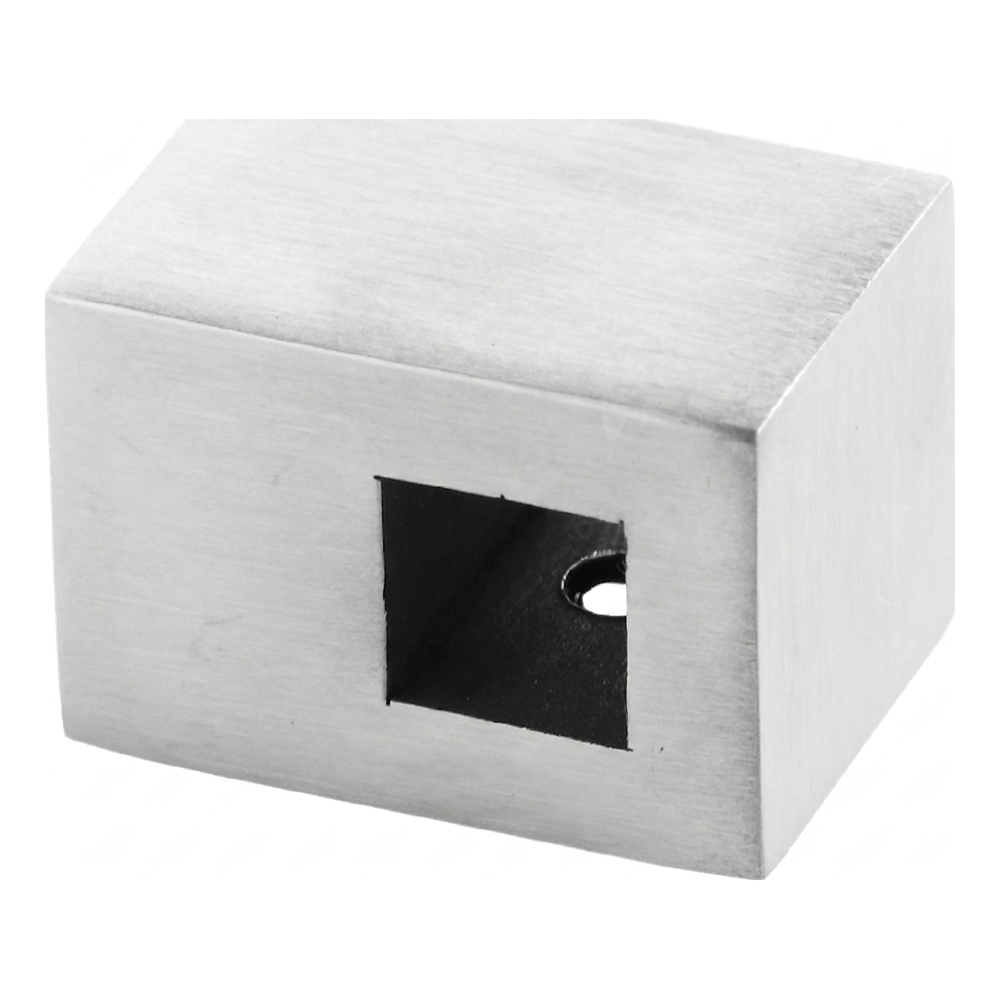

PSG through-fixing balustrade bracket for square rod 12×12 mm – stainless steel AISI 304 satin
Description
PSG through-fixing balustrade bracket for square rod 12×12 mm – stainless steel AISI 304 satin
Square through-fixing bracket for rod or profile 12×12 mm designed for construction and installation of stainless steel balustrade structures. Enables secure connection of rods forming the balustrade infill to the post, giving the entire structure rigidity and stability. Made from stainless steel AISI 304 with satin finish — ensures aesthetic, uniform appearance and high corrosion resistance.
The bracket is mounted to the surface (flat system) — two mounting holes on the top surface enable quick and stable fixing to the balustrade post. The through-fixing construction allows the square rod to pass through the bracket, which significantly facilitates infill installation and reduces installation time on site.

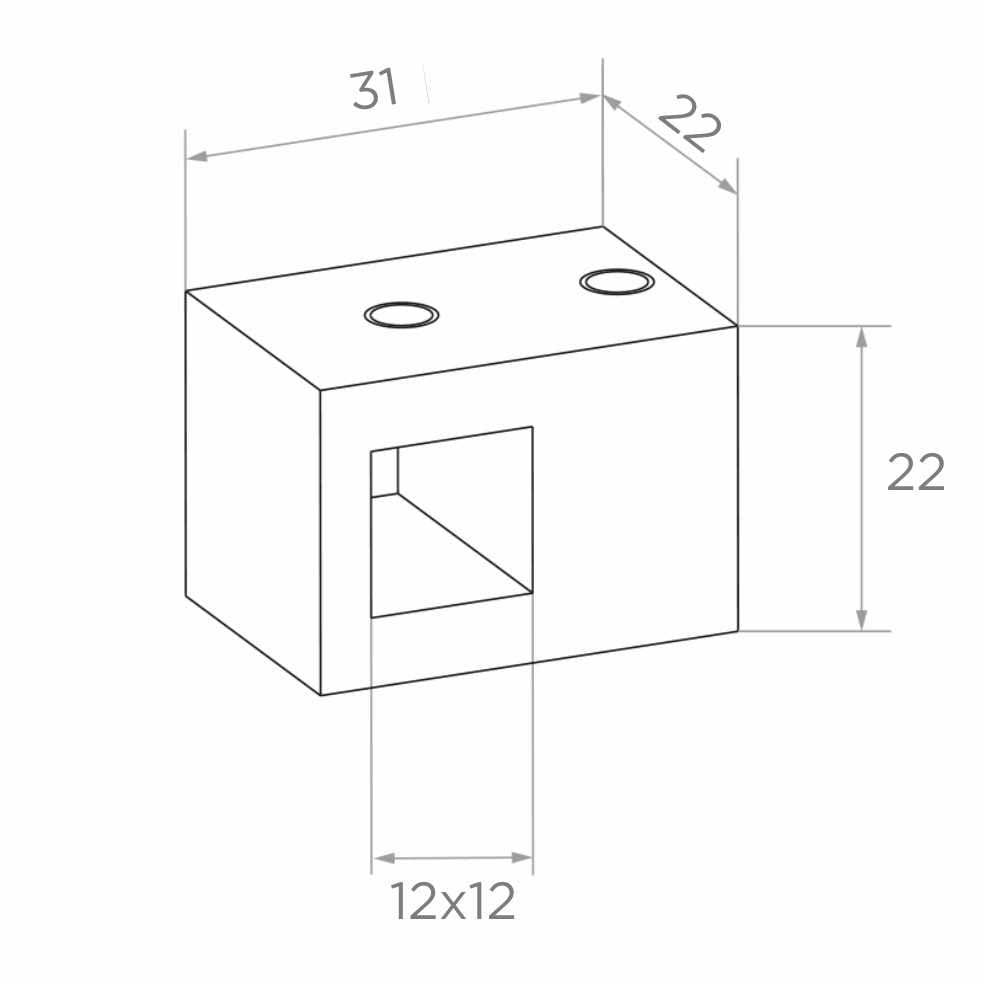

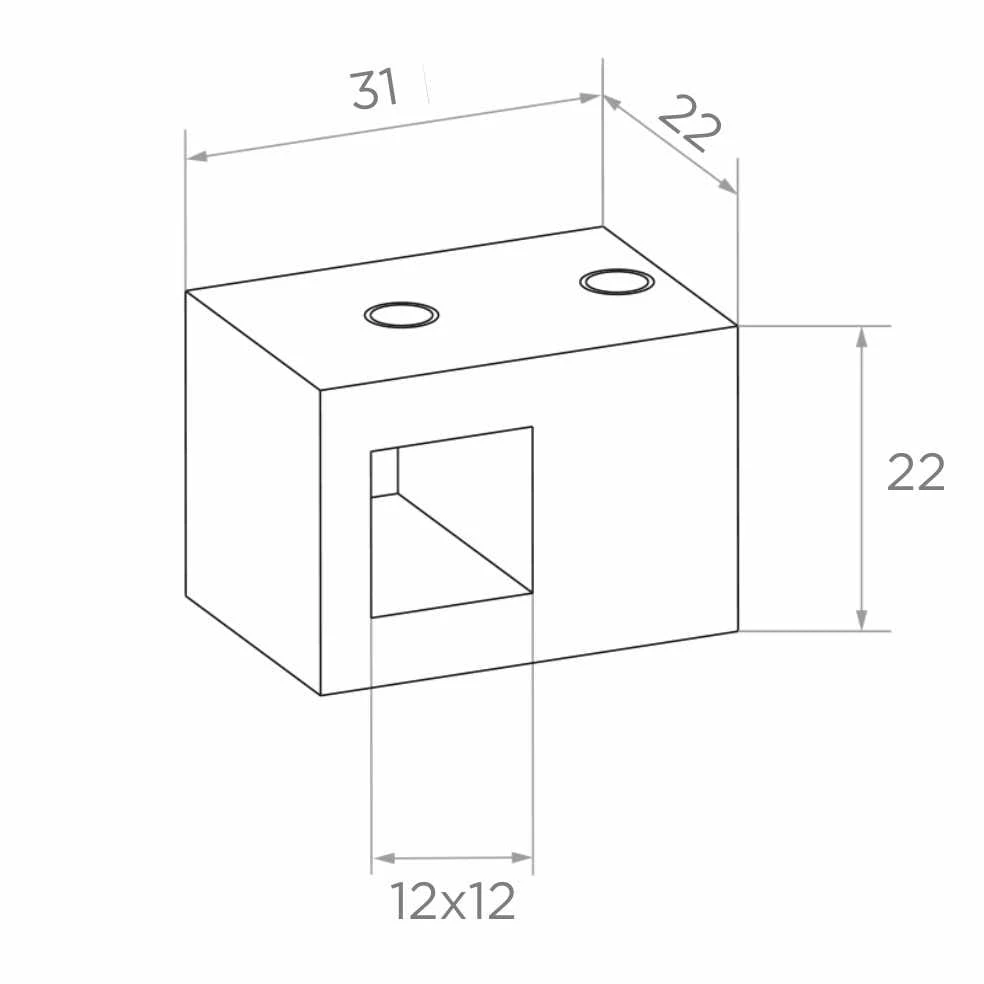

Dimensions and technical specification
- Type: through-fixing bracket for square rod/profile, surface mounting (flat system)
- Through hole: 12×12 mm
- Overall dimensions: 31×22×22 mm (width × depth × height)
- Material: stainless steel AISI 304
- Surface finish: satin
- Mounting holes: 2 pcs on top surface
- Weight: 0.1 kg
- Manufacturer: PSG
- EAN: 5901289671477
Application
The bracket is designed for professional installation of stainless steel balustrades — connecting infill rods with square cross-section 12×12 mm to balustrade posts. Thanks to the through-fixing construction, the rod passes completely through the bracket, ensuring continuity of the infill line and aesthetic final effect. Satin finish in stainless steel AISI 304 guarantees durability and resistance to atmospheric conditions — performs perfectly in both internal and external installations.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
